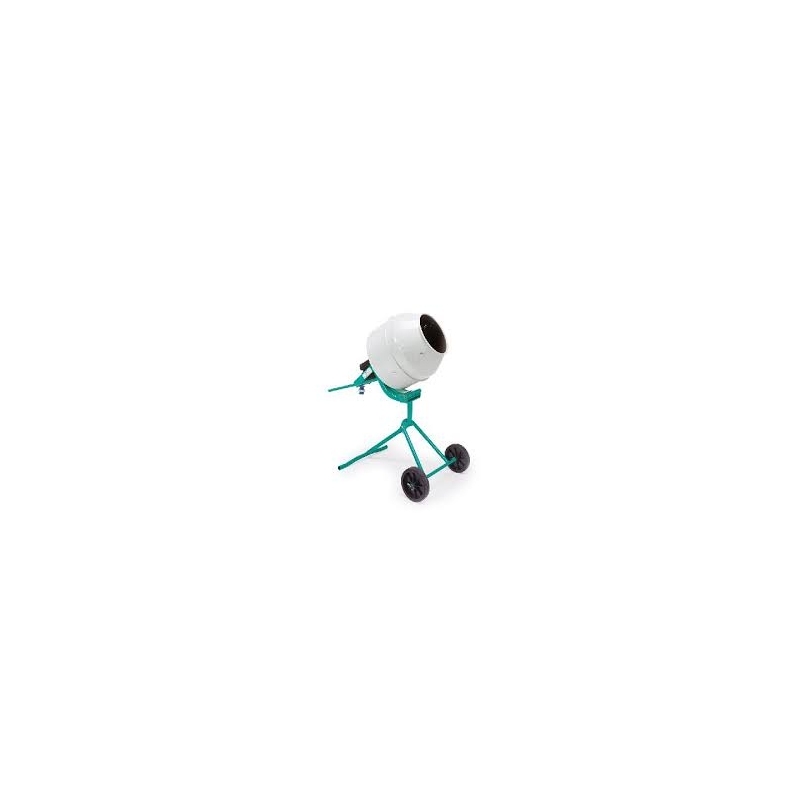

Concrete Mixers Imer Minibeta

Simple and fast assembly. Maximum silence. Ideal for working indoors.
Models:
Minibeta 130
Minibeta 130 2P (HDPE)
Common Characteristics
• Single-phase 230V/50Hz motor
• Gearmotor in die-cast aluminium with gears in oil bath protected by a shatter-resistant plastic housing;
• Available in the versions with steel drum and poly drum (HDPE)
• IP 55 switch with no-volt coil and IP 67 plug
• Electric safety: built to EN 60204-1 double insulation norms, protected against spraying water (IP 55), overload and also against inadvertent starting again after a power failure.
• Steel mixing paddles
• Packing: cardboard
Technical Data
ParameterValue
Drum capacity138  l
Batch output100  l
Drum diameter610  mm
Weight55  kg
Electric motor power rate0.3  kW
Machine dimensions with el. motor L x H x W720 x 1300 x 1430  mm
Noise level63  dB(A)
