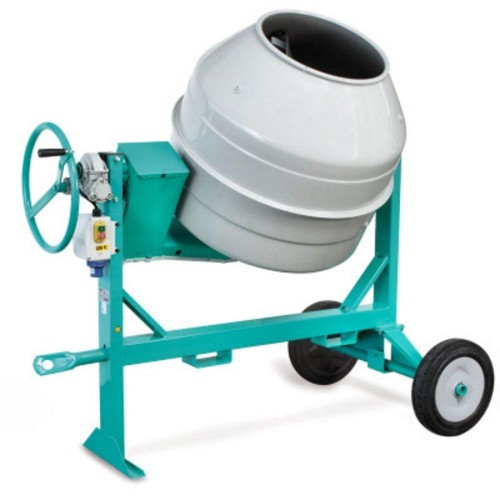

Concrete Mixers Imer Syntesi 350

Syntesi models:
Модели от серията:
Syntesi 140 - motor 230V 50 Hz 0,3 kW
Syntesi 140 HDPE - motor 230V 50 Hz 0,3 kW
Syntesy 160 - motor 230V-50Hz 0,3 kW
Syntesi 190 - motor 230V-50Hz 1 kW
Syntesi 250 - motor 230V-50Hz 1 kW
Syntesi 250 - motor Honda
Syntesi 300 - motor 230V-50Hz 1,4 kW
Syntesi 350 - motor 230V-50Hz 1,4 kW
Syntesi 350 - motor Honda 5,4 кс
Syntesi 350 - diesel motor Yanmar 7.7 h
Common Characteristics
Standard Equipment
Single-phase 230V/50Hz motor (all models) - IP55 switch and no-volt coil
Version with Subaru Robin EX 17DU / SP 170 petrol engine 4.2 kW(Syntesi 190, 250, 350), unleaded petrol feed
Transmission system with high resistance belt and steel gears in oil bath that are maintenance-free
Movement towbar
Technical Data
ParameterValue
Drum capacity345  l
Batch output280  l
Drum diameter823  mm
Rotations24  rpm
Weight175  kg
Electric motor power rate1.4  kW
Petrol engine power4.2  kW
Machine dimensions with el. motor L x H x W930x1610x1600  mm
Machine dimensions with petrol engine L x H x W930x1920x1600  mm

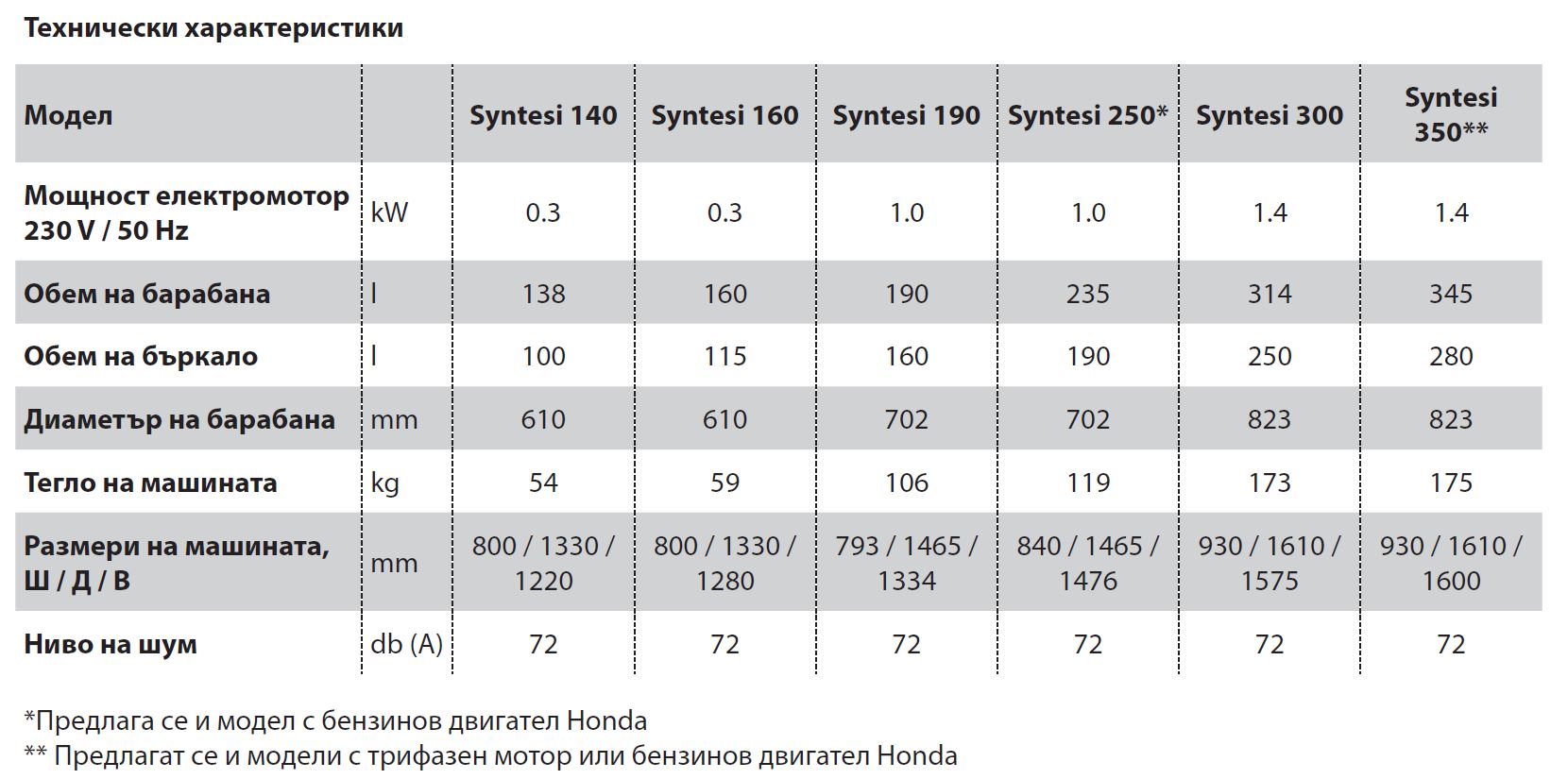

Technical Specifications
