Dr. Schulze drill rigs D-series to use with drill motors
D-160 V
Ultra light weight, compact drill rig with integrated vacuum base, laser positioning guide and d 60 mm clamping for bores up to d 160 mm
• low-maintenance and stable sliding guide system
• continuously inclining up to 45°
• vacuum base incl. vacuum set and leveling screws
• integrated spirit level for precise alignment
• V-support for starting of drilling
• laser drilling center indication
• clamping d 60 mm with quick release system
• incl. tool set
D-250 V
Universally applicable, compact drill rig with roller guide system, integrated vacuum base, laser positioning guide and motor quick release plate for bores up to d 250 mm
• low-maintenance and smooth-running roller guide system
• continuously inclining up to 45°
• vacuum base incl. vacuum set and leveling screws
• two integrated spirit levels for precise alignment
• V-support for starting of drilling
• laser drilling center indication
• motor quick release plate
• incl. tool set
D-350 R
Variable drill rig with roller guide system, stable cast base, transport rollers, laser positioning guide and quick release plate for bores up to d 350 mm
• low-maintenance and smooth-running roller guide system
• continuously inclining up to 45°
• strong cast base with leveling screws
• easy removable transport rollers
• two integrated spirit levels for precise alignment
• V-support for starting of drilling
• laser drilling center indication
• motor quick release plate
• two comfortable carrying handles
• spread screw in the column,s top for quick fastening of the drill rig
• incl. tool set

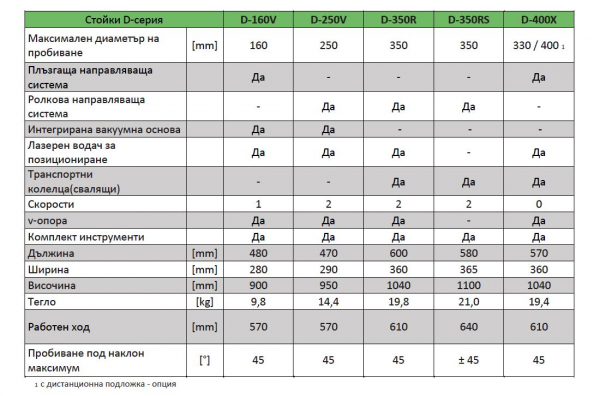

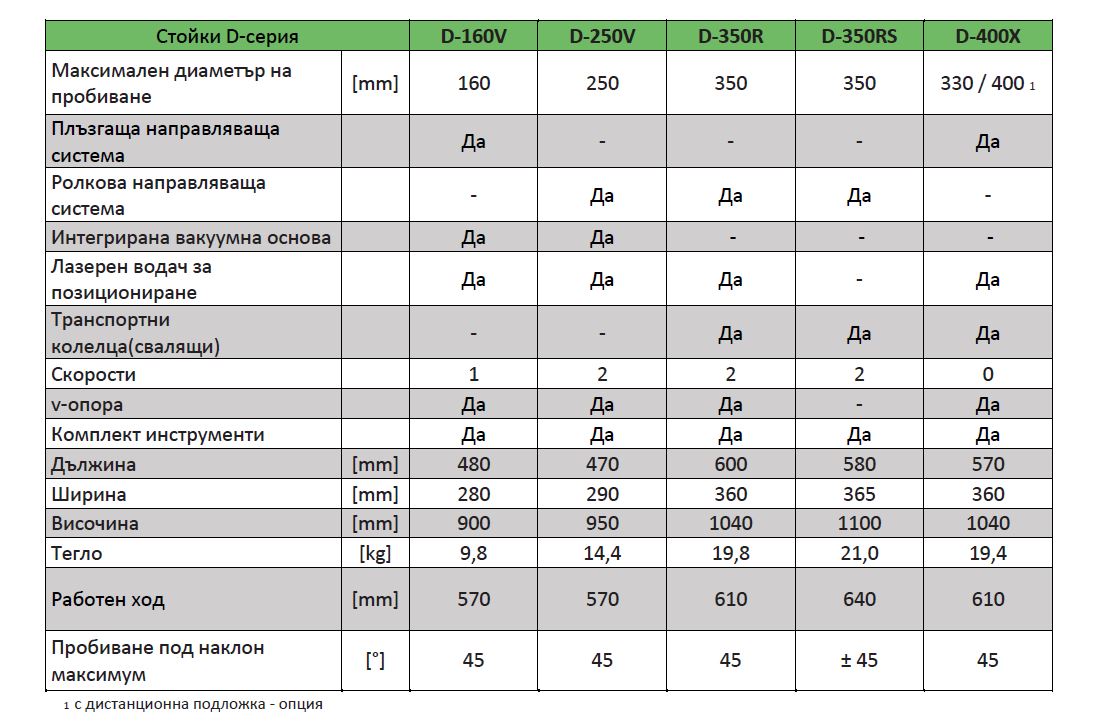

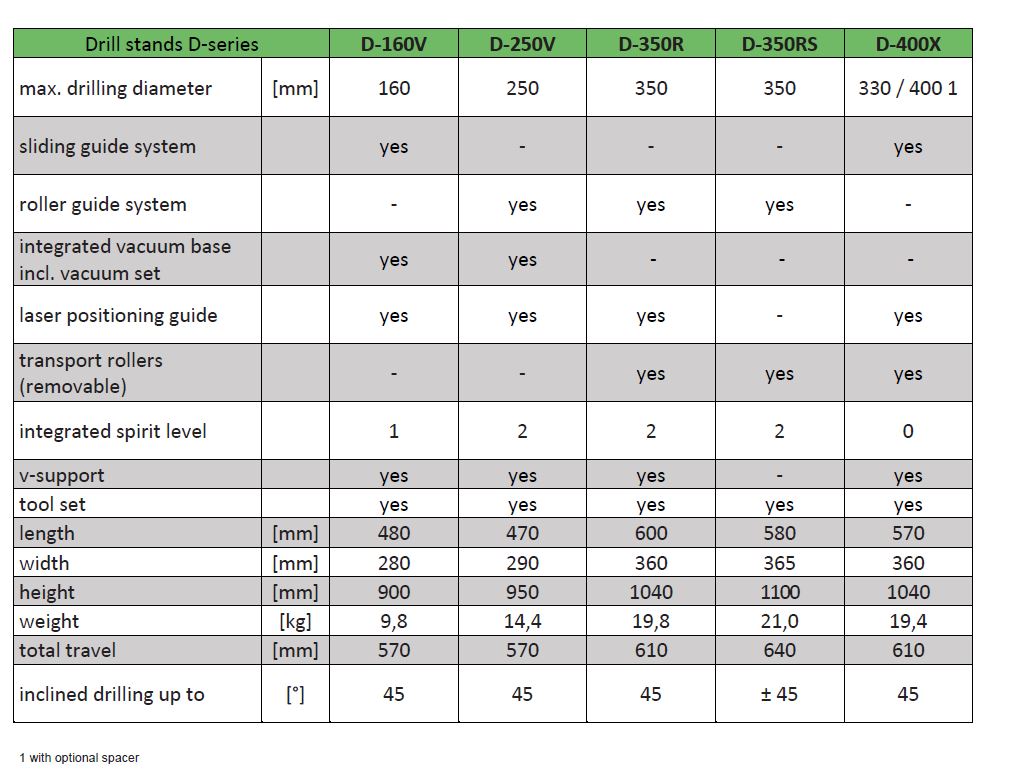

Common Characteristics
D-350 RS
Variable drill rig with roller guide system, stable cast base, transport rollers, laser positioning guide and quick release plate for bores up to d 350 mm
• low-maintenance and smooth-running roller guide system
• continuously inclining up to 45°
• heavy-duty, compact steel welded base with pivot overturn support
• column movable in drilling direction - no extensions for inclined drilling necessary
• easy removable transport wheels
• motor quick release plate
D-400 X
High performance drill rig for professionals with stable cast base, transport rollers, laser positioning guide and quick release plate for bores up to d 330 (400*) mm
• low-maintenance and stable sliding guide system
• continuously inclining up to 45°
• strong cast base with leveling screws
• easy removable transport rollers
• V-support for starting of drilling
• laser drilling center indication
• motor quick release plate with eccentric shaft
• two comfortable carrying handles
• spread screw in the column,s top for quick fastening of the drill rig
• incl. tool set
*with spacer
