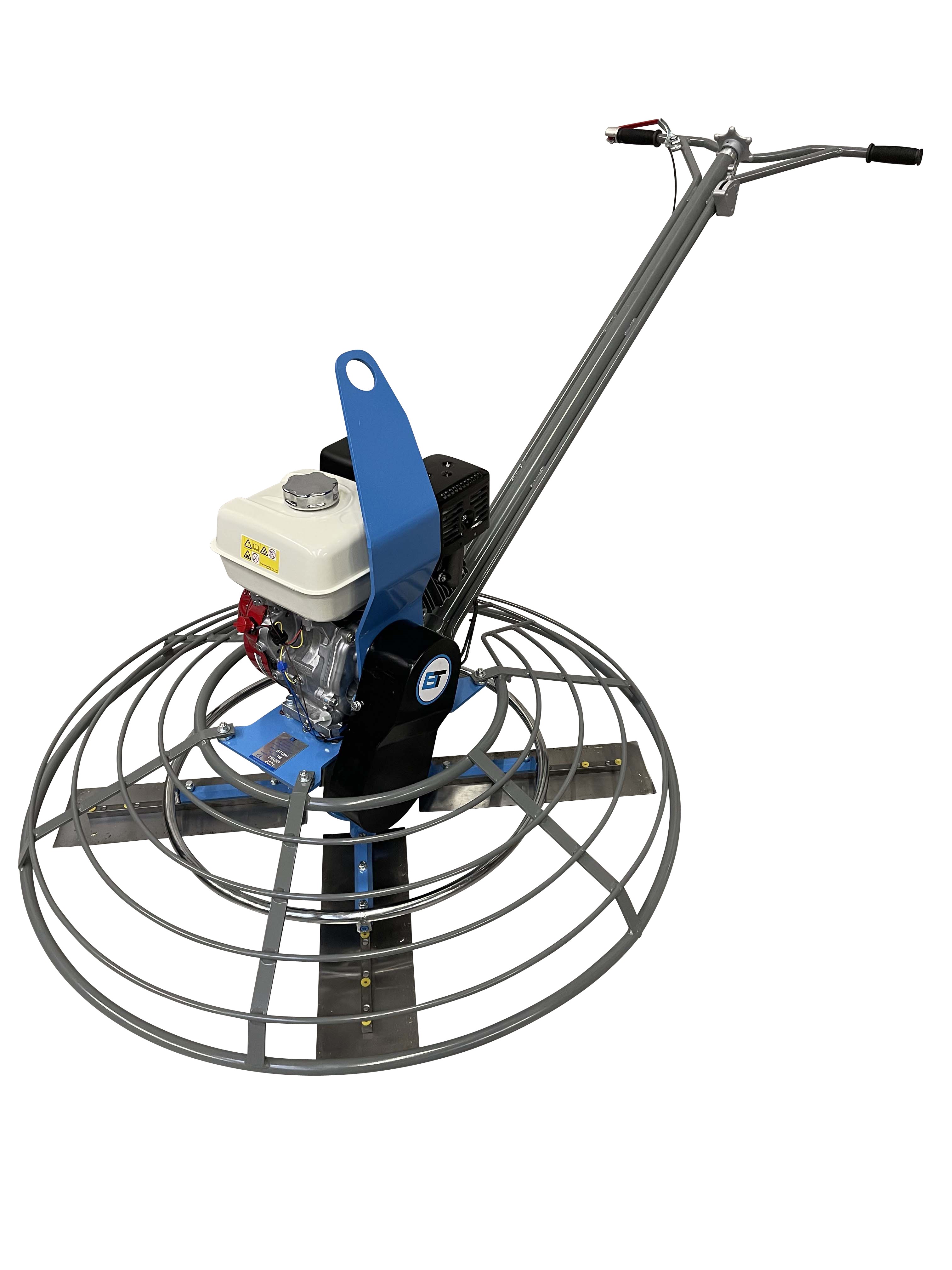

The BT120 walk behind trowel is the professional finishers right arm. It gives the finisher 2.5 times the performance of a 90cm(36?) diameter trowel. The combination of weight, balance and blade span provides an all round performance that is unequaled.
Common Characteristics
• The 18? finish blades with the use of clip on float shoes will provide far superior results for first passes on superflat floor requirements.
• tri-tube lateral welded handle for strength. all control cables run inside the three handle tubes for maximum protection
• body contoured handle bar for control & safety
• dual stop controls – deadman & centrifugal
• chromed handle and guard ring for easy cleaning
• precision engineered gearbox and spider assembly for trouble free long life.
• spider arms fully adjustable to maintain exact blade balance and eliminate machine wobble
• lifting hook fitted standard
• full options of blades and float pans – finish, combination, float shoes, plastic blades.
• blades and pans standard to many well known make of machines
Technical Data
| Parameter | Value |
|---|
| Weight | 118
kg |
| Engine | Honda GX270
|
| Engine power | 9
Hp |
| Dimensions | 2130 / 1040 / 1250
mm |
| Trowelling Diameter | 1200
mm |
| Foldable handle | Не
|
| Handle vibrations | 1.1-1.5
m/s |
