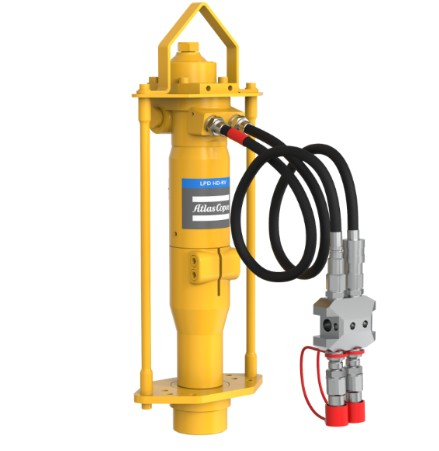

Hydraulic Post Driver Atlas Copco LPD-HD-RV

The post drivers provide stable, powerful, high speed driving for a variety of post sizes. The remote-controlled valve lets you run the driver with both open- or closed-centre systems.
Common Characteristics
• Drives up to 150 mm diameter poles
• For driving of:
• Road barriers
• Tubes / profiles
• Signposts
• Fences
• Anchors
• Ground rod
• With built-in on/off valve or hose mounted remote on/off valve
Technical Data
ParameterValue
Oil Flow28-40  l/min
Working Pressure105-125  bar
Maximum Return Line Pressure15  bar
EHTMA ClassD/E
Sound Power Level Guaranteed (2000/14/EC)118  dB(A
Sound Pressure Level (ISO 11203) (Lp, r=1m)105  dB(A
Weight with Hoses40  kg
Post/rod diameters70-150  mm
Impact rate at 30 l/min1320  bpm
