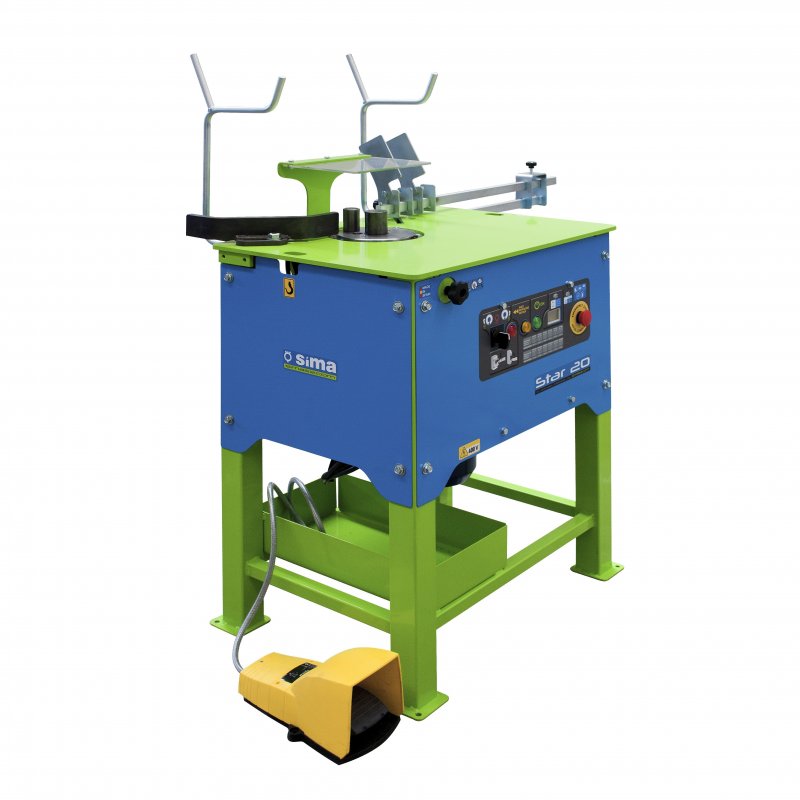

The new STAR 20 is featured with a 360 ° turning bending plate so as to work clockwise and counterclockwise, for an increased operational flexibility.
Also supplied with holders to store rebars and provide an easier rebar feeding.
Common Characteristics
Thanks to its handy and confortable design, STAR stirrup bender delivers a high performance and productivity, up to 700 - 1000 stirrups per hour depending on the rebar size, the stirrup shape and the operator skill. STAR stirrup bender represents a very tiny investment in comparison to its high output, which makes it a perfect partner for rebar fabricators / workshops, for their serial stirrups productions and for rebar jobs at sites, thanks to its adaptability.
It is also quite suitable for builder's merchants or hardware stores with rebar supplying services.
Available in single phase 230V and three phase 230V / 400V motor versions to ease the rebar works at any site.
They can bend multiple stirrups at the time with the same shape and bending quality. Not only able to produce standard stirrups but virtually any rebar shape tipically used in rebar structuresconstruction, such as: hooks, separators, anchorages, rebar feet, elbows, reinforcements, etc.

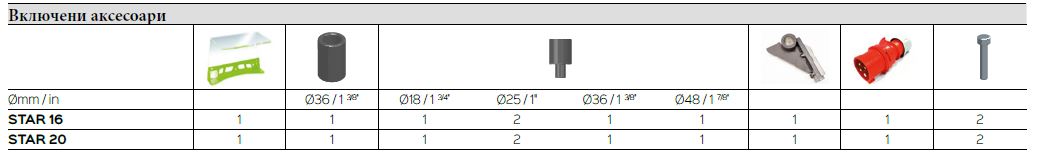

All the necessary pins, rollers and mandrels, as well as the adjustable stop ruler are supplied as standard equipment.
Technical Data
| Parameter | Value |
|---|
| Max. bending diameter | 20
mm |
| Power | 1.5
kW |
| Motor Voltage | 230-400/50
V/Hz |
| Turns per minute | 17
|
| Dimensions (LxWxH) | 214
mm |
| Weight | 735 х 547 х 893
kg |
