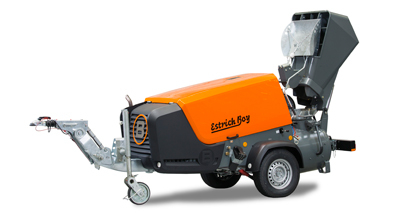

EC 450 with electric motor 30 kW, 50 Hz.; with skip and scraper
For conventional semi-dry floor screed with different binder additives such as cement, anhydrite, etc.
Common Characteristics
The EC 450 with electric motor offers advantages, in particular for the urban environment. The silent electric motor has no emissions itself and makes the EstrichBoy one of the most environment-friendly screed conveyors in Europe. The simple, reasonable "refuelling" (i.e. charging) at the socket also lowers operating costs by up to 30% compared to a diesel-operated machine.
Technical Data
| Parameter | Value |
|---|
| Motor | 400/50
V/Hz |
| Power | 30
kW |
| Compressor | 4.38
m3/min |
| Output | 5
m3/h |
| Delivery range - wide | 120
m |
| Delivery range - high | 60
m |
| Filling height | 400
mm |
| Chassis | 80
km/h |
| Length х width х height | 5000 х 1580 х 2450
mm |
| Weight | 1790
kg |
