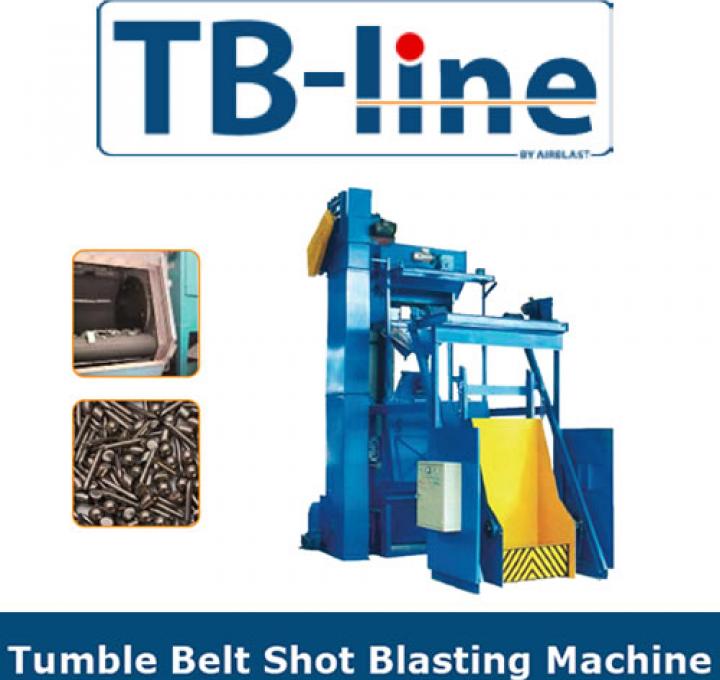

TB-Line Shot Blasting Machine AIRBLAST - different models.
Common Characteristics
- The TB32 can be used for surface cleaning, removing rust and surface intensification of various small and middle sized cast or forged work pieces. The addition of a continuous conveyor allows for increased production rates when used as part of a production line.
- The TB15GN & TB28GN Series can be used to remove sand and rust from cast, forged and welded parts as well as aluminum and other non-ferrous parts.
| Type |
TB326 |
TB3210 |
TBR3210 |
| Productivity (T/h) |
0.6 - 1.2 |
3 - 5 |
1.5 - 2.5 |
| Loading weight (kg) |
200 |
800 |
600 |
| Max. weight of one piece (kg) |
10 |
15 |
30 |
| Diameter of roller (mm) |
650 |
1000 |
1000 |
| Available capacity (m³) |
0,15 |
0,4 |
0,3 |
| Pill impelling volume (kg/min) |
100 |
250 |
250 |
| Dedusting air volume (m³/h) |
2200 |
6000 |
5000 |
| Power dissipation (kw) |
12,6 |
32,6 |
24,3 |
| Appearance dimension (mm) |
3681 x 1650 x 5800 |
3644 x 2926 x 5856 |
3972 x 2600 x 4768 |
| Total weight (kg) |
2340 |
5843 |
7400 |
