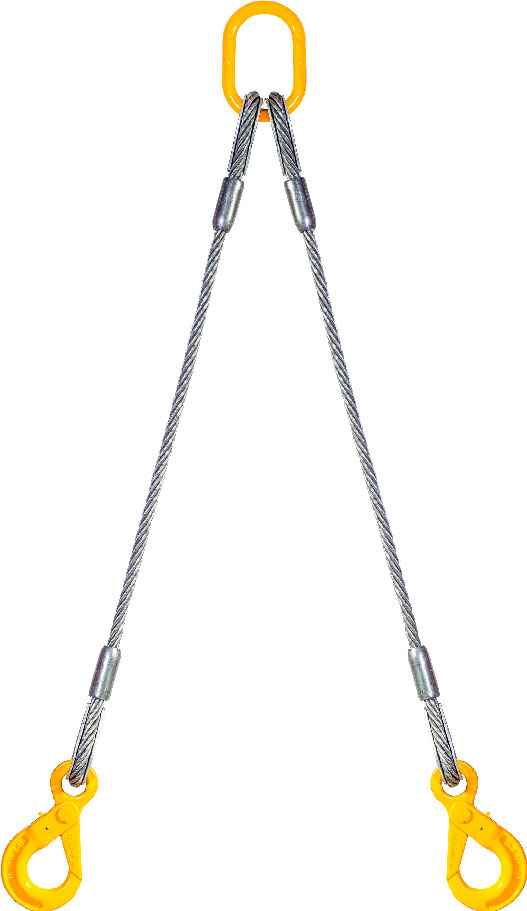

Double leg wire rope slings

Wire rope slings and assemblies are the most common and rugged slings used today and can be made in single, double, triple and quadruple leg configurations. Wire rope sling assemblies can also be braided into multiple parts making them more flexible and able to handle higher capacity by increasing the diameter of the sling.
Common Characteristics
To order sling legs, choose the correct size from the tables below. Determine the length needed and specify the end fittings required from the list of combinations shown below. Two, three, and four leg spreaders will be fabricated with oblong Master links, unless otherwise specified.



Technical Data

Rope diameter, mm

WLL 0˚ - 45˚, kg

WLL 45˚ - 60˚, kg

8

950

700

9

1 200

850

10

1 500

1 050

11

1 800

1 300

12

2 120

1 550

13

2 500

1 800

14

3 000

2 120

16

3 385

2 700

18

4 800

3 400

20

6 000

4 350

22

7 200

5 200

24

8 800

6 300

26

10 000

7 200

28

11 800

8 400

32

15 000

11 000
