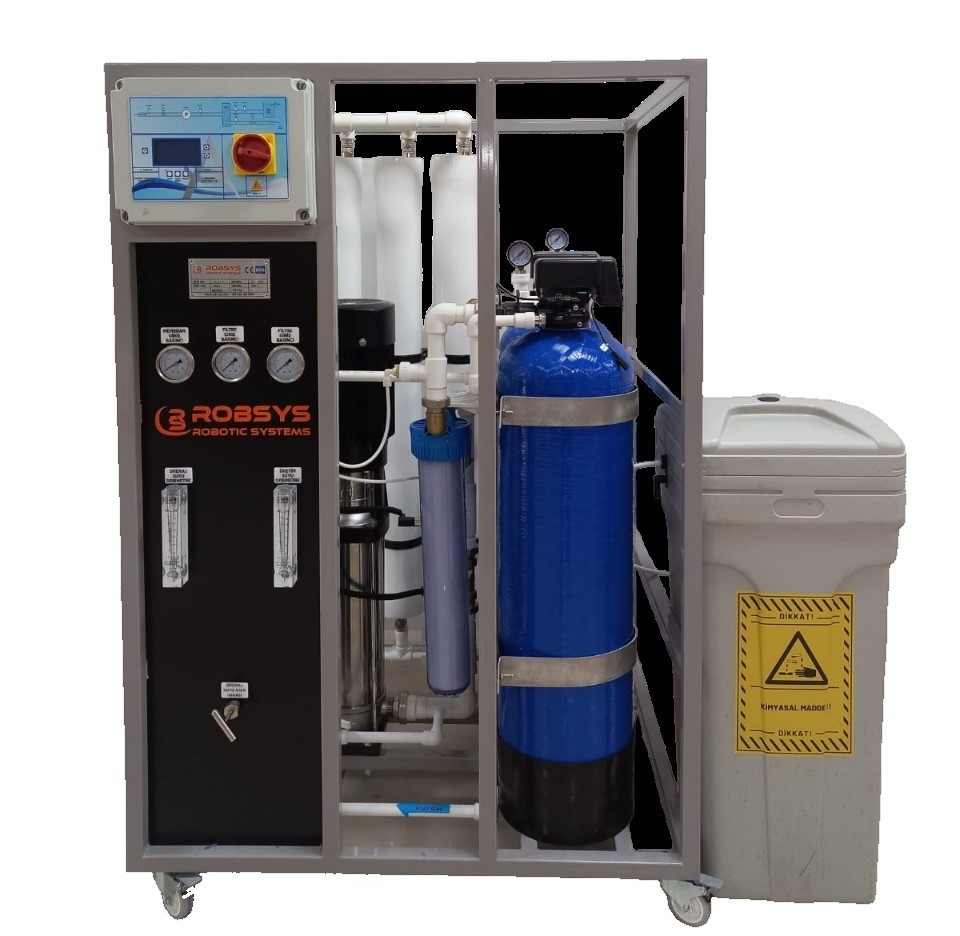

The SS 1000 Series provides the production of pure water needed for solar panel cleaning. It produces pure water by reverse osmosis. It obtains pure water by taking mains or well water and passing it through physical filter, membrane and sedimentation filter respectively.
Common Characteristics
• 250-2500 l per hour pure water treatment
• Low cost reverse osmosis system
• Password protected control panel
• Flowmeter for production and waste
• Waste setting valve
• Autoflush and adjustable flush time
• LED screen (conductivity, electricity voltage value, motor current, pressure adjustment, flow, water tank level, fault indication)
Filter System: Coarse Sediment Filter + Automatic Valve Carbon Filter + Sedimentation Filter + Cationic Filter + Reverse Osmosis (RO) Membrane Filters
Optional Elements: Thermoplastic or Pneumatic Water Pipe; Power Cord
Technical Data
| Parameter | Value |
|---|
| Dimension (width*length*height) | 820 x 1400 x 1000
mm |
| Voltage | 220
V |
| Frequency | 380
Hz |
| Pure Water Production Capacity | 1000
l /h |
| Water Inlet Pressure | 8
bar |
| Main Membrane Filter | RO H/250 L
|
| Number of Main Membrane Filters | 4
|
| Water Output Values | 0-10
Microsiemens |
| Operating Temperature | 1/60
°C |
| Weight | 320
kg |
