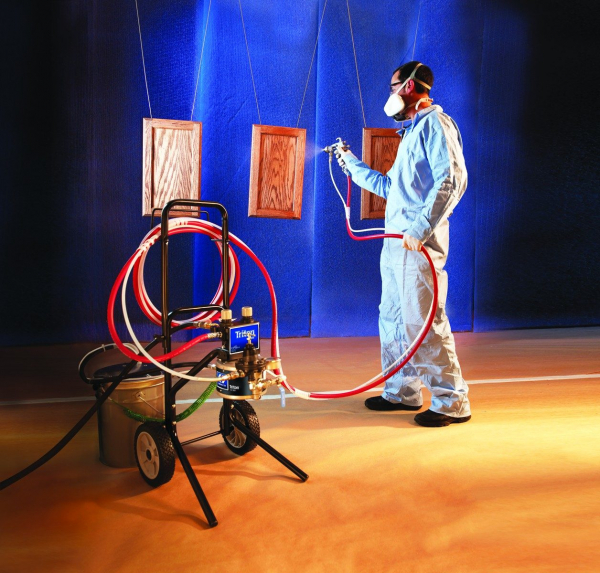

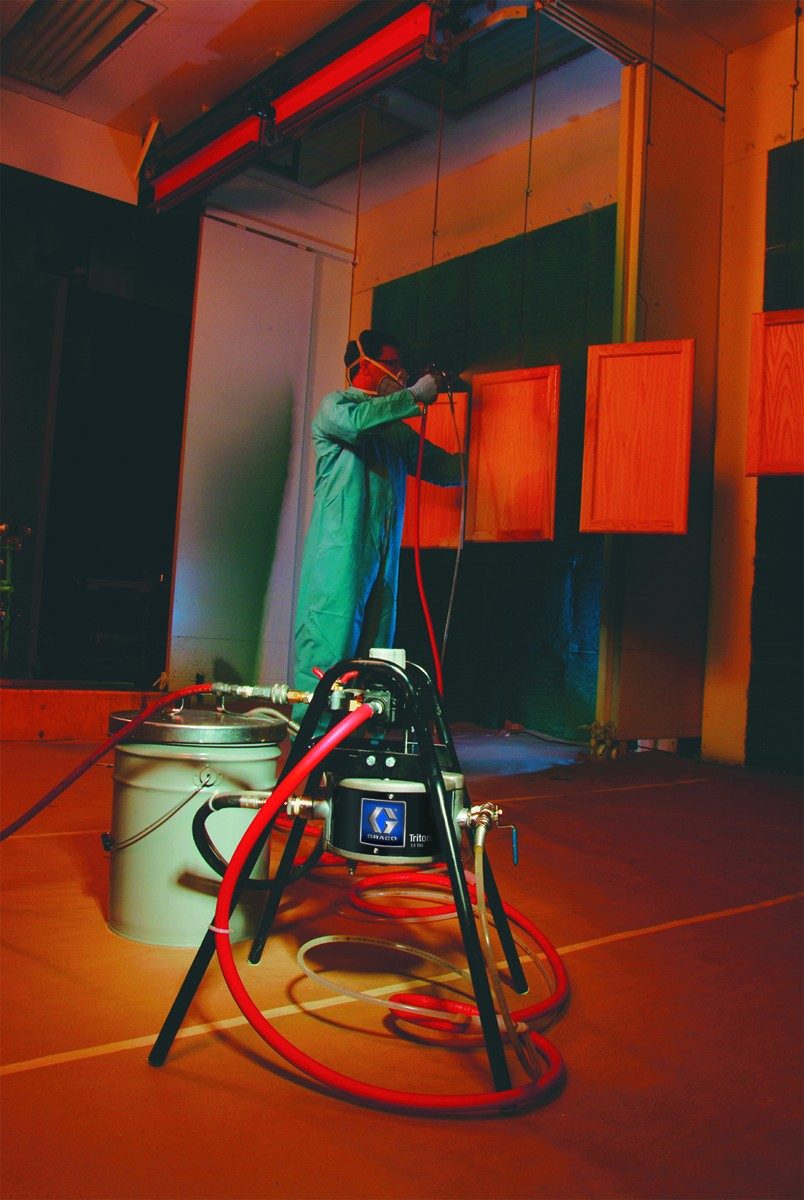

Apply a high quality, decorative finish to wood and metal parts with this double diaphragm pump package.
Common Characteristics
Graco Triton :

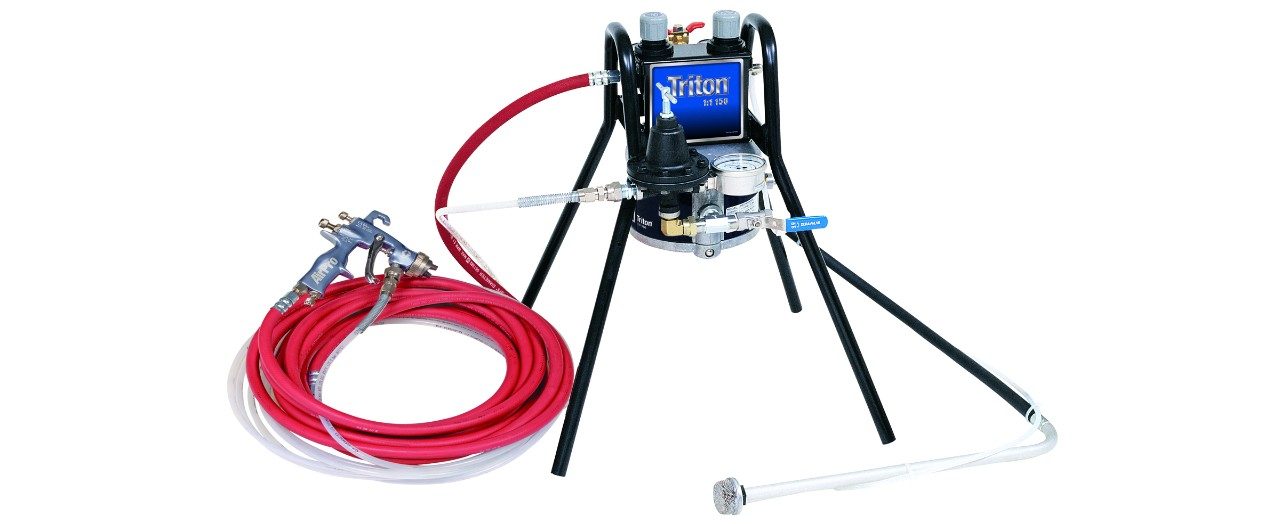

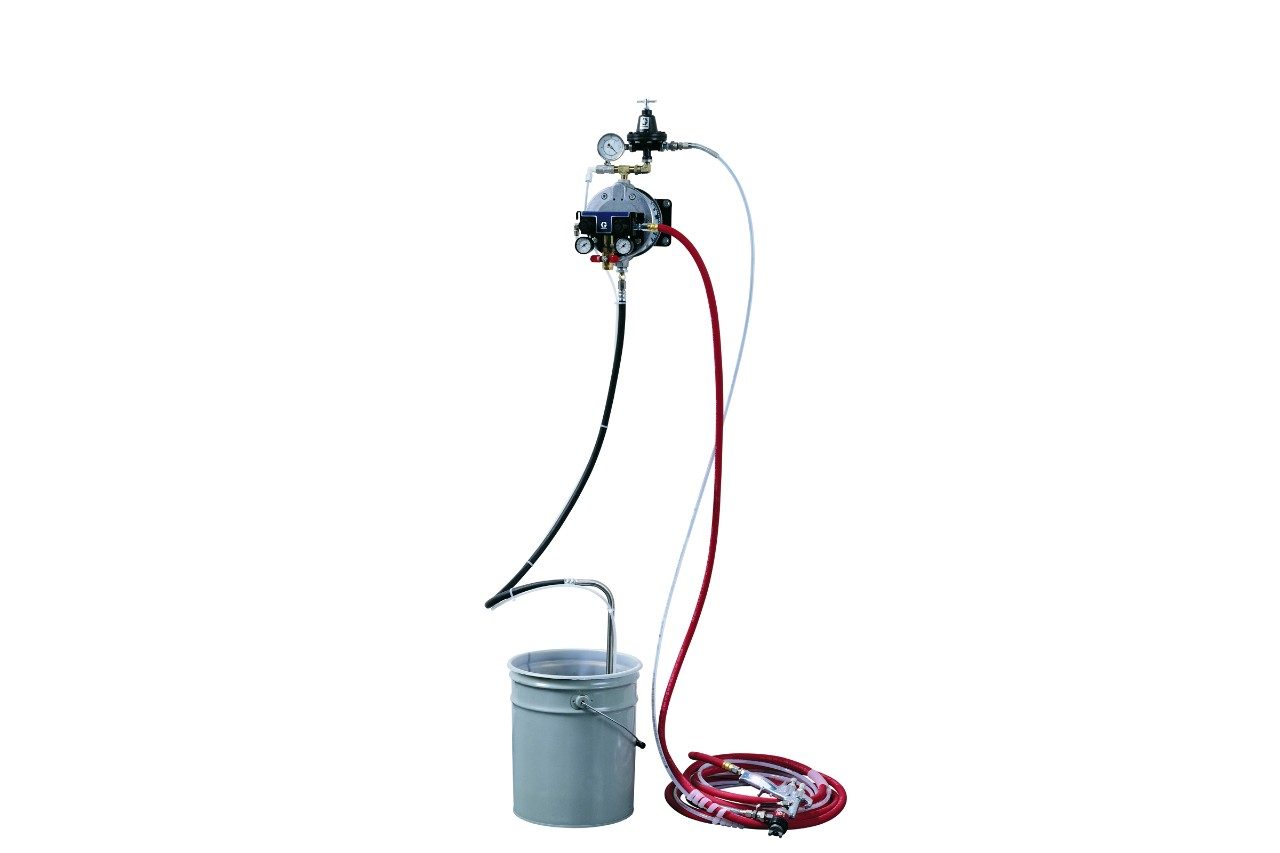

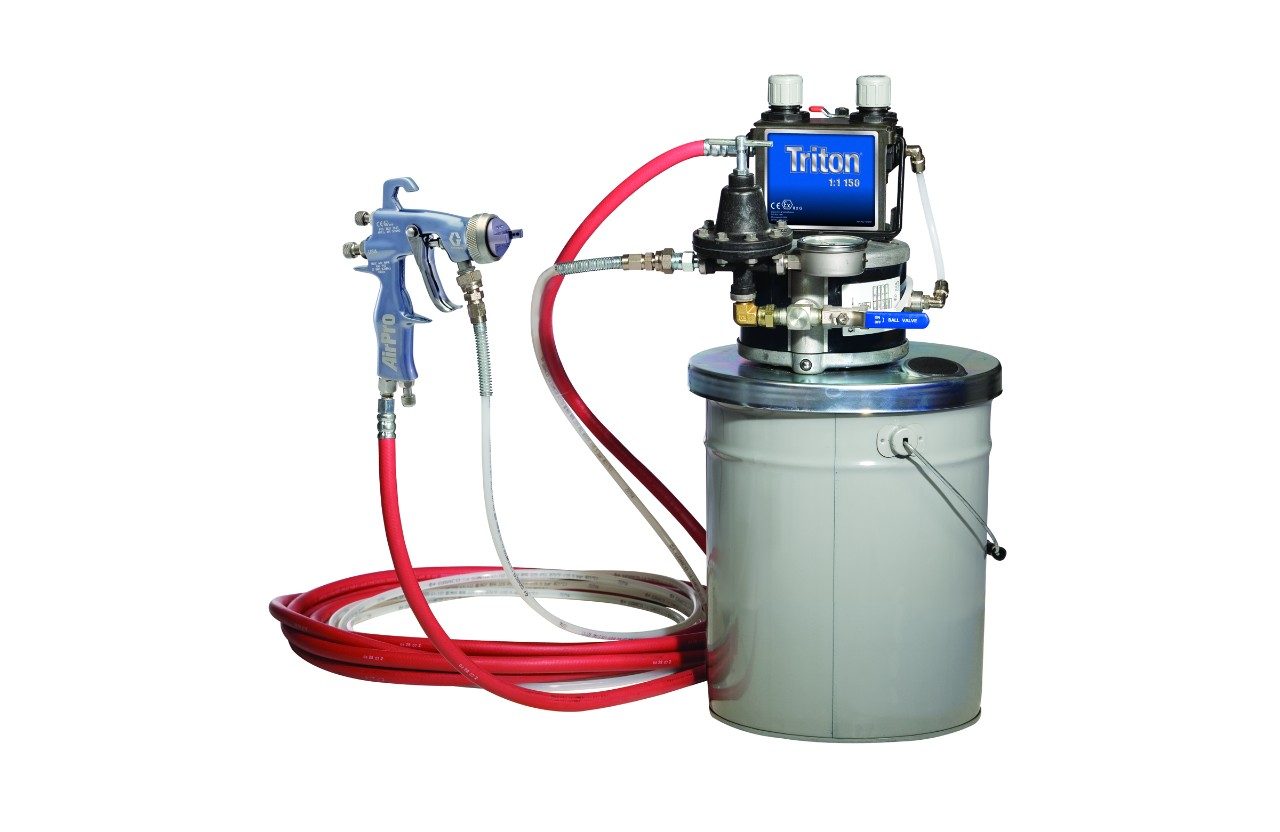

low pressure Triton pump

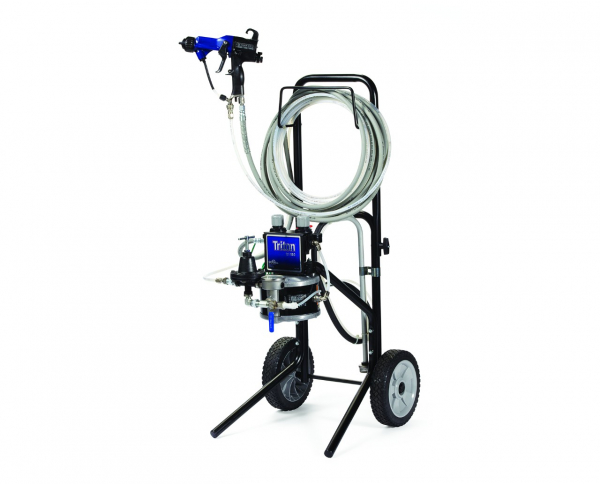

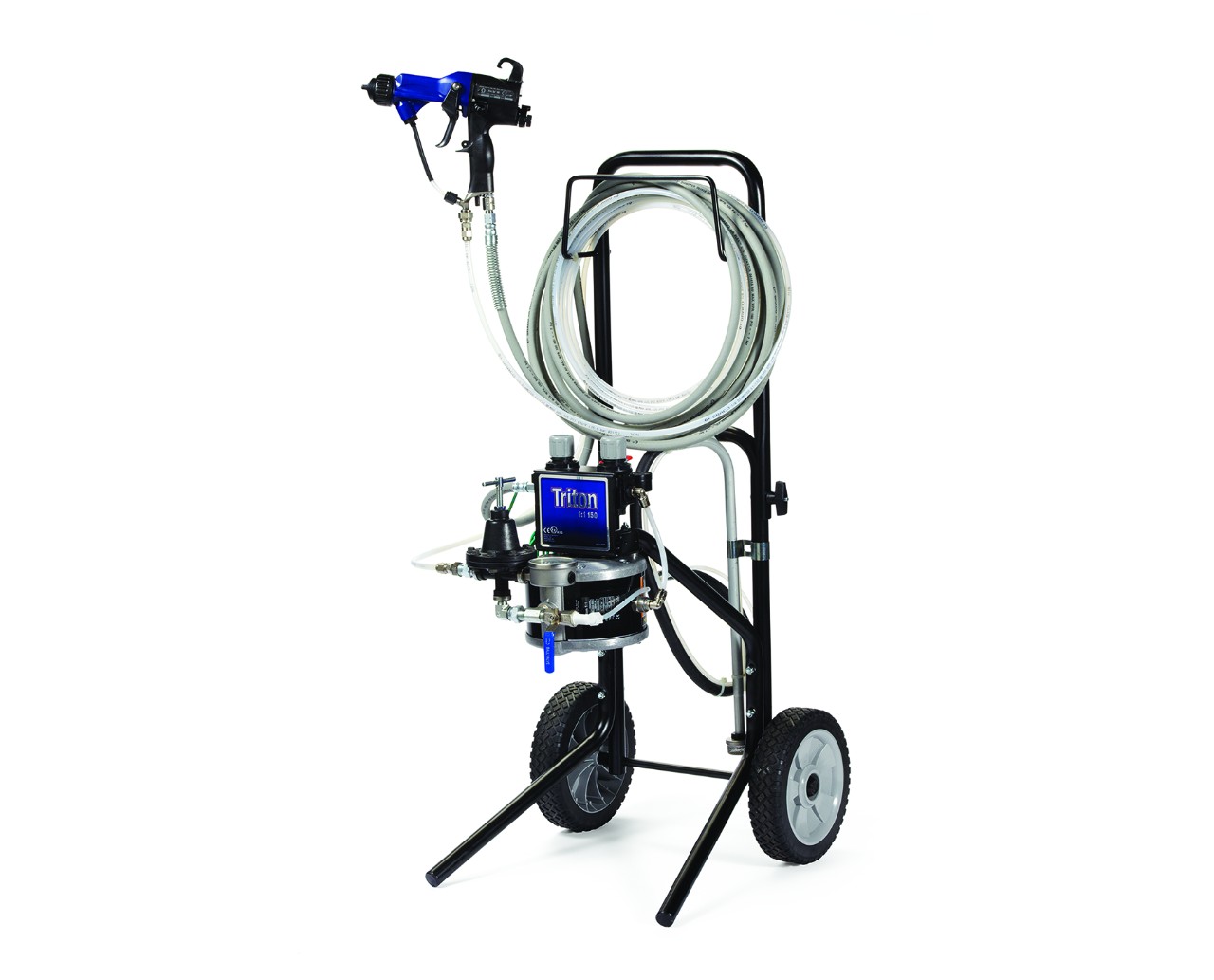

trolley with a diaphragm pump mounted on it
regulator and pressure gauge for the inlet air to the gun
regulator and pressure gauge to the pump pistol
a recirculation valve and a paint circulation hose
air hose - 7.6 m
paint hose - 7.6 m
AirPro Air Spray Low Pressure Gun
gun nozzle with 1.4 mm aperture
nozzle cap
Technical Data
| Parameter | Value |
|---|
| Maximum fluid pressure | 7
bar |
| Maximum inlet air pressure | 7
bar |
| Maximum flow of the fluid | 32
l/min. |
| Access air inlet size | 1/4”
|
| Connection dim. For the inlet and outlet fluid | 3/8”
|
| Weight of the pump with the trolley | 15.7
kg |
