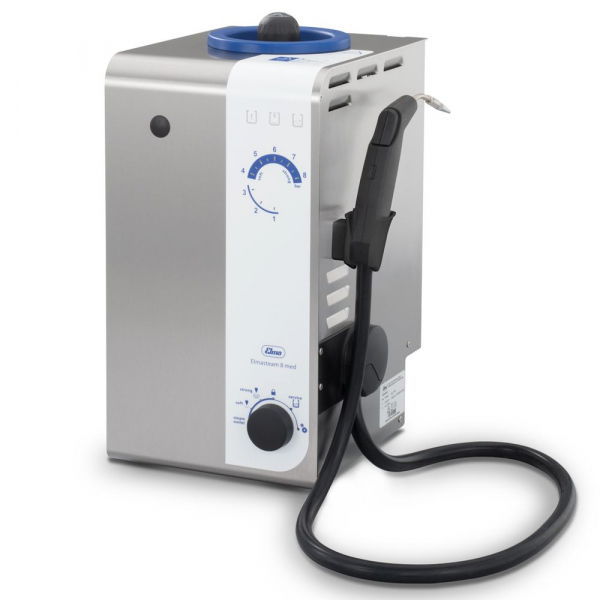

The Elmasteam 8 med is ideal for the manual pre-cleaning and processing of medical instruments.
Common Characteristics
Powerful cleaning in the CSSD
Certain instruments, such as burrs, drills and electro-surgical instruments, often do not become sufficiently clean in the standard washing and disinfecting unit.*
The Elmasteam 8 med steam jet cleaner is the ideal tool to pre-clean such instruments and smoothly removes even tenacious contaminations like burnt-in tissue on electro-surgical forceps. So the valuable instruments are preserved for longer time.
The insides of hollow body instruments can be connected directly to the Luer-Lock-connection at the handpiece or can be cleaned with the optionally available adapter set.
The high performance of the Elmasteam 8 med is due to the optimised piping system with larger cross sections, the intelligent pump control, the increased heating power (60% more) as well as the optimised heating position.
The intelligent control system of the Elmasteam 8 med calculates, by means of preset water hardness and the intensity and frequency of use, the proper time for decalcification. The user is led step by step through the decalcification process. Due to this integrated decalcification programme and the protection against dry running of the heating, the Elmasteam 8 med is highly reliable and fit for use for a long time.
Technical Data
| Parameter | Value |
|---|
| Operating pressure | 8
bar |
| Pressure tank volume | 5
l |
| Max. filling volume | 3.8
l |
| Max. power consumption | 3120
W |
| Steam temperature in the tank | 185
°C |
| Steam temperature at the nozzle | 160
°C |
| Dimensions W/D/H | 285/350/520
mm |
| Weight | 20
kg |
| Registered as medical device | Class 1**
|
