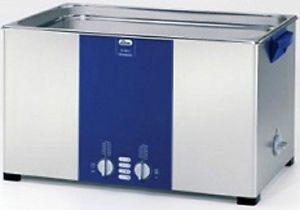

Ultrasonic cleaning unit with 28 l maximum filling volume.
Two ultrasonic frequencies, switchable in one unit : 37 kHz and 80 kHz.
Common Characteristics
Further advantages :
Ultrasonic tank made of cavitation - proof stainless steel.
Casing made of stainless steel, hygienic and easy to clean.
Sandwich - type performance transducer systems.
Two ultrasonic frequencies, switchable in one unit : 37 kHz und 80 kHz.
37 kHz : for the removal of coarse contaminations and for mixing, dissolving, dispersing and degassing.
80 kHz : perfect for the cleaning of capillaries and fort he use in quiet work areas, prolonged cleaning period.
Automatic frequency switch - over for simultaneous coarse and fine cleaning.
Activatable Sweep mode for an optimised sound field distribution within the cleaning bath.
Activatable Pulse mode for an intensified ultrasonic cleaning power.
Activatable Degas mode for the quick degassing of HPLC samples or solvents and of fresh cleaning liquids.
Auto Degas mode for an automatic degassing cycle, e.g. for fresh cleaning liquids.
Ultrasonic power variable for sensitive surfaces.
Temperature - controlled ultrasonic operation : ultrasound starts automatically as soon as the preset temperature is reached.
Indication of unit settings ( e.g. set and actual values ) by alphanumerical display.
Saving of the last unit settings at switch - off.
Electronic turning knobs.
Automatic stirring during heating - up process.
Pluggable mains cable.
Automatic safety switch - off after 12 h operation to prevent unintended permanent operation.
Automatic safety switch - off at 90°C to protect the cleaning items against excess temperatures.
Technical Data
| Parameter | Value |
|---|
| Mains voltage | 220-240
V |
| Ultrasonic frequency | 37 / 80
kHz |
| Max. filling volume tank | 28
l |
| Power consumption total H | 1630
W |
| Unit outer dimensions | 568 / 340 / 321
mm |
| Tank internal dimensions | 505 / 300 / 200
mm |
| Basket internal dimensions | 455 / 250 / 115
mm |
| Weight | 11
kg |
