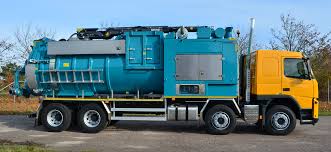

A truck mounted unit that can transport bulk materials and liquids by vacuum.
Common Characteristics
A truck mounted unit that can transport bulk materials and liquids by vacuum or overpressure through a hose system with a diam up to 200 mm. The vacuum unit is designed and adapted for mounting onto a four - axle truck chassis with two front axles.
The unit is equipped with a separate diesel engine offering the possibility to utilize local fuel taxation regulations. It also makes the machine operate independently of the truck.
The material tank and filter compartment are combined and the dust from the filter compartment is emptied through a hatch in the partition wall in the tank at the same time as the tank is tilted.
Collected material is discharged by tilting the tank or pneumatically through a hose.
Injection - SCR technology and a cooled EGR.
Engine cooler - water to air.
Air charging cooler - air to air.
Main filter system – 2 x 35 galvanized cages with filter socks in needled polyester - glazed surface.
Filter area 26 m2.
Safety filter system - 3 filter cartridges - 33 m2 located in the machine house.
Tank
Gross volume 12000 litres.
Tailgate - Hydraulically operated and locked.
Tipping system - Hydraulic front cylinder, double acting system.
Level guards - Wet resp dry level guards.
A six cylinder turbocharged diesel engine complying with the EU Stage IV / EPA.
Tier 4f emission requirements.
Technical Data
Parameter | Value |
---|
Make | D8 TAD873VE
|
Cylinder volume | 7.7
l |
Power | 235 / 320
kw / hp |
Max engine speed | 2200
rpm/min |
Charging system | 24
VDC |
Vacuum pump | Kaeser Omega 83 PV
|
Max.vacuum | 950
mbar |
Air volume, unloaded | 8100
m3/h |
Air volume (-500mbar) | 7100
m3/h |
Operating speed | 1100 - 2650
rpm |
Max power required | 220
kw |
