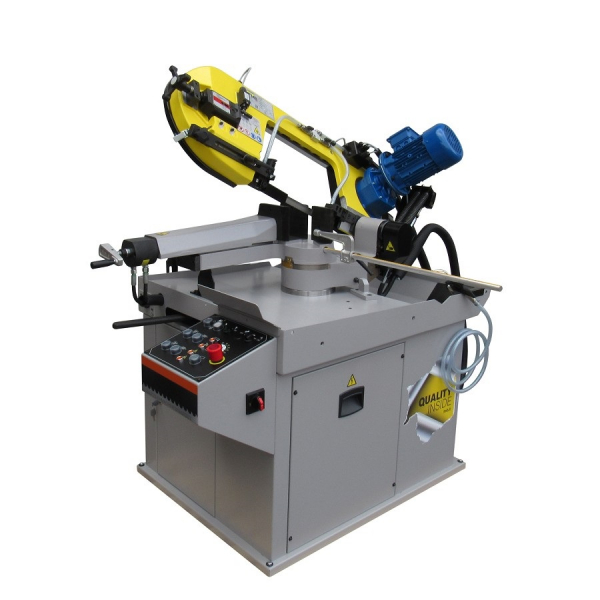

Bandsaw semiautomatic FMB SIRIUS

• Head structure in special aluminium casting alloy.

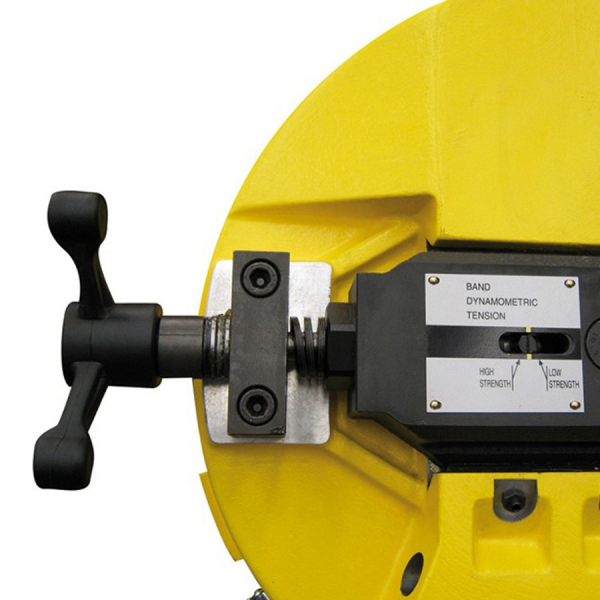

• Dynamometric blade tensioning.
• Broken blade micro.
• Blade cleaning brush integrated in the head protection cover.
• Head feeding system with hydraulic cylinder and descent adjustment by flow valve placed in front position.
• Blade guide with combined action of side bearings, carbide plates and top bearing.
• Reduction gear box with inclined grinded case hardened teeth lubricated with long lasting grease.
• Output shaft of the reduction gear box Ф 40 mm and motor wheel connection with a keyless shaft/hub connection. Version 2 speed 35/70 m/min - version VHZ 16-120 m/min.
• Material clamping vice with manual positioning with hydraulic locking cylinder.
• Ergonomic working table and control panel. Head rotation angle stop at 0°, 45° and 60°.
• Degrees measuring system, graduated scale and rugged in construction locking lever.
• Loading side: Rugged in construction support roller with double positioning.

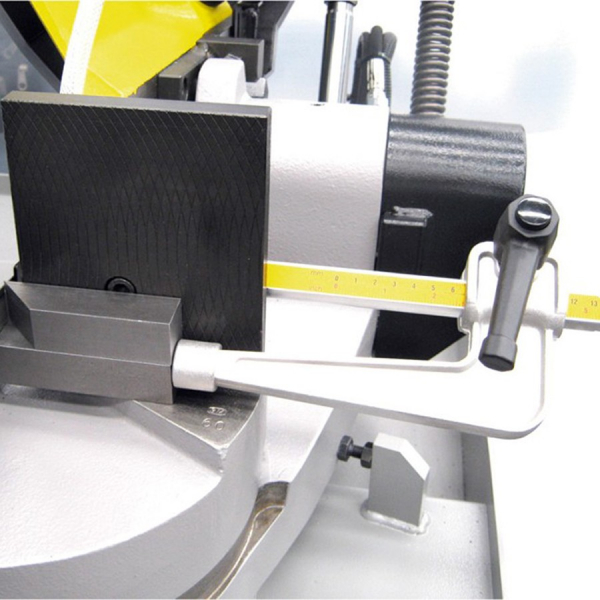

• Millimetric reference length stop measuring system, cutting length 0-600 mm.
• Heavy duty machine base, sheet metal construction, raised sides for chips & coolant containment.
• Base unit door with key locking, housing the coolant pump & 20 L capacity tank, plus the Hydraulic pump unit for bow cylinder movement, vice cylinder.
• Electrical cabinet with 24 VAC, lockable main switch and electric drives.
• Total protection against highest voltage and short circuit current. Protection level IP 55.
• Electronic control panel: blade speed selection, piece counter, coolant selection, angle display (VAT Optional) and cutting height memorizing.
• Alarm messages display and auto checking at start up.
• Line voltage: 400V/50Hz/3Ph standard (Available: 230V/50Hz/1Ph-230V/50Hz/3Ph-110V/60Hz/1Ph-220V/60Hz/3Ph-440V/60Hz/3Ph-575V/60Hz/3Ph).
• Machine colours: yellow RAL 1018 and grey RAL 7036.
