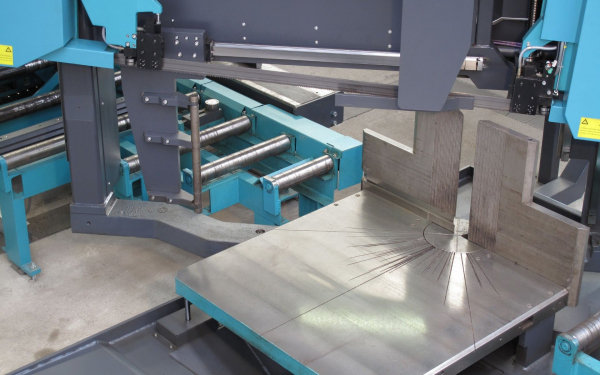

Mitering band saw for light- and heavy-duty steel fabrication and service centers
Workspace 90° [mm]: 1030 x 500
Common Characteristics
BENEFITS AT A GLANCE
• Highest cutting performance
• Long machinery life
• Robust construction
• Highest automation possibilities
• Precise setting of cutting angle
• Significant reduction of cutting time by means of Auto Feed Control
Outstanding cutting performance Auto Feed Control (AFC)
- Precise positioning
- Automatic tilt angle adjustment of the saw band in case of heavy products
- Significantly reduced cutting times
- First class end products
Optimal Feed
- Saw feed with ball screw and servomotor
- Constant and temperature-independent feed
- Low idle times and higher machine utilization
Precise setting
- NC-controlled angle setting
- High quality cuts
- NC-standard enables highest reliability
Powerful and reliable clamping
- Horizontal and vertical clamping device
- Low vibrations for long saw band lifetime and low operating costs
- Cutting of material layers and bundles possible
Optimal process flow
- Accurate positioning of material at in- and outfeed side
- Measuring carriages with various types of pushers and grippers
- Length stop LS 220 and LS 270
Full system automation
- Automated outsorting of short parts
- SPG - Short piece gripper for outsorting at one side
- AS - Autosorter AS 1000 for outsorting at both sides
Technical Data
| Parameter | Value |
|---|
| Working range max / min | 1030 x 500 / 30 x 10
mm |
| Drive power | 12.9
kW |
| Cutting speed | 15 - 150
m/min |
| Saw band feed | 0 - 600
mm/min |
| Rapid feed and return | 6,000
mm/min |
| Saw band dimensions (L x W x H) | 8900 x 1.6 x 54
m/min |
| Machine weight | 6000
kg |
| Machine dimensions (L x W x H) | 4370 x 1,435 x 2,650
mm |
