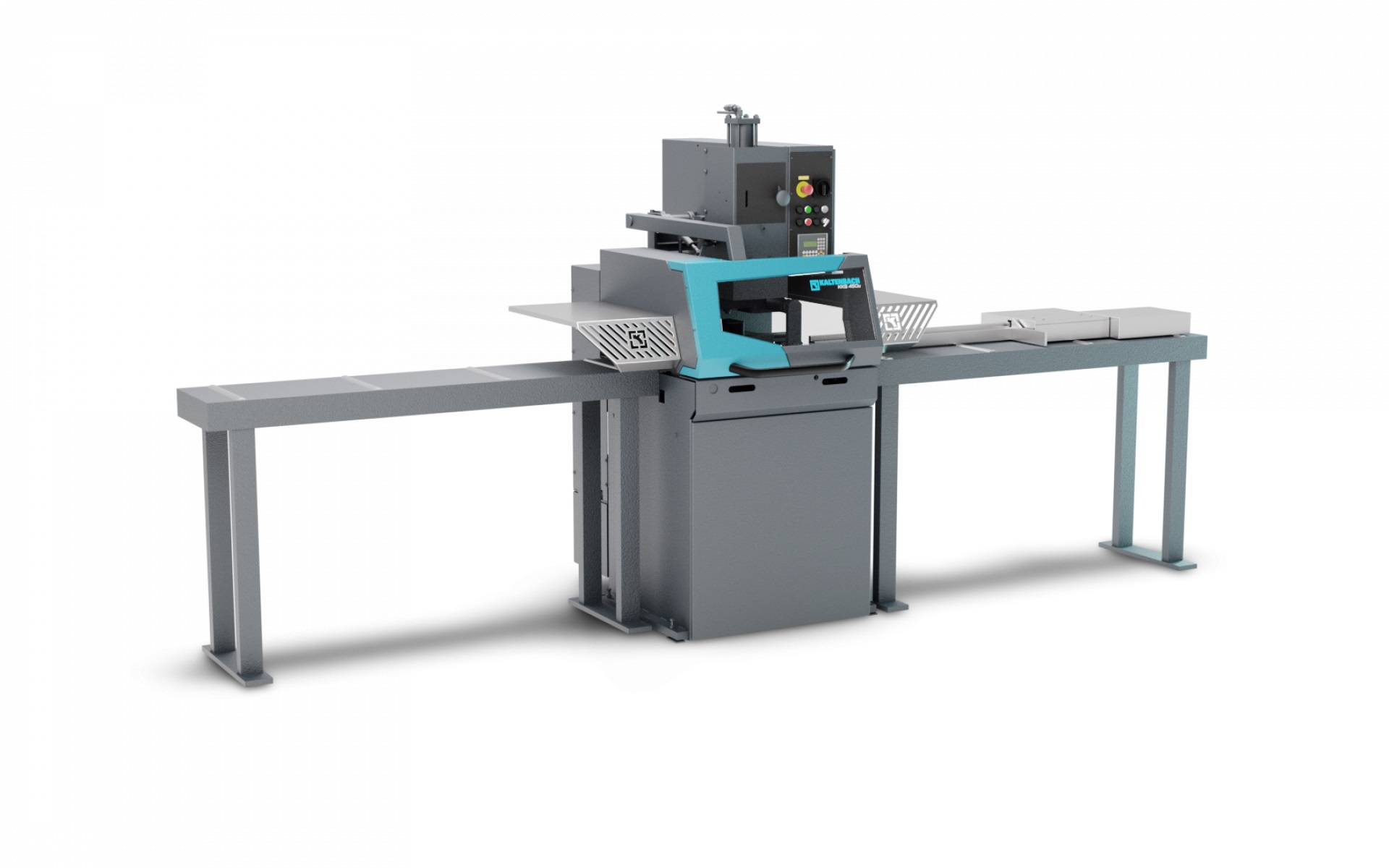

Semi-automatic mitre saw
Workspace [mm]: 150
Common Characteristics
BENEFITS AT A GLANCE
• Clamping, sawing, reverse motion, opening – touch of a button
• Push-button adjustment of the cutting height
• User-friendly electronic control directly on the machine
• Space saving installation
• No manual presetting of the vertical clamp
• Two cutting speeds for virtually all applications
Visual feed control
- Visual feed control (optional)
- For machining thick-walled pipes and solid material
Workpiece clamping
- Hydraulic long stroke vertical vice
- Large scale pressure piece for secure clamping on both sides of the saw blade
Additional workpiece clamping
- Horizontal clamping device to the right and left of the saw blade
- Clamping aid for thin-walled profiles
- Additional clamping for example sawing of acute angles
Precise straight and mitre cuts
- Stable contact surface for precise cuts
- Adjustable forwards and backwards
Rotary table for mitre cuts
- Easy, manual adjustment
- Pivoting range 180°
Individual feed adjustment
- Universal, infinitely-variable adjustment, even during the sawing process
- Lower feed rate with stainless steels, higher feed rate for tubes
- Feed movement via hydraulic cylinder
Minimum quantity lubrication
- Optimum tool lubrication
- Can be installed in addition to floot coolant device
- Long blade life
Precise cuts
- Robust, powerful drive with hardened and ground helical gears
- Smooth operation
Material related cutting speed
- Adaptable to the material
- Two cutting speeds as standard
Infinitely-variable adjustment of cutting speed
- Toothed-belt drive and frequency regulator for infinitely-variable cutting speed (opt.)
- Optimum adjustment of cutting speed to material quality
- Long blade life
