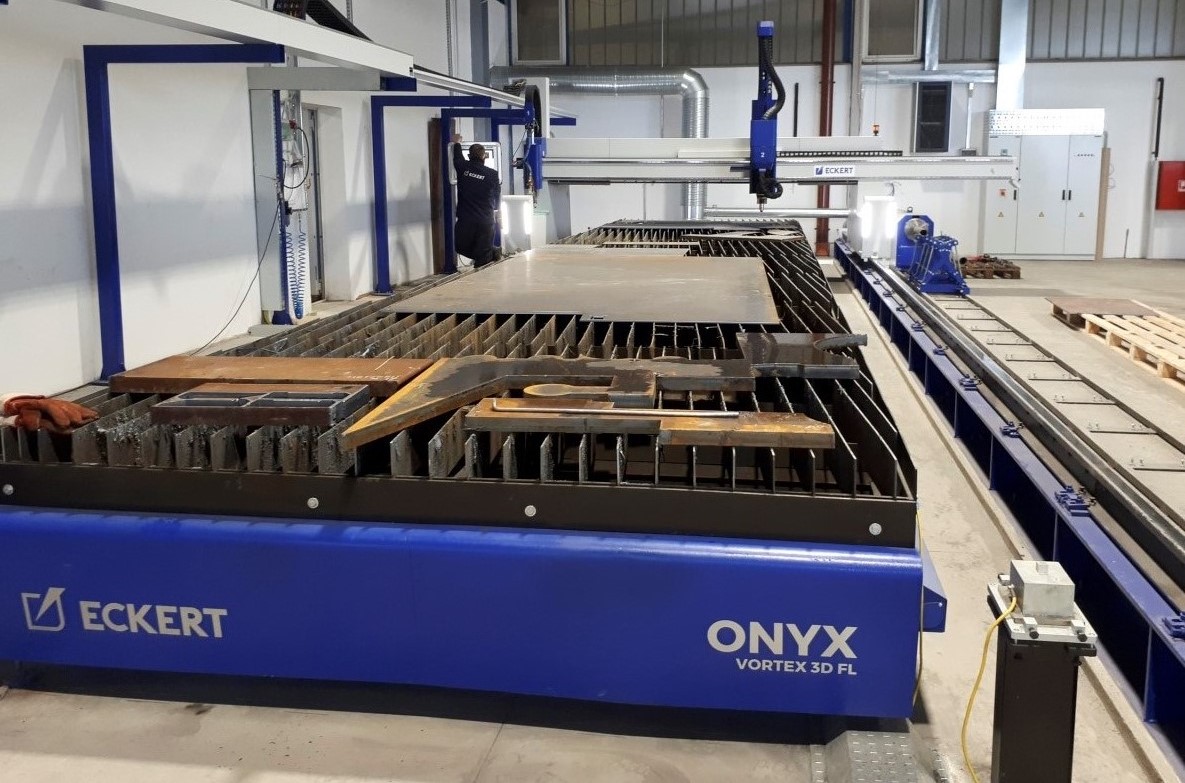

During designing of the plasma-oxygen cutter Onyx there were used some modern solutions of construction and mechanics. They ensured the best efficiency and the attractive, innovating look. Modified bridge construction makes it more rigid and resistant for high temperature. It is very important, especially during even 300 mm thick materials cutting. The unique combination of safety systems used in plasma-oxygen cutter Onyx ensure the highest comfort and the best level of safety for machine operators and people around them.
Main Features
- Plasma Vortex 3D FL head ensure the best precision of automatic 3D cutting of plates, tubes and profiles.
- More bridge rigid make possible to cut 1-300 mm thickness plates.
- Modern i-Vision controller installed on moving arm delivers the unique ergonomic and comfortable work.
- Modified drive system ensures clear X axle positioning during dynamic cutting.
- Power LED lighting and light curtains warrants safe work.
- Perfect scores thanks of greater base of predefined plasma and oxygen cutting parameters.
- Integrated modules inside of the machine make better resistance for adverse influences from cutting process.
- Onyx has Hypertherm® True Hole™ certificate and Kjellberg® Contour Cut™ technology.
- Integrated light barriers for safety improvement.
- Air conditioned servo controller cabinet as standard equipment.
- Gantry extension as option, allowing to work with pipe or profile rotator.
Product of ECKERT, Poland
Advantages
Innovative Dual Flex3D universal plasma and oxy-fuel bevel head. Allows precise beveling of metal sheets and pipes during one cutting process. Use of two additional tilting axes makes it a universal cutting tool with unlimited rotation. Equipped with plasma and oxygen torches on one bevel head for various cutting operations you achieve extended flexibility and productivity at reduced space requirements and manufacturing costs via strongly reduced post processing time at thicker materials.
Oxygen torch is the cutting solution destined to cut structural low-carbon and low-alloy steel. It is capable of processing wide range of material thickness. The torch was fitted out the height sensor, automatic ignition and possibility of manual angle setting.
Modular section suction tables grant efficient elimination of dust during the cutting process. The cutting machine was implemented with the self-supporting construction as the base for the frame with replaceable grids. Such construction offers safe and the best possible safety and performance of the table. The cutting table is provided with intelligent system of dust discharge from the cutting area. Each segment consists of supporting structure with discharge channels, diagonal gird, scrap tank and pneumatic controlled channels.
The most modern i-Vision Controller is the high quality industry machine has Corning® Gorilla® Glass's touchscreen. Efficient parts and the strong construction ensure reliability Onyx working. Many functions of own software and simple controller’s interface let to use all of machine’s possibilities. Controller’s place on the moving arm delivers the unique comfort and safety of machines operator. It make also possible to watching the cutting process and controller’s using at the same moment.
The Onyx construction is made of closed profiles with large cross-sections. Integration of cabling and controlling elements inside the machine ensures more agility and less risk for destroying because of high temperature or other factors during the cutting. The size of guiding trolleys, specially prepared roadway and using double linear guides efficiently make the machine stable and deliver the best safety and accuracy.
