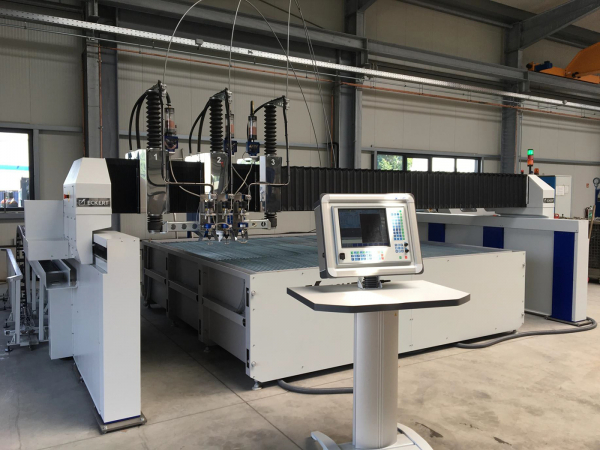

Opal WaterJet cutting machine, Eckert was created in response to the need of obtaining smooth, high quality finish with no heat-affected zone or thermal distortion. Utilization of waterjet cutting allows work with a wide variety of materials such as: stone, wood, plastics etc. up to 250 mm thickness. Optional use of PRO-X 3D cutting head widens design capability of the machine by 3D operations.
Main Features
- versatility
- there are no dust as a by-product of cutting
- abrasive or pure water cutting
- waterjet cutting system can operate with up to four cutting heads at a time
- customized high pressure pump adjustment
- dross free cutting minimizes post processing
2-axis waterjet cutting head Accustream is utilizing proven in practice hydro-abrasive cutting technology. Well-designed construction head equipped with height sensor and anti-collision device guarantee the best quality cuts and faultless operation.
5-axis Pro-X 3D cutting head provides a very high level of efficiency and insures the achievement of maximum 3-dimensional precision. The maximum cutting angle +/- 60° and automatic angle compensation ensure great precision and practically zero angle on the cutting edge. Perfect tool to minimize post processing.
Water Table - Opal Waterjet cutting machine is equipped with the robust water table with double grid system. Steel, fully tinned (as option) construction insures durability and corrosion resistance. The detached table construction ensures maximum stability and smooth running operations.
ECS872 Control Panel - The most modern i-Vision Controller is the high quality industry machine has Corning® Gorilla® Glass's touchscreen. Efficient parts and the strong construction ensure reliability Onyx working. Many functions of own software and simple controller’s interface let to use all of machine’s possibilities. Standalone controller delivers the unique comfort and safety of machines operator. It make also possible to watching the cutting process and controller’s using at the same moment.
Construction - Opal Waterjet has gantry construction. The machine is made from steel closed profiles which ensure great stability. Rail elements where protected against harmful influence of water with protective bellows or covered by aluminum parts. Relatively low weight of the gantry and specially grounded racks furnishes our Opal Waterjet with excellent dynamics and high precision motors boosts accurate positioning.
