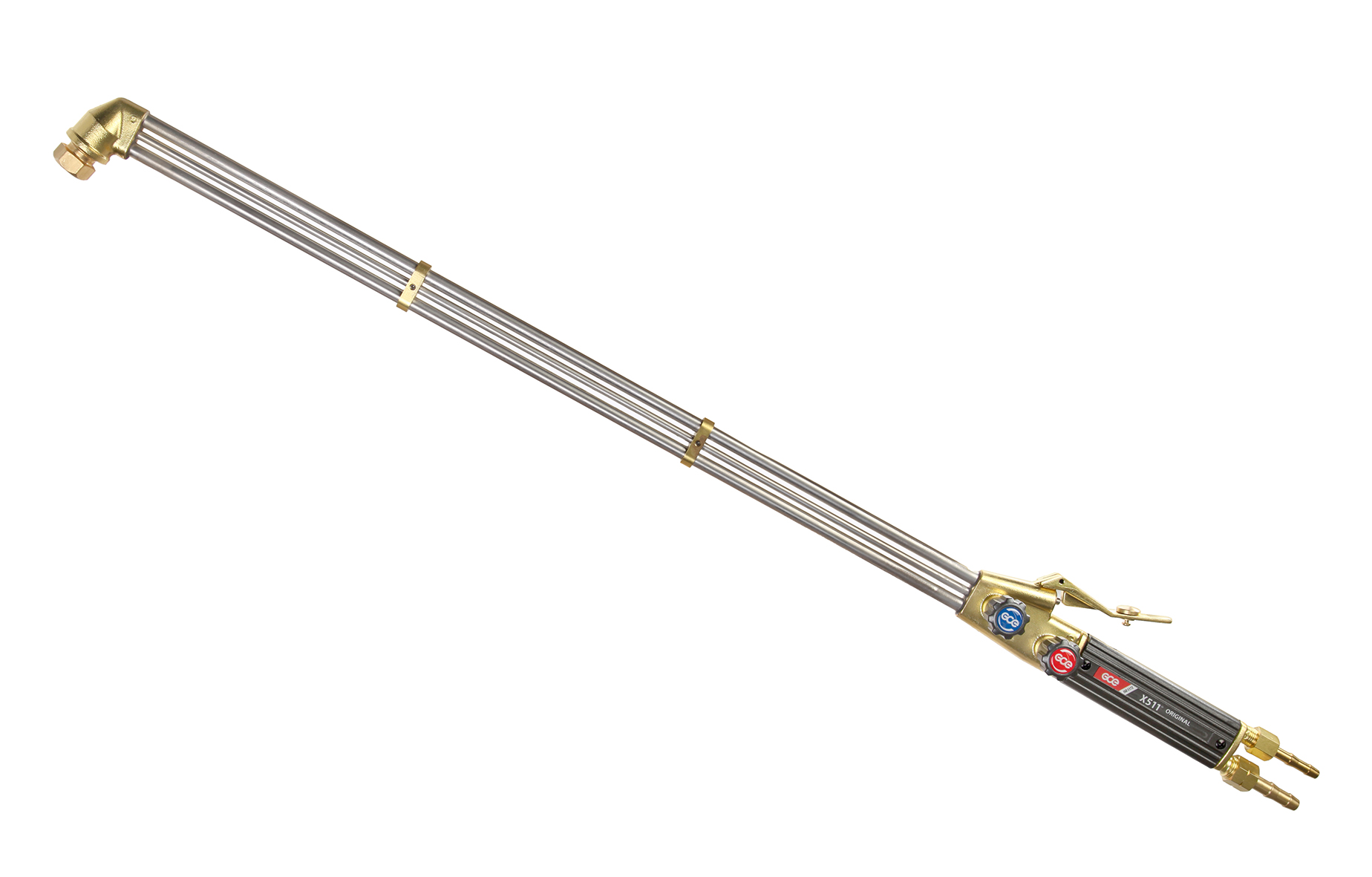

Three-tube cutter, with trigger.
Common Characteristics
Oval handle for positive grip
The valves for regulation of preheating oxygen and fuel gas are forward mounted for easiest control of the flame
The cutting oxygen lever is specially designed to give maximum control of all operations, ideal for piercing, gouging and rivet washing
Length, balance and profile are chosen for best control of operation
Low weight
The knob valves have a self centering stainless steel valve stem for positive seating and long life
High quality brass cutter with stainless steel tubes
Large capacity, cuts sheet 500 mm thick
Not completed with nozzles!
Technical Data
| Parameter | Value |
|---|
| Working gas | ацетилен/пропан; acetylene / propane
|
| Cutting thickness up to | 3-500
mm |
| Length
7/5000
Length | 1155
mm |
| Head angle | 75
° |
| Nozzles, type | HA317/HP337/AGN/PNME
|
| Type of gas mixing | в главата/in head
|
| Tubes | 3
|
| Complete with nuts and nipples | не/no
|
