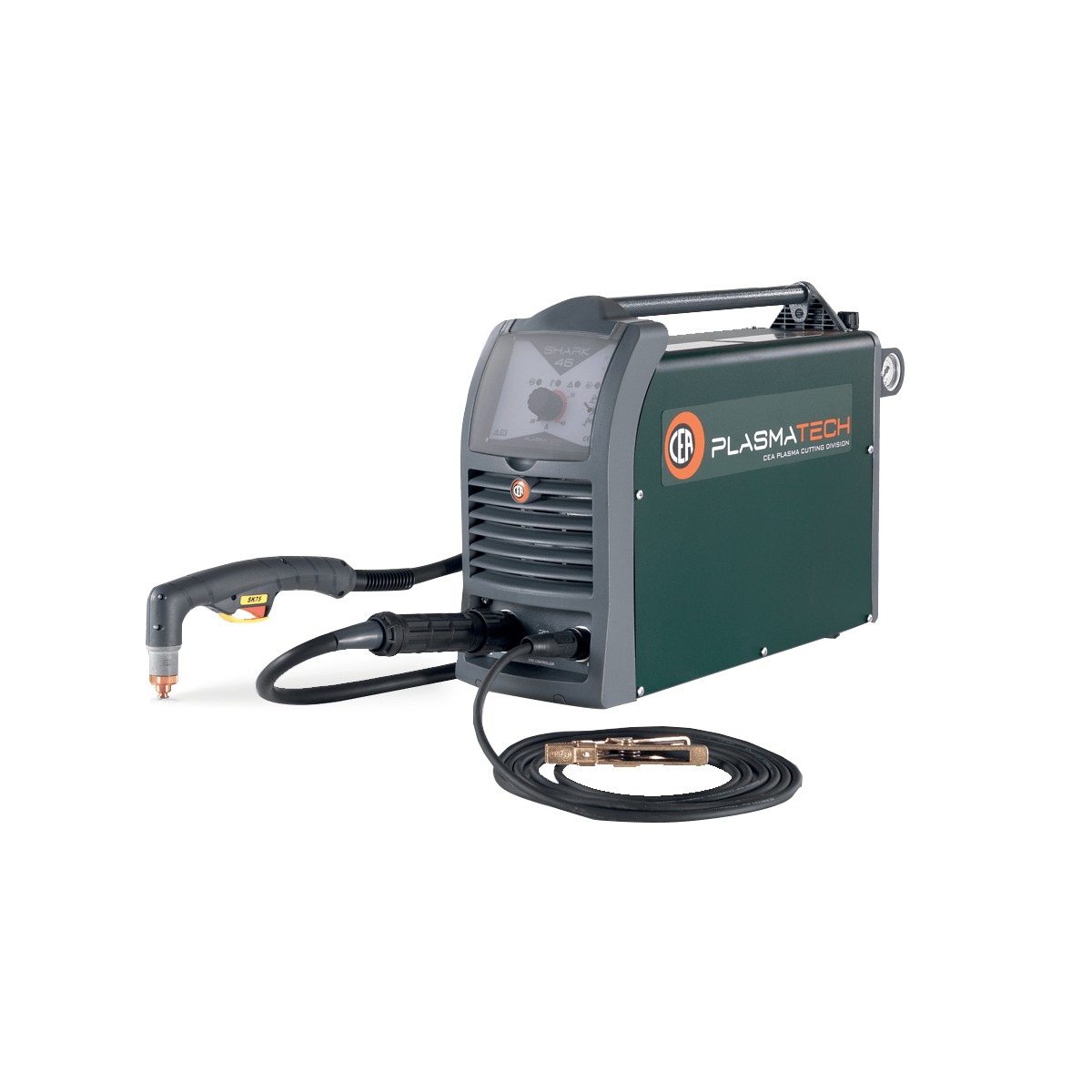

Single-phase manual plasma cutting machine.
Common Characteristics
Powerful, light and compact, the SHARK 46 is the most efficient solution to fully satisfy the cutting needs of automotive repair work, agriculture and maintenance. Its always precise cutting performance enables the highest standards to be achieved in all circumstances.
SHARK 46 is a single-phase manual plasma cutting machine. High-quality cutting is achieved at high speed, thanks to the highly efficient HPC cutting technology of the SK75 torch. It offers a powerful and concentrated cutting arc.
• The Smart Start Transfer and Smart End Cutting functions enable both the initial and final cutting phases in an optimal way.
• "Energy Saving" function to activate the cooling fan only when needed.
Features:
Powerful professional air circulation.
Electronic control for excellent cutting quality.
Long life of consumable parts.
Possibility of cutting grids and perforated lamination sheets.
Contact cutting possibility.
Shockproof and dustproof control rack protection cover.
Torch with pilot arc.
Cutting parameter stability within ±15% mains voltage fluctuations.
Sloping front control panel, easy to read and adjust and highly visible from any direction.
Electric protection on the torch for the maximum safety of the operator.
Technical Data
Parameter | Value |
---|
Input Voltage 50/60 Hz | 230-1ph
V |
Input Power @ I2 max | 5
kVA |
Delayed Fuse (I2 @ 100%) | 16
A |
Power Factor / cos f | 0.99/0.99
|
Efficency Degree | 81
% |
Current range | 20 - 40
A |
Duty Cycle (40°C) 100% | 20
A |
Duty Cycle (40°C) 60% | 30
A |
Duty Cycle (40°C) X% | 40(35%)
A |
Motorgenerator requirement for full capacity | 6
kVA |
Recommended Cutting Capacity | 12
mm |
Maximum Cutting Capacity | 15
mm |
Severange Cutting Capacity | 20
mm |
Piercing Cutting Capacity | 10
mm |
Gas supply | Air / N2
|
Gas Pressure | 5,0 - 5,5
bar |
Gas Flow | 160 - 180
l/min |
Protection Class | 23 S
IP |
Dimensions | 390X185X595
mm |
Weight | 16
kg |
