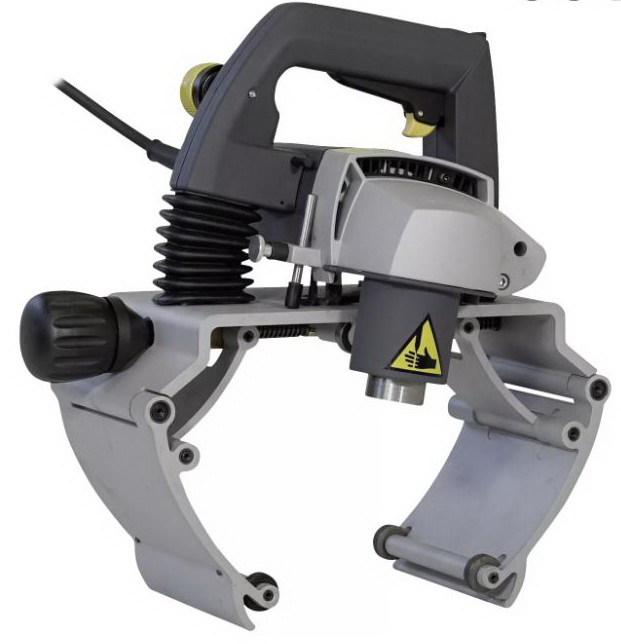

Exact PipeBevel 220E System

The Exact PipeBevel 220E is a portable and lightweight pipe beveller that produces continuous good results for on-site pipe bevelling applications. With this machine you will make easy, fast and consistent bevels to a variety of pipe materials of steels and stainless steels.
The set-up is fast and simple. The clean and user-friendly design makes it fast to mount on pipe sizes 25 mm – 220 mm and up with a maximum wall thickness of 10mm.
The built-in stopper feature enables and makes it easy for the operator to make similar additional bevels to the same pipe outside diameter. This reduces the cycle times dramatically and ultimately improves workflow.
The cutting heads to the PipeBevel 220E are available in the most used bevel angles (30°, 37.5° and 45°). It is also possible to make different ‘tailored’ bevel angles if required. The cutting head is to be ordered separately due to the required varying bevel angle.
The cutting head of the beveller has 3 cutting tips, each of them having 4 cutting edges to rotate once becoming blunt. Thanks to this, you will have a prolonged beveller blade tip life. The cutting tips are also ordered separately.
The user interface of the machine is similar to Exact pipe saws, which makes it easy for the operator to adapt after cutting a pipe with any Exact pipe saw.
Suitable for pipes of steels and stainless steels.
Suitable for pipe sizes of 25 mm – 220 mm (0.98”- 8.6”) and up with a wall thickness of 10mm (0.39”).
Does not create flames or sparks.
External cutting head is available in three bevel angles (30°, 37.5° and 45°).
Easy, fast and consistent bevels.
Fast and simple set-up.

The price includes
PipeBevel 220E beveller
Shoulder bag
Pipe support x 2
Instructions
Allen key 5 mm

Not included, ordered separately
Exact Cutting Head
Exact PipeBevel Tips
