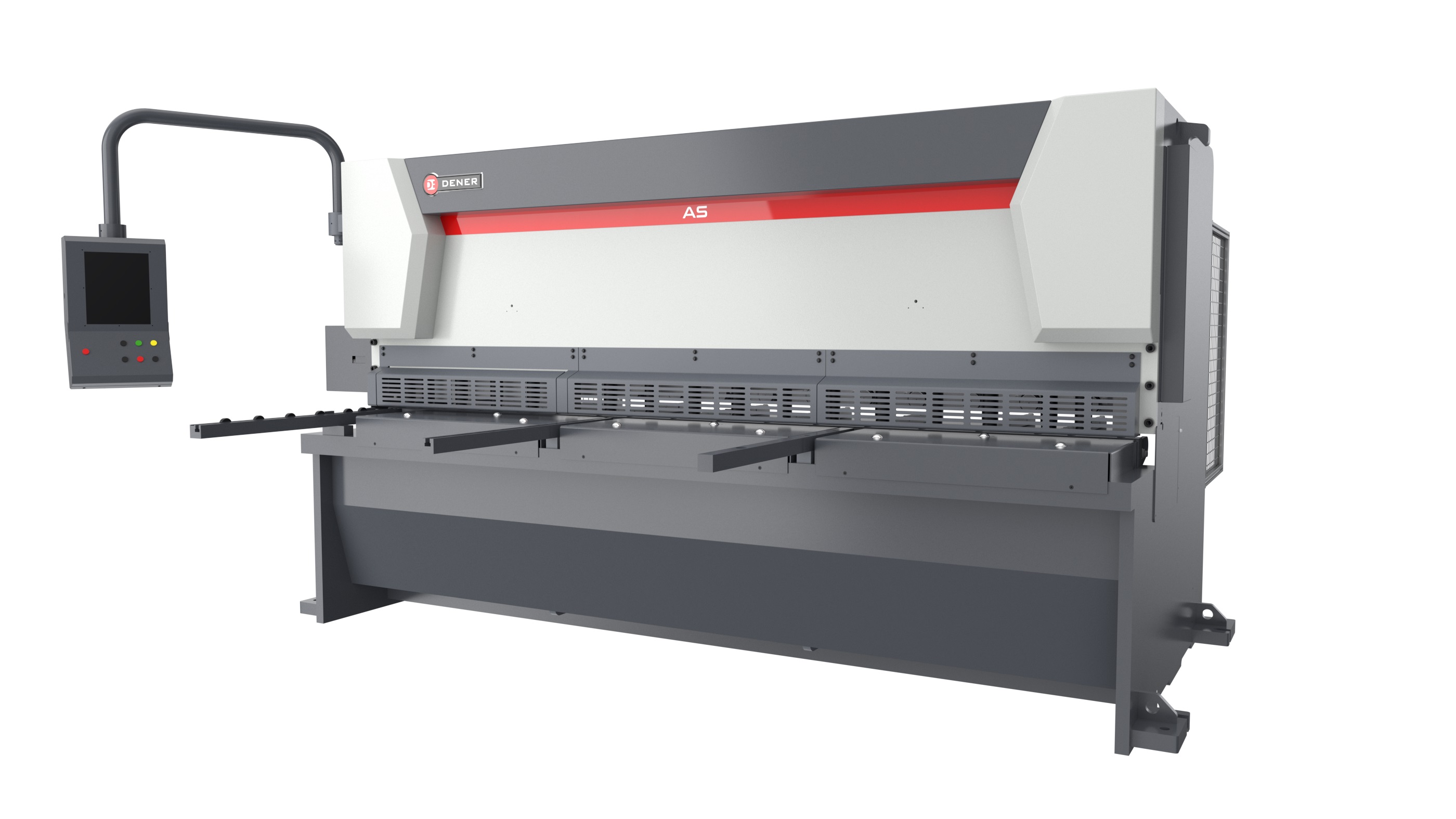

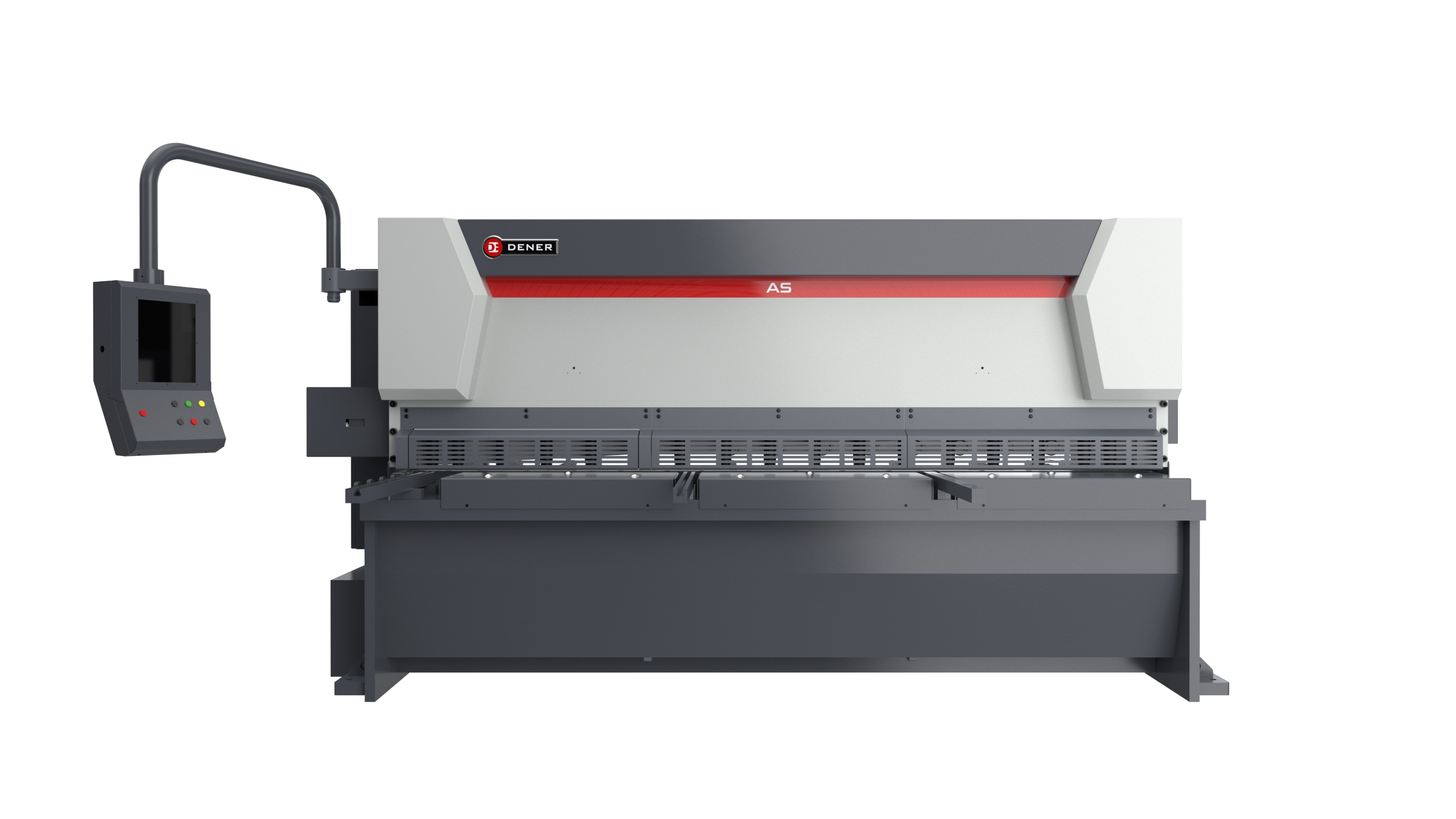

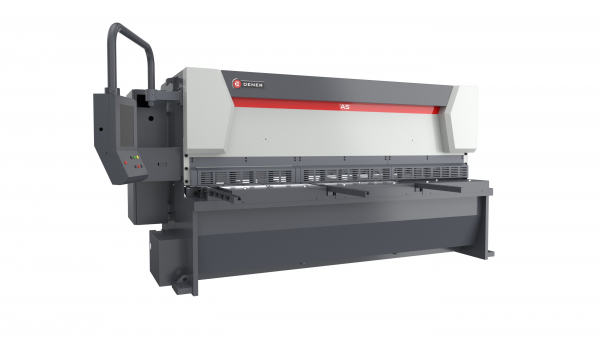

Guillotine Shears DENER AS series CNC

Dener CNC Guillotine Shears provide, rock solid mechanics, hydraulic, accurate ball screw back gauge, user friendly CNC Controller high productive shearing machines. Dener Shears are starring from 6 mm up to 20 mm thickness cutting length from 3 m up to 6 m as a standard and according to the special demanded higher capacity machines are available.
Common Characteristics

Dener Guillotine Shears have strong welded steel construction suitable for long operation time. The design of the frame, cutting beam and back gauge to ensure highest rigidity and resistance to torsions and deformations. With the strong design customers can get maximum cutting quality. With Easy to use CNC controller operator enters the thickness and the type of the material and controller automatically adjust the cutting angel and blade gap.



STANDARD EQUIPMENT: ESA S 530 CONTROLLER

  • 10" LCD Touch Screen
  • Back gauge control
  • Blade gap control
  • Cutting angel control
  • Cutting length adjustment
  • Programmable up to 100 steps
  • Positioning correction
  • Step repetition
  • Inch/mm selection
  • 2 USB (2.0) ports
  • 128 MB silicon disk

AS series CNC guillotine shear AS 3006 AS 3010 AS 3013 AS 3016 AS 3020
Cutting lenght (mm) 3035 3040 3040 3060 3060
Cutting capacity(mild steel) (mm) 6 10 13 16 20
Cutting angle (°) 0.5-3 0.5-3 0.5-3 0.5-3 0.5-3
Hold down pads number (pcs) 15 17 16 16 16
Main motor (kW) 11 22 30 30 37
Cutting pcs (0.5-3°) (pcs) 29-12 20-11 17-8 13-6 12-5
Oil tank capacity (lt) 200 300 400 500 750
Lenght (mm) 3775 3850 3850 3870 3910
Width without front support (mm) 2300 2320 2350 2340 2370
Width (mm) 2955 2960 3270 3315 3392
Height (mm) 2260 2160 2260 2280 2640
Weight (kg) 8300 10500 13400 15500 21500

AS series CNC guillotine shear AS 4006 AS 4010 AS 4013 AS 4016 AS 4020
Cutting lenght (mm) 4065 4065 4065 4065 4065
Cutting capacity(mild steel) (mm) 6 10 13 16 20
Cutting angle (°) 0.5-3 0.5-3 0.5-3 0.5-3 0.5-3
Hold down pads number (pcs) 23 21 21 26 26
Main motor (kW) 11 22 30 30 37
Cutting pcs (0.5-3°) (pcs) 23-9 20-11 13-6 13-6 12-5
Oil tank capacity (lt) 200 300 400 500 750
Lenght (mm) 4830 4860 4850 4930 4950
Width without front support (mm) 2300 2220 2350 2300 2400
Width (mm) 2965 3170 3160 3300 3390
Height (mm) 2130 2430 2360 2200 2570
Weight (kg) 11500 14900 18000 21000 27000

AS series CNC guillotine shear AS 6006 AS 6010 AS 6013 AS 6016 AS 6020
Cutting lenght (mm) 6125 6125 6125 6125 6125
Cutting capacity(mild steel) (mm) 6 10 13 16 20
Cutting angle (°) 0.5-2.5 0.5-2.5 0.5-2.5 0.5-2.5 0.5-2.5
Hold down pads number (pcs) 31 31 31 31 31
Main motor (kW) 11 22 30 45 45
Cutting pcs (0.5-3°) (pcs) 14-6 11-5 11-5 10-5 10-5
Oil tank capacity (lt) 475 500 400 750 750
Lenght (mm) 6910 6930 7090 7200 7200
Width without front support (mm) 2200 2400 2400 2550 2700
Width (mm) 3610 3630 3185 3700 3700
Height (mm) 2780 2780 2665 2780 2780
Weight (kg) 22000 25000 35500 49500 55000
