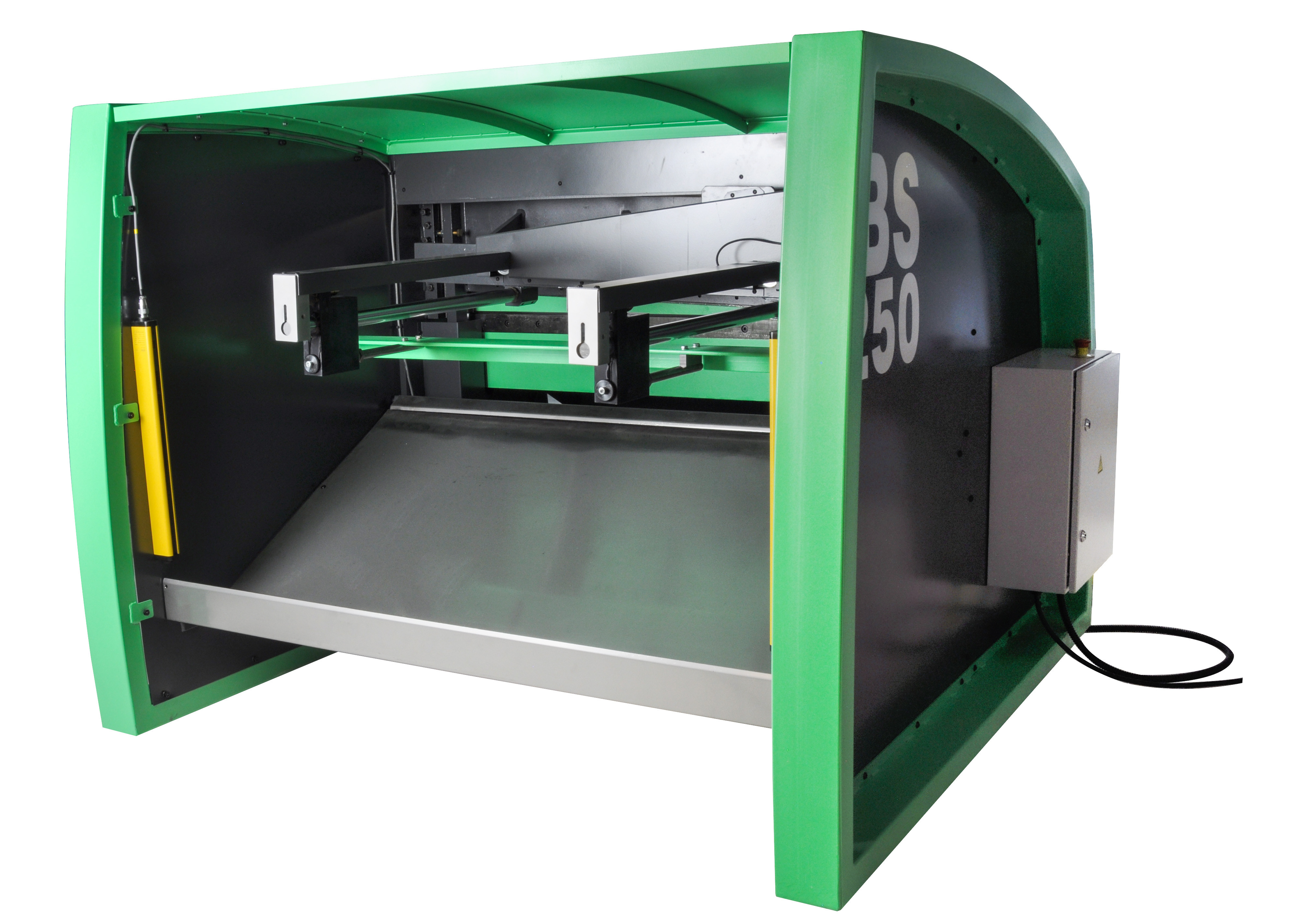

Motorised guillotine shear JBS 1250/3,0 M
Common Characteristics
The new JBS shears are developed with focus on design, quality, functionality and ergonomics.
Design: New round shape with soft corners - timeless and modern Quality: Manufactured from the best materials and components - at our production in Poland.
Functionality: RTO patented feature which automatically direct cut pieces below 400mm of length out at the front to the operator.
Ergonomics: The cut-piece falls into a tray which is placed ergonomically correct for the operator and allows the operator to keep gloves on and remove the cut-piece without having to bend all the way to the floor.
Service: New developed knife gab adjustment for easy adjustment from the front of the shear when replacing knives.
JBS shears are as standard equipped with:
• Return to operator feature • Cut counter
• Motorized back gauge fully adjustable from the front
• Mirror illumination of the cutting line by LED light
• Table extensions of 600 mm (2 pcs.)
• Rear light-guarding system
• Double eccentric drive on cutter bar
• Self-lubricating guide-ways
• Low knife angle and burr free cutting
• Rubber coated sheet hold-down
• Single or multi-cutting option for better efficiency
• Moveable foot pedal with emergency stop
Technical Data
Parameter | Value |
---|
Length | 2100
mm |
Width | 2000
mm |
Height | 1500
mm |
Net weight | 1160
kg |
Motor | 3,0
kW) |
Capacity | 1275 x 3,0
mm |
Cutting angle | 2,15°
C |
Cutting/min. | 40
mm |
