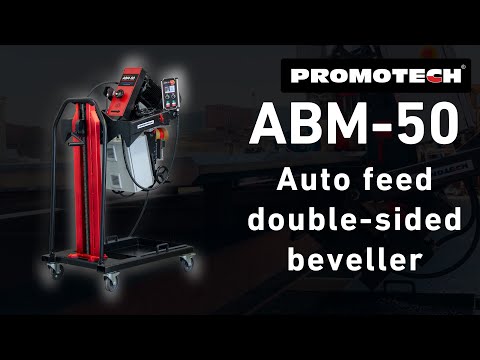

ABM-50 can create a double-sided bevel eliminating the need to turn a plate over
Common Characteristics
auto-feed portable beveller
real-time measurement and on-screen display of exact bevel geometry and cutting parameters
bevel width up to 50 mm (2”) at 45 degrees
180° inversion allows for creation of a double-sided bevel – no need to rotate or flip heavy material reduces material handling costs and improves shop safety
variable spindle speed for work on a variety of steel grades and thicknesses
versatile and transportable on its own trolley
equipped with milling head including 8 replaceable inserts
feedback-controlled overload system
Technical Data
| Parameter | Value |
|---|
| Voltage | 400
V |
| Power | 6500
W |
| Spindle speed (without load) | 300-800
rpm |
| Bevel angle (depending on milling head) | 15-60
|
| Maximum bevel width | 50
mm |
| Minimum workpiece thickness | 320
mm |
