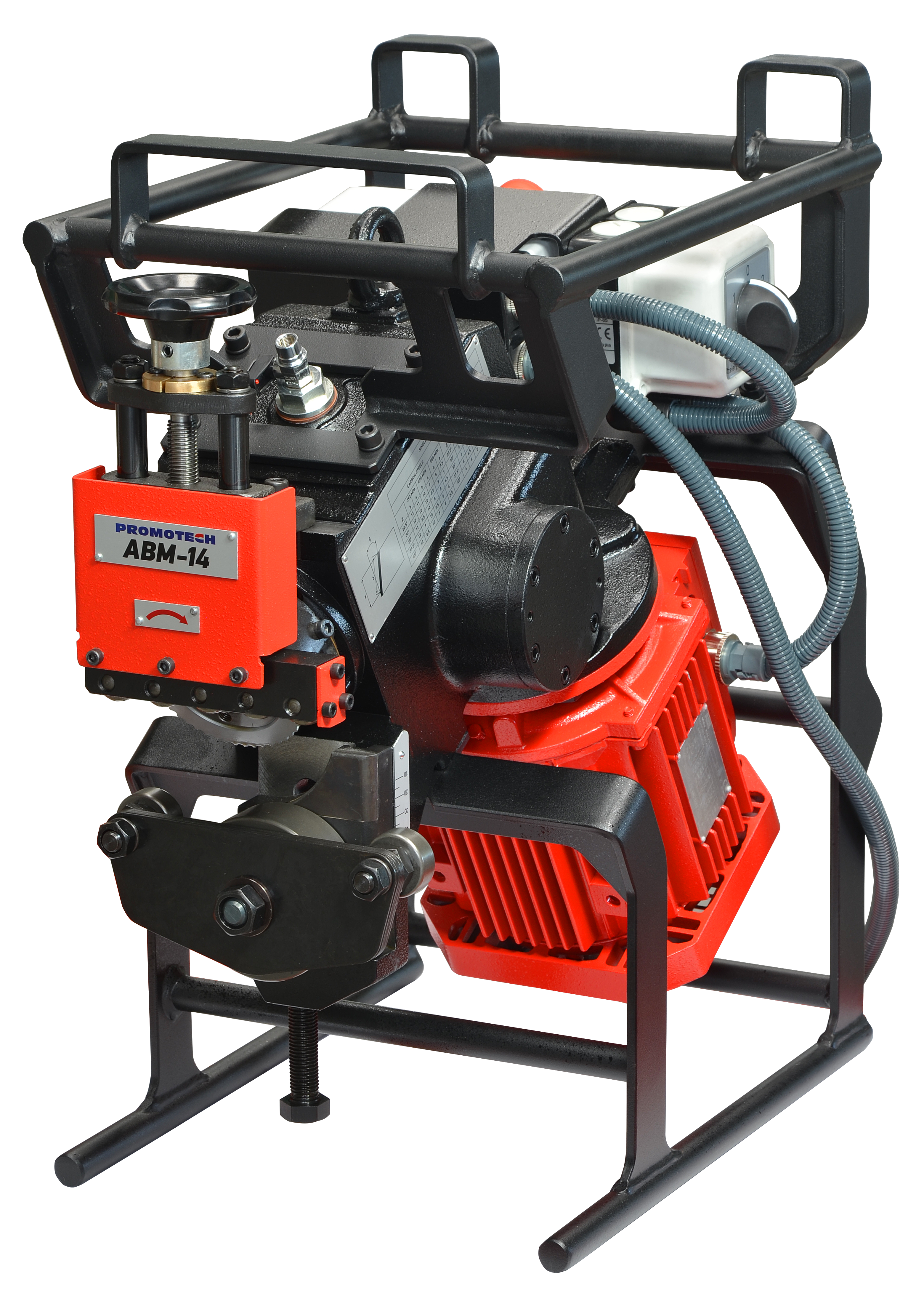

ABM-14 is a beveling machine designed to mill plates and pipes made of carbon steel, alloy steel, stainless steel or aluminum alloys
Common Characteristics
• fast and efficient
• bevels both small and large pieces to cover most of the common applications for its type

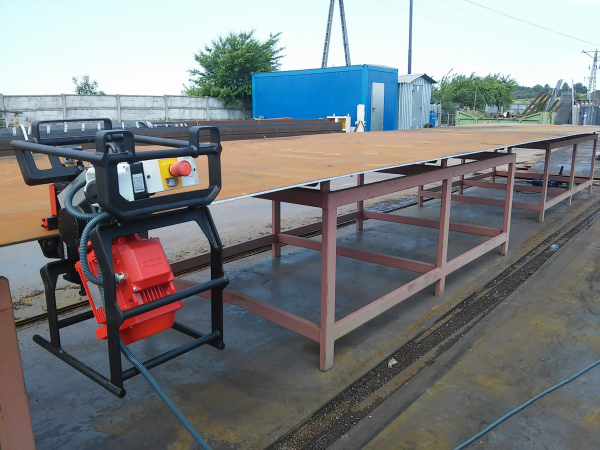

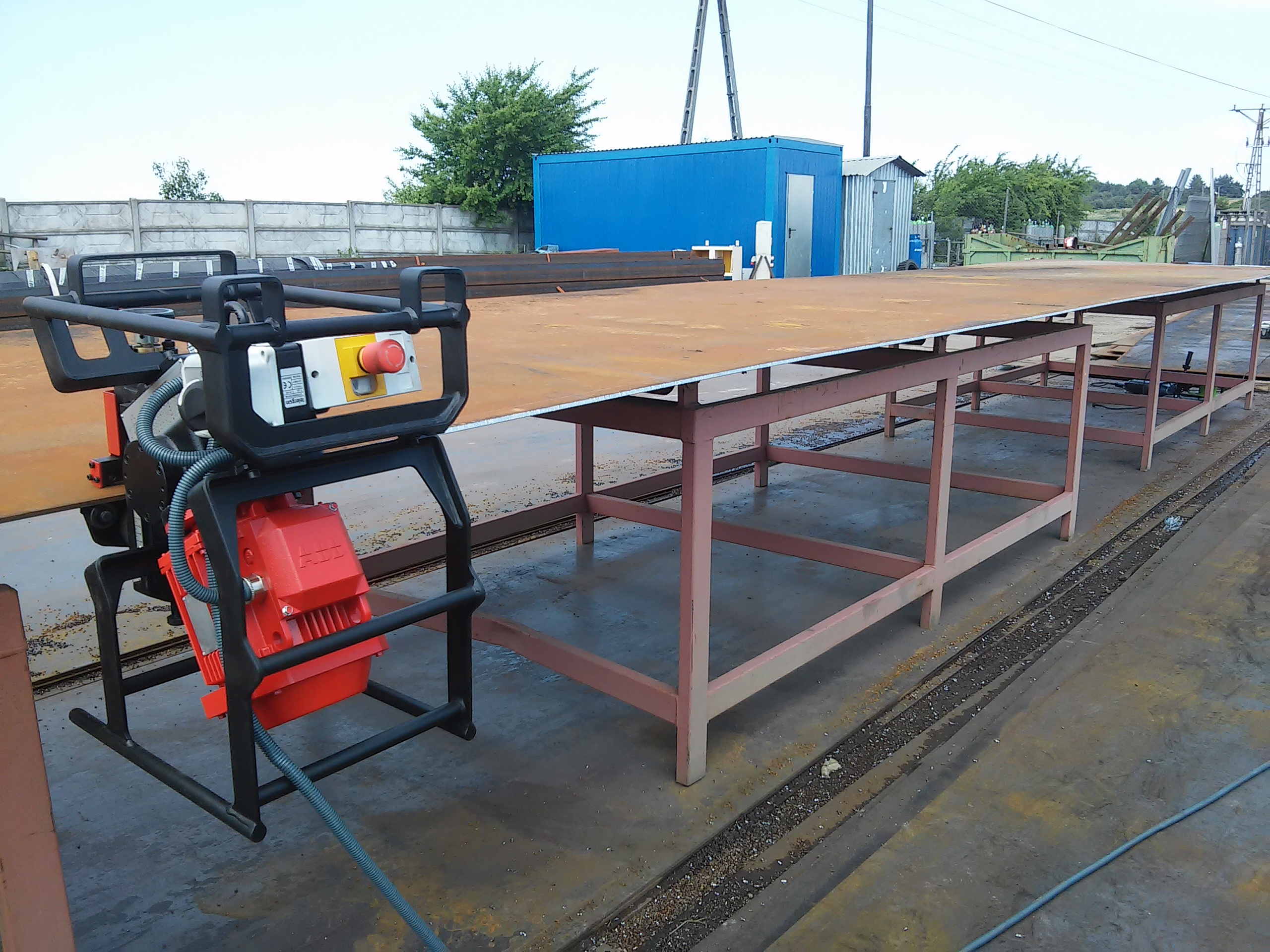

• auto feed on large plates with optional trolley

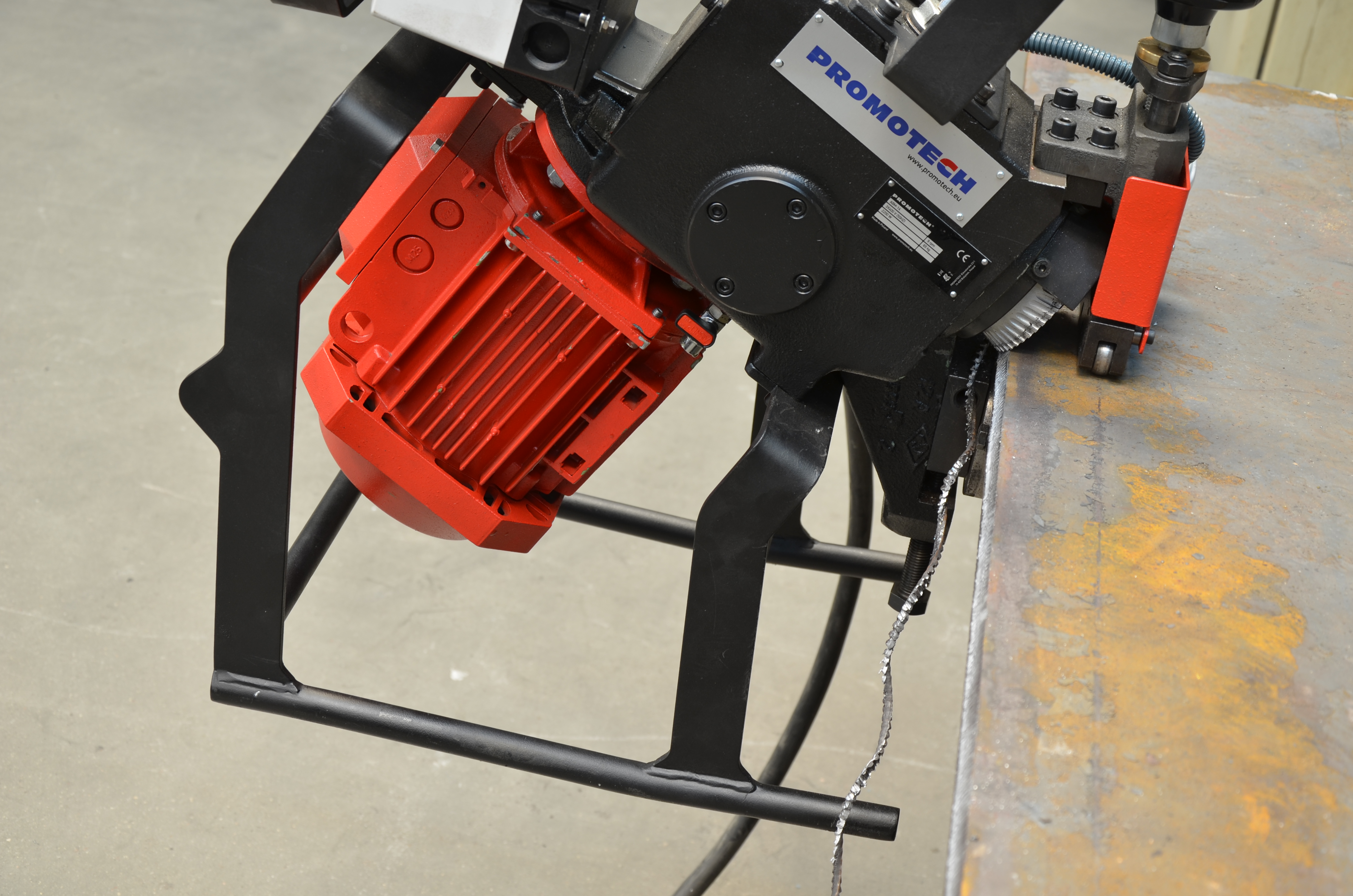

• beveling of lower edge in inverted position
• standard shearing cutter for machining stainless/alloyed steel
• 2 optional shearing cutters dedicated to carbon steel and to aluminum
• reversible spindle against stuck milling tool
• versatile and transportable on its own trolley
• low noise
Technical Data
| Parameter | Value |
|---|
| Voltage | 3¬ 400
V |
| Power | 2200
W |
| Spindle speed (without load) | 9
rpm |
| Bevel angle (depending on milling head) | 30
|
| Maximum bevel width | 14
mm |
| Minimum workpiece thickness | 65
mm |
