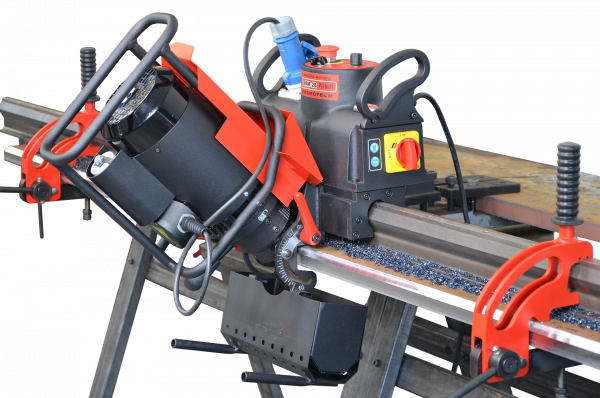

ABM 28 is portable beveling machine performs auto feed beveling on steel plates on top, front and bottom edges. It can perform beveling along steel plate’s edge in both travel directions.
Common Characteristics
Auto-feed portable beveling
Continuously adjustable bevel angle between 60 and minus 60 degrees, eliminating the need to turn a plate over
Max. bevel width (depending on the beveled angle) from 28 up to 35mm
Variable feed control for work on a variety of steel grades and thicknesses (up to 35 mm as standard or optionally up to 70mm)
Beveling in both travel directions
Motor overload protection
J groove beveling available as option
Quick setup
Extendable rails
Technical Data
| Parameter | Value |
|---|
| Voltage | 220-240
V |
| Power | 1600
W |
| Spindle speed (without load) | 2780
rpm |
| Bevel angle (depending on milling head) | +60/-60
|
| Maximum bevel width | 35
mm |
| Minimum workpiece thickness | 53.5
mm |
