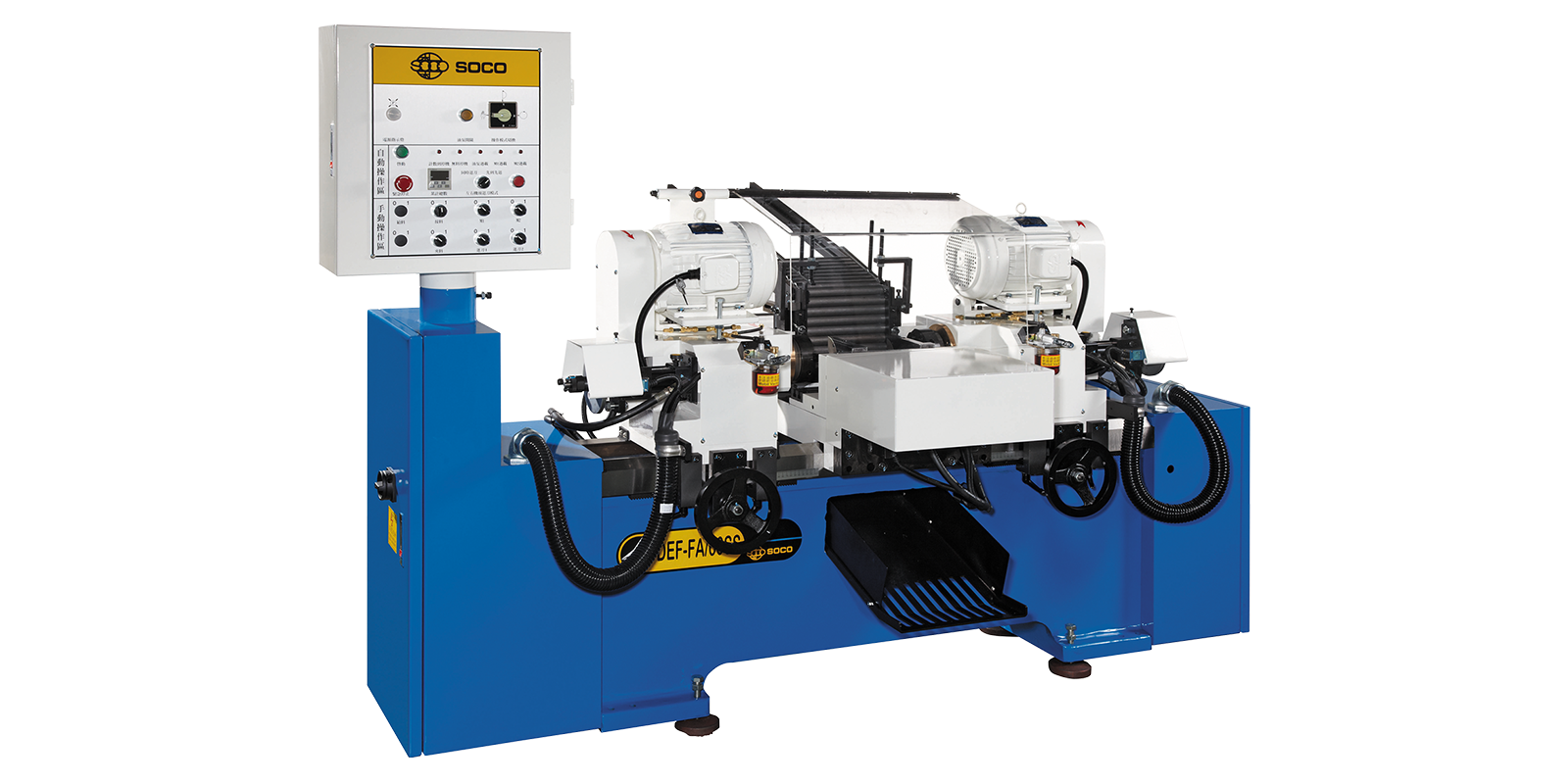

SOCO DEF-FA85SS is ideal for chamfering short working lengths from 25 mm to 300 mm.
Common Characteristics
SOCO DEF-FA85SS is ideal for chamfering short working lengths from 25 mm to 300 mm. With an optional BTM, the machines offer a completely automatic loading, feeding, and chamfering process. This range is suitable for clean and even chamfer both ends of the tube, as well as the radius (round) chamfering and chamfering the inside + outside and face of the material. It can also be used for outside chamfering of solid bars.
Automatic Loading, Feeding and Chamfering. Fully Automatic Loading, Feeding and Chamfering

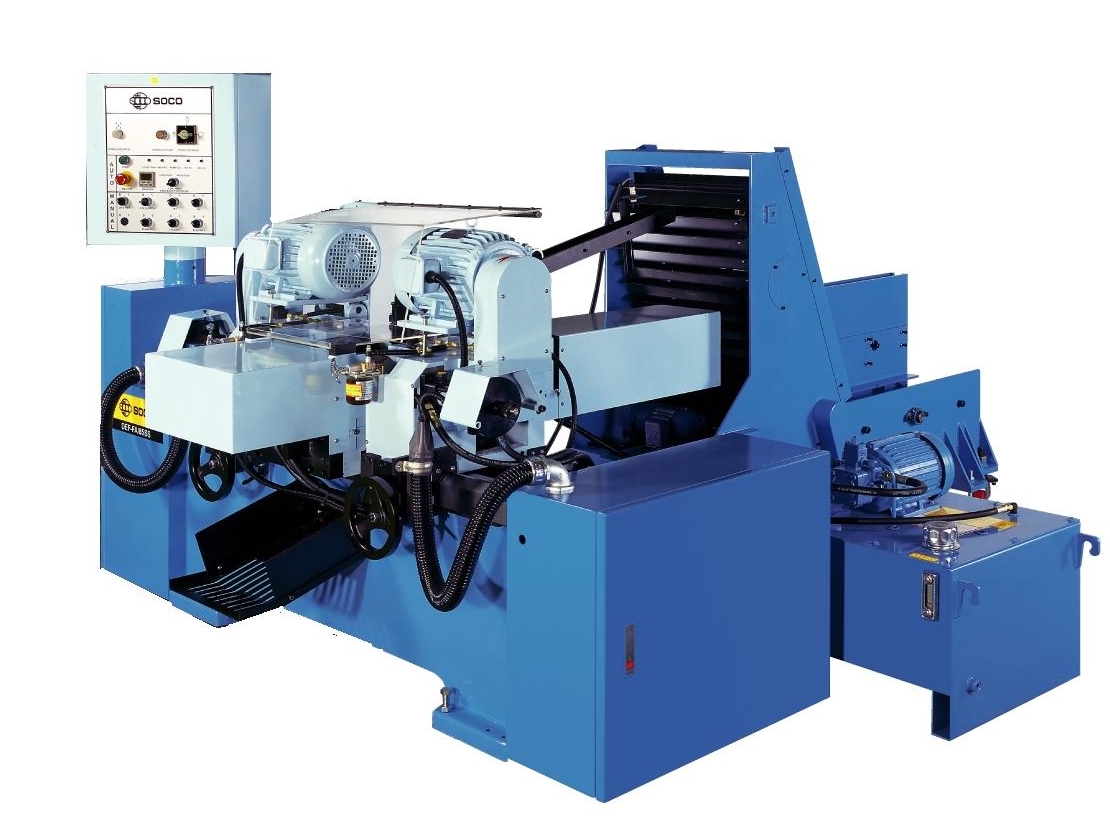

Fully automatic chamfering system, with 2 types of loading magazine:
Rack – Sliding Magazine ( Standard )
BTM – Bundle Loading Magazine (Optional )

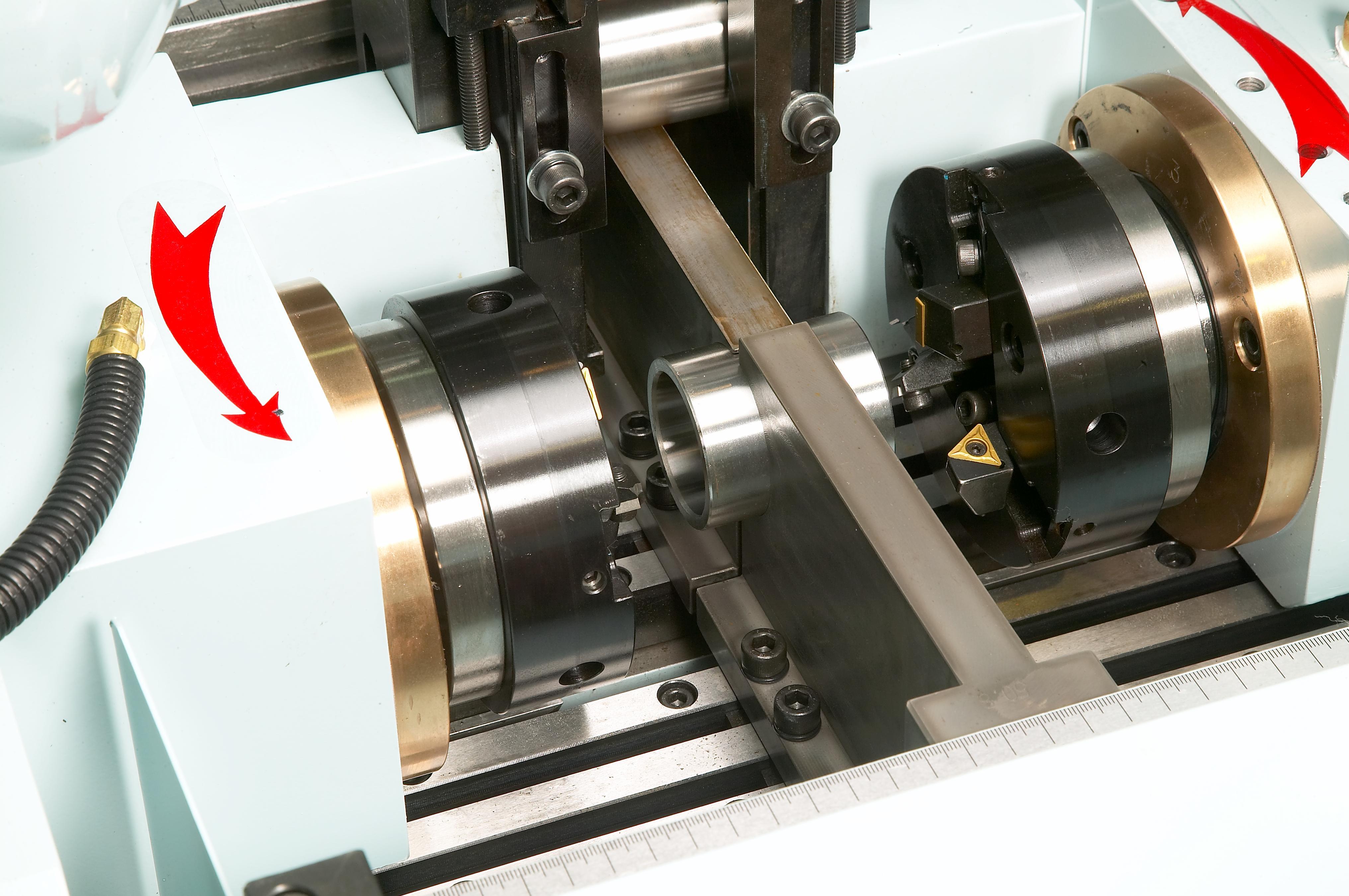

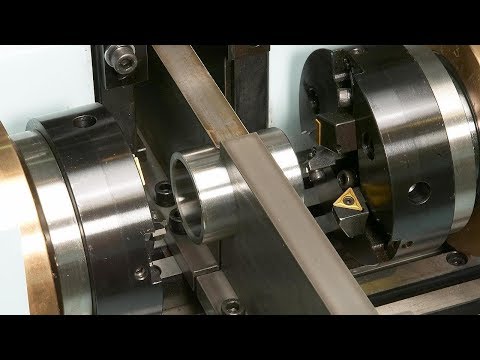

External and internal chamfering with facing in one process for double sides of tube, with optional radius (round) chamfering.
Optional motorized length adjusting and RPM speed inverter
Min. 25mm Working Length
Ability to inside + outside ( I/O ) chamfer as deep as 15mm or angles as small as 15 degrees
CE Safety Cover
Technical Data
| Parameter | Value |
|---|
| Working capacity tube | 25-85
mm |
| Working capacity bar | 25-85
mm |
| Working length | 25-300
mm |
