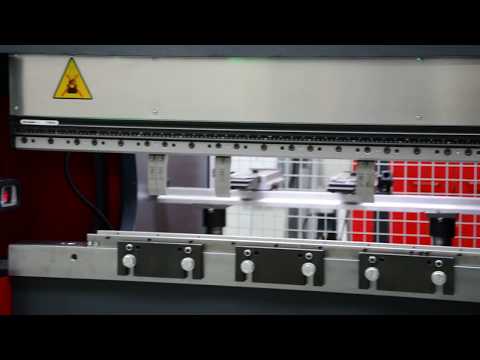

Ball Screw Press Brakes Dener are no-hydarulic, flexible, reliable and advance bending machines. A next generation machine idea that combines green-eco firendly machines productivity, accuracy, flexibility and reliability. The new concept offers low energy consuption, less maintenance, without hydarulic oil for operation.
Ball Screw Press Brake comes with advance CNC controller, fast and accurate punch and die clamping multi axis back gauge system. Operators can easily make metal parts at a very low cost.
Common Characteristics
Control Unit ESA S 640
- 15" color touch screen.
- Automatic bend sequence.
- Easy programmable 2D graphic display.
- 2D Simulation
- Control Unit ESA 875 W (Optional)
Back Guage
2 axis back gauge handles complex parts with ease. (5 axis optional - Z1, Z2 and X - Prime with ESA 660 controller)
HIgh speed movement combined with high accuracy drives ensures the back gauge is positioned quickly and precisely every time for the operator.
|
|
DDS 4013 |
DDS 2090 |
|
Bending length (B), mm |
1300 |
900 |
|
Bending Capacity, ton |
40 |
20 |
|
Daylight (Q), mm |
375 |
375 |
|
Maximum Stroke, mm |
150 |
150 |
|
Y Axis (Approaching, bending, Return) |
150/20/150 |
150/20/150 |
|
Motor Power, kW |
2x3,8 |
3,8 |
|
Lenght (A), mm |
1880 |
1280 |
|
Width (C), mm |
2435 |
1760 |
|
Height (D), mm |
2320 |
2190 |
|
Weight (Appr.), kg |
3400 |
2000 |
