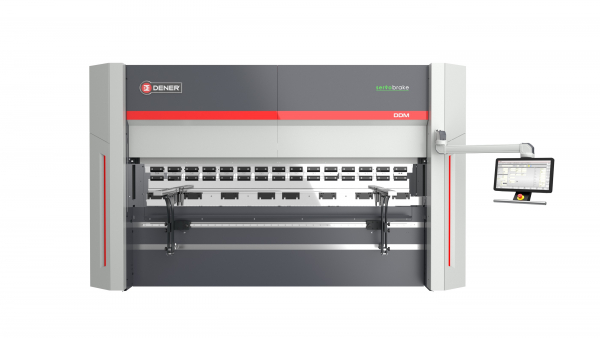

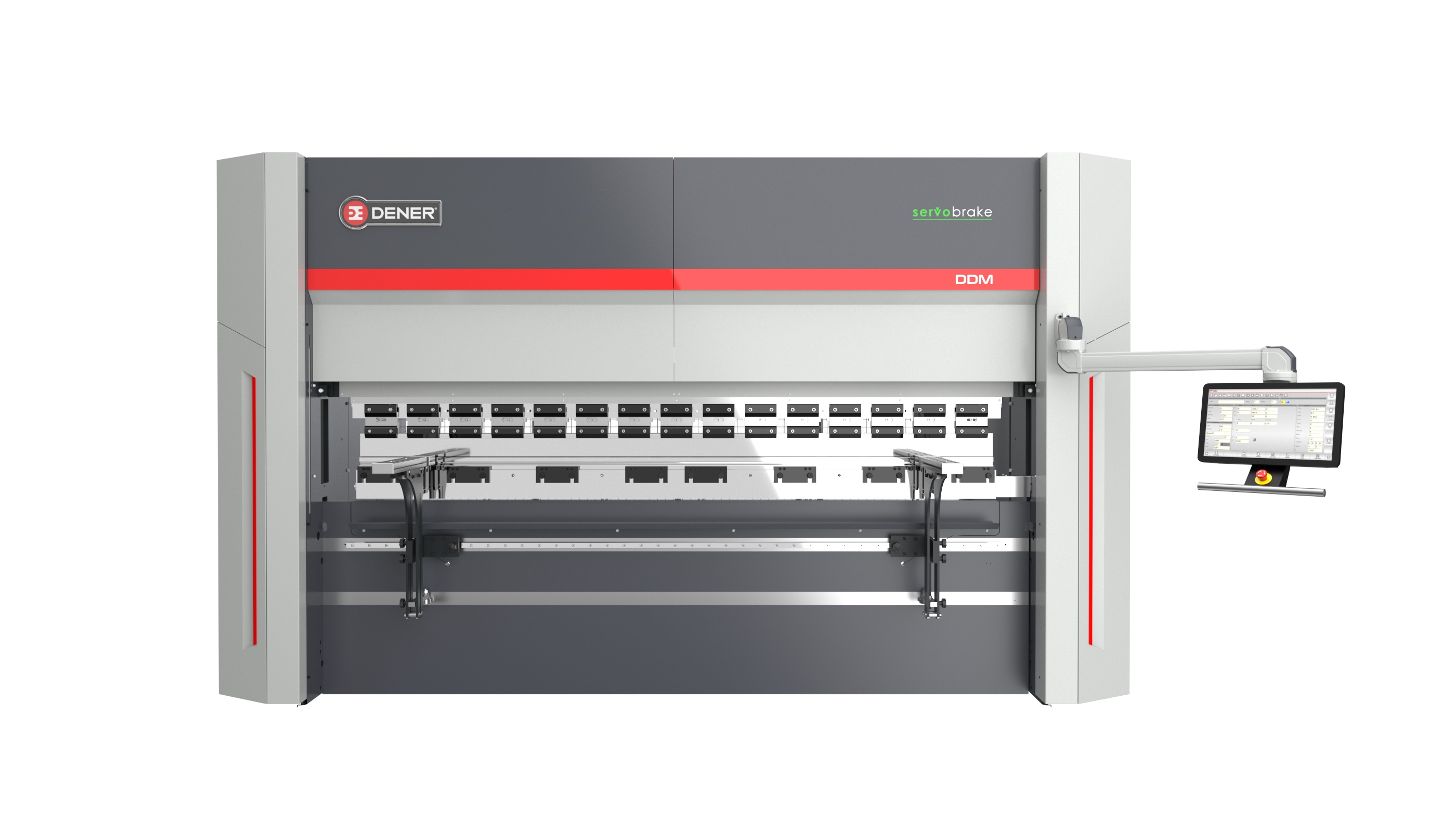

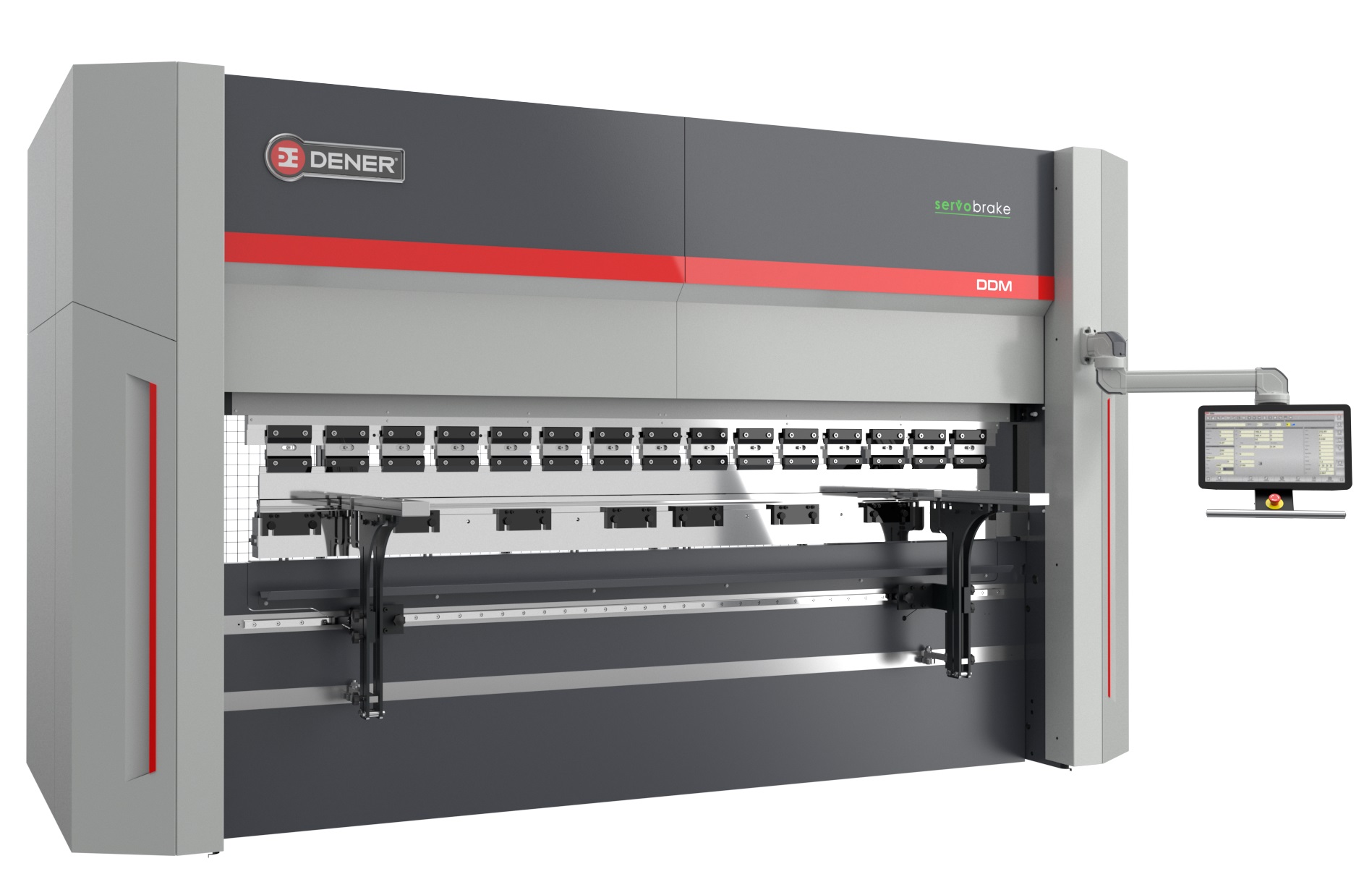

Servo Electric Press Brake comes with advance CNC controller, fast and accurate punch and die clamping multi axis back gauge system. Operators simply make perfect sheet metal parts with very low cost.
Common Characteristics
Dener CNC Servo Electric Press Brakes are no-hydarulic, flexible, reliable and advance bending machines. Next generation machine idea combines green-eco firendly machines productivity, accuracy, flexibility and reliability.
100 % Pure electric power, no oil
Up to 50% less energy eonsumption than hydraulic press brake
High efficiency and precision.
High bending speed and less noise.
Full bending length between side frames.
Less maintenance cost.
Eco friendly.

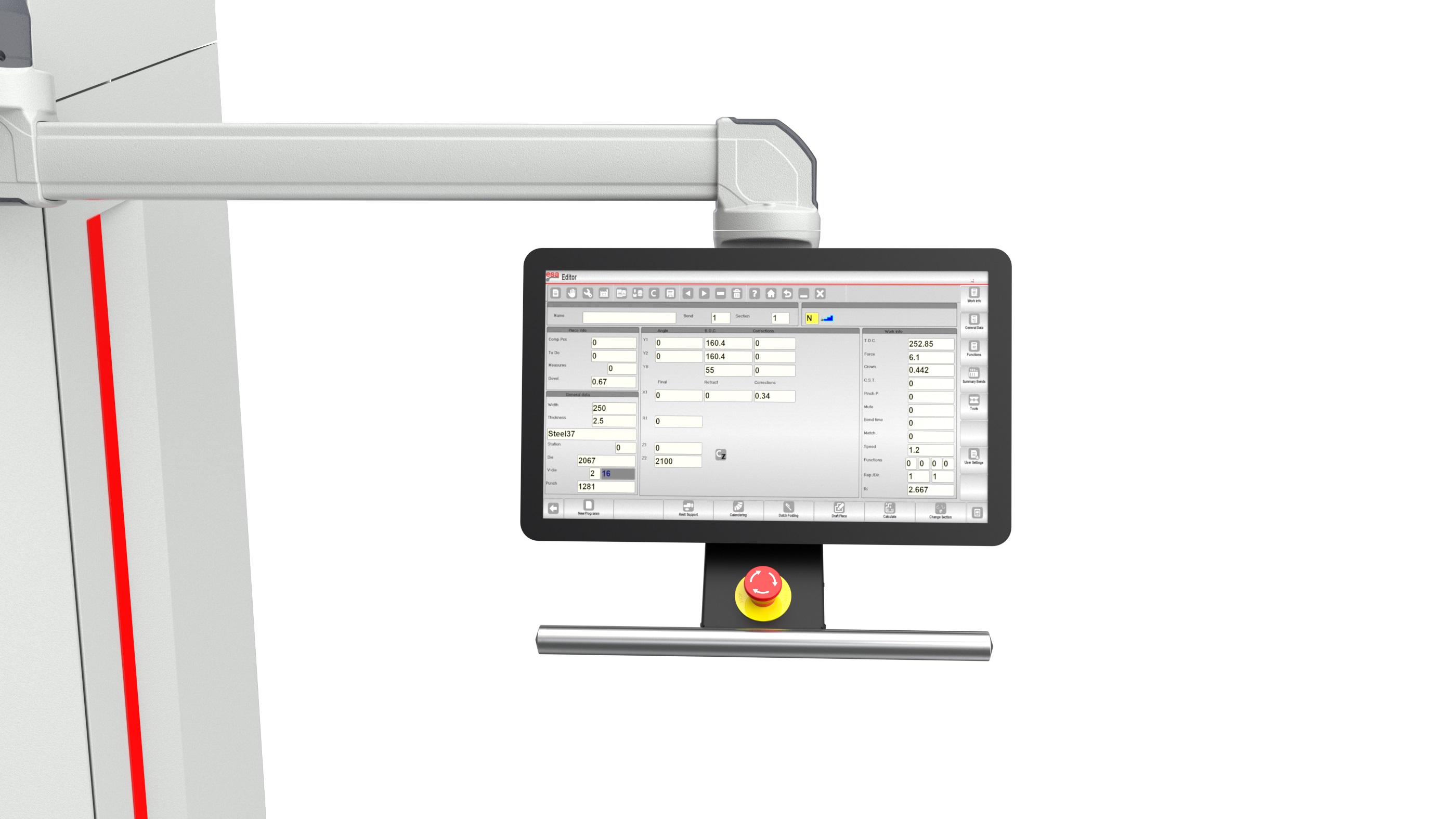

Friendly user interface.
Auto bending step calculation for STEP and DXF files.
Up to 35 % faster than hydraulic press brake.
Technical Data
| Parameter | Value |
|---|
| Bending capacity | 100
t |
| Bending length | 3050
mm |
| Max stroke | 300
mm |
| Distance Between Tables | 590
mm |
| Apprcachng Speed | 75
(mm/sec) |
| Bendng Speed | 20
(mm/sec) |
| Return Speed | 75
(mm/sec) |
| Man Motor Power | 11
kW |
