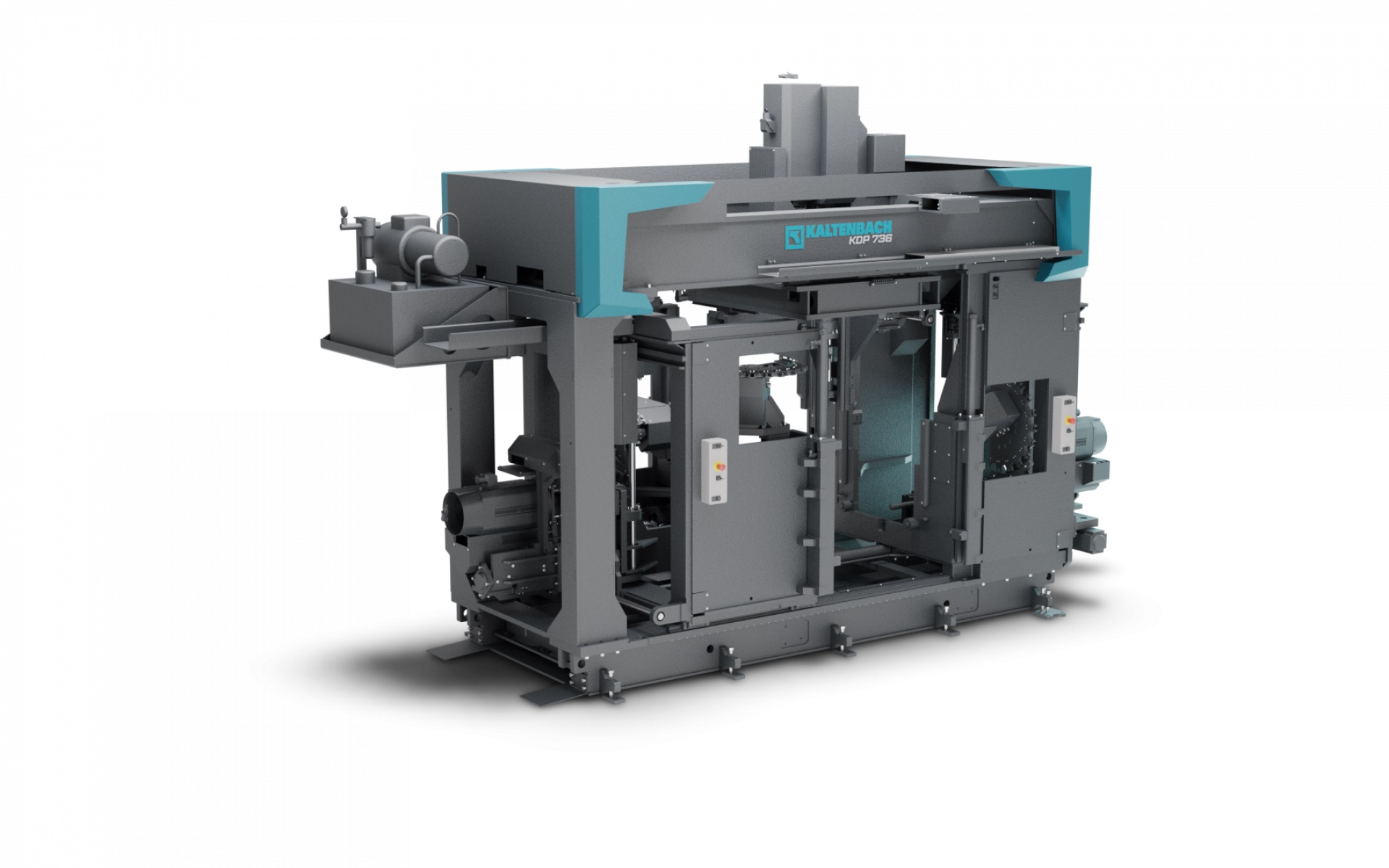

Drill line with workspace [mm]: 1330 x 600 and number of tools: 36
Common Characteristics
General features
• Efficient drilling, milling, marking, threading and countersinking
• Powerful clamping system for longer tool use
• Intelligent material measurement for greater process reliability
• Servo motor and ball screw for maximum precision
• Lager tool changer for 12 tools per axis for less setup times
• Additional sub-axis of 500mm for parallel processing.

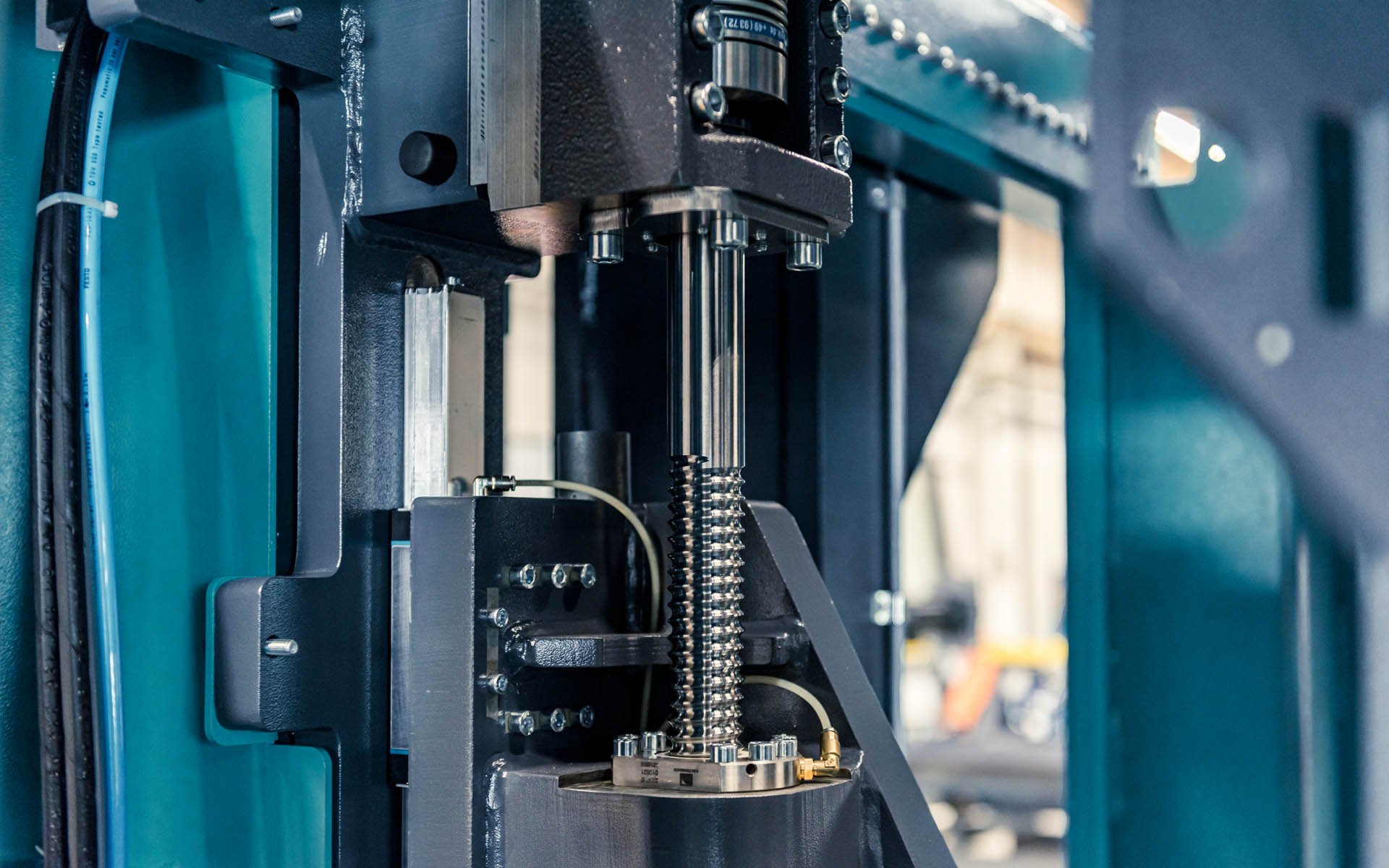

Clamping system
Horizontal and vertical vice for less vibration
Powerful clamping system for best fixation and precision
Automatic tool changer
Fast tool changer for 12 tools per axis
Automatic tool length measurement
Chip conveyor
Contour Marking
Fast and flexible marking for characters and geometries
Marking on up to 4 material pages
Signature embossing
Quickly mark numbers and letters
Embosses up to 21 characters in parallel without material movement
Markings are visible even after blasting and painting

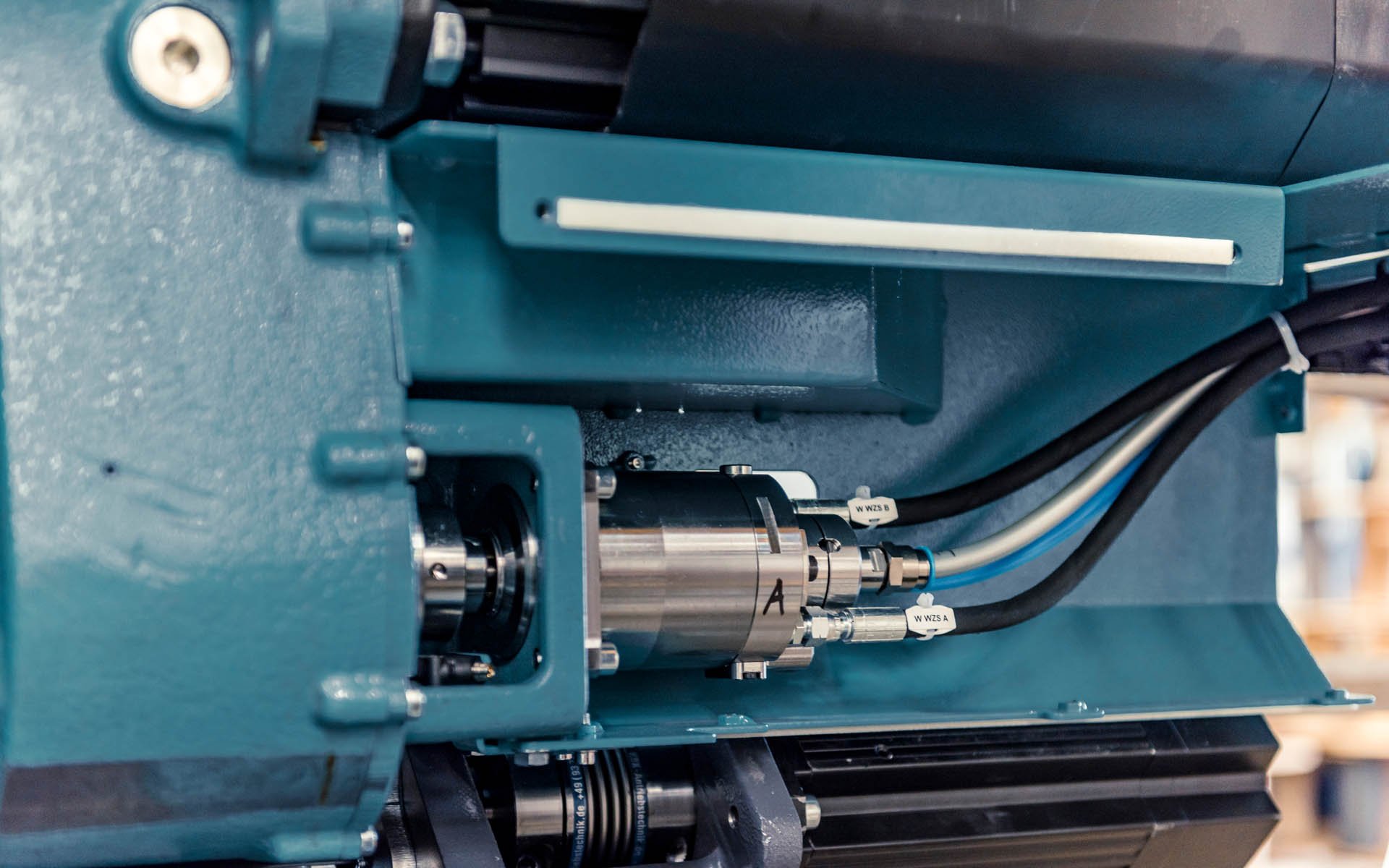

Drilling spindles
Provided Technologies are drilling, milling, tapping, countersinking and marking
Powerful and fast processing
Outstanding drilling performance

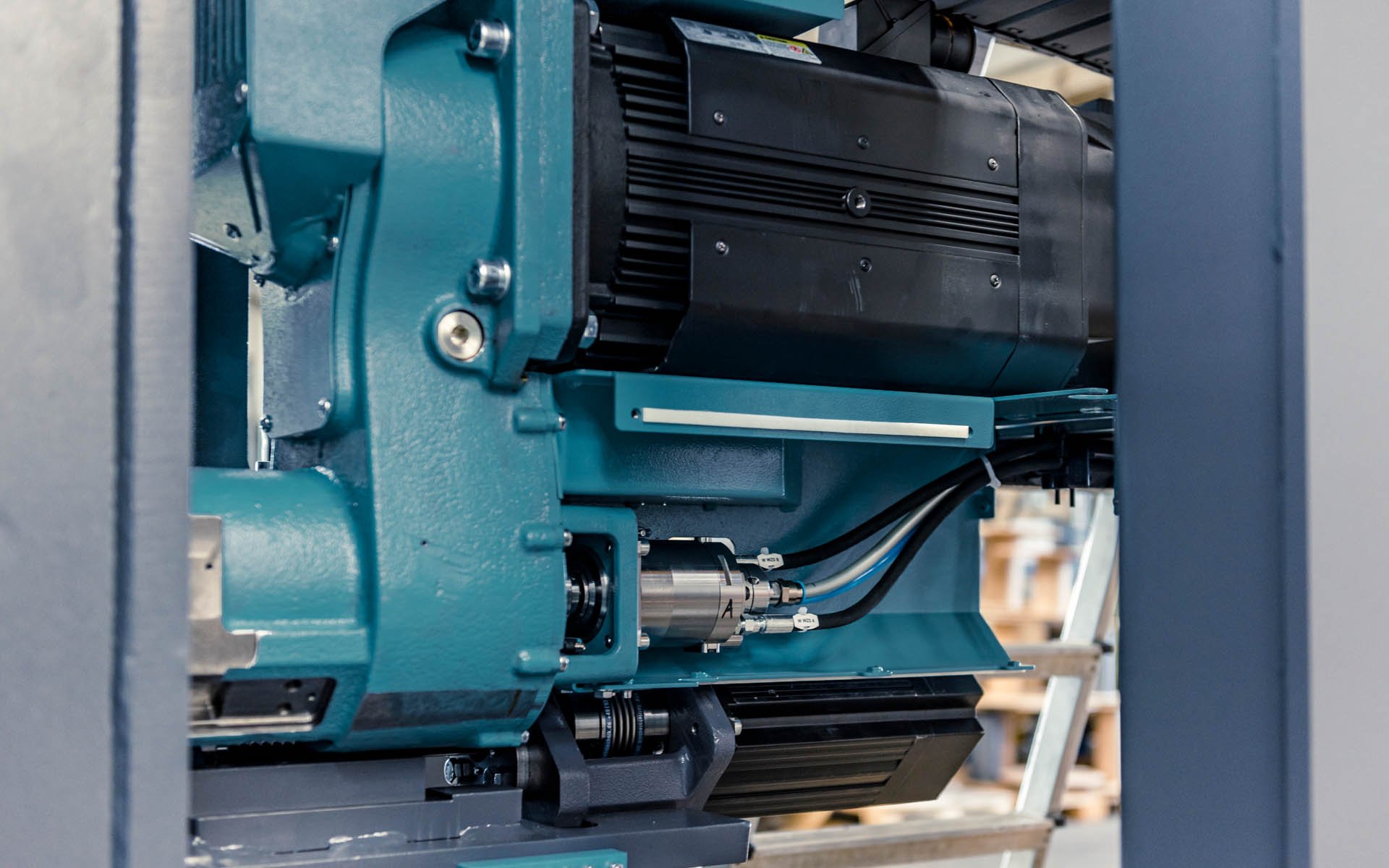

Drill carriages with drill spindles
Robust design for low vibrations and less tool wear
Fast and precise positioning via ball screw drive and servomoters
Technical Data
| Parameter | Value |
|---|
| Working range max /min | 1,350 x 600 / 50 x 5
mm |
| Max. speed | 3500
rpm |
| Max. torque | 544
Nm |
| Tool changer | 3
|
| Cooling | вътрешно + външно
|
| Drill diameter | 6.8 - 50
mm |
| Drill feed, max | 2000
mm/min |
