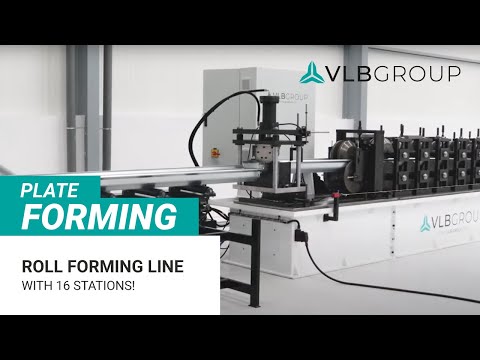

VLB develops, produces and installs roll forming lines and provides technical support. The design of the VLB roll forming machines is based on decades of experience in the sheet metal processing industry.
Common Characteristics
All automatic sheet metal forming lines have been developed in close collaboration with our customers to meet all specifications. In terms of geometry, precision, and stability of the profiled product, but also in terms of productivity and automation needs.
The RF series roll forming lines are fast, accurate, and flexible, allowing sheet thicknesses from 0.3mm to 12mm at sheet widths up to 1400mm.
The VLB sheet metal roll forming machines contain highly innovative solutions. They have proven themselves in a wide range of sectors in construction, logistics, automotive, agriculture, road safety, consumer goods, and much more.
COIL UNWINDING MACHINE
It all starts with an unwinding machine. The VLB program ranges from simple and light to the most robust (20 tons) versions. They have variable-speed laser sensors and powerful integrated coil loading and unloading system.

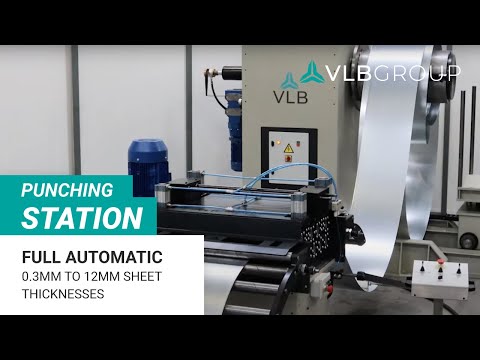

PUNCHING MACHINE
Depending on the specifications of the finished product, a punching machine can be integrated into the roll forming line, either as a compact part of the line or as a standalone station. Although, they are always equipped with servo-controlled drives and touchscreen programming for high accuracy and speed. The tools can be single or multiple, with independent pneumatic drives and CNC programming.

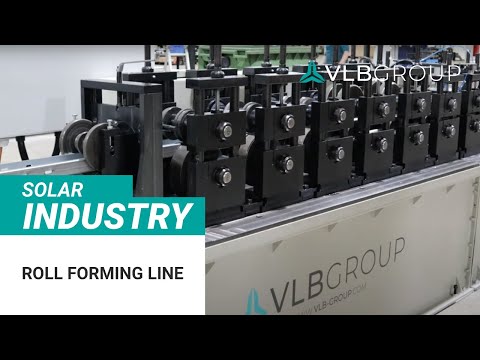

ROLL FORMING STATIONS
The roll forming lines can contain different systems depending on the application and versatility desired by the customer. These can be quick-change cassettes, adjustable tools for producing profiles of different sizes, multiple tools for producing different profiles in the same arrangement, double roller sets with shared motorization, etc.
CUTTING AND UNLOADING PROFILES
The cut can be performed by a stationary saw, which makes the cut during a short stop, or by a high-speed, servo-controlled cutting station. The last-mentioned system allows the production of profiles without stops. In that case, automatic unloading system must be used. It is of course possible to make straight cuts without waste but also cuts at an angle.
The unloading systems are developed customer-specific, such as unloading on both sides in combination with a stacking or pallet table.
