CROSS LINE 4P. LASER MILWAUKEE M12CLL4P-0C - no batteries and charger are included, supplied in Kitbox.
Common Characteristics
M12™ green cross line laser with 4 points, provides an all-in-one functionality with horizontal levelling, vertical alignment, plumb point transfer from floor to ceiling and horizontal point transfer.
High intensity green beams provide a working range of 38 m and up to 100 m with a detector.
Provides all-day run time of 9+ hours with an M12 B3 battery pack.
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport.

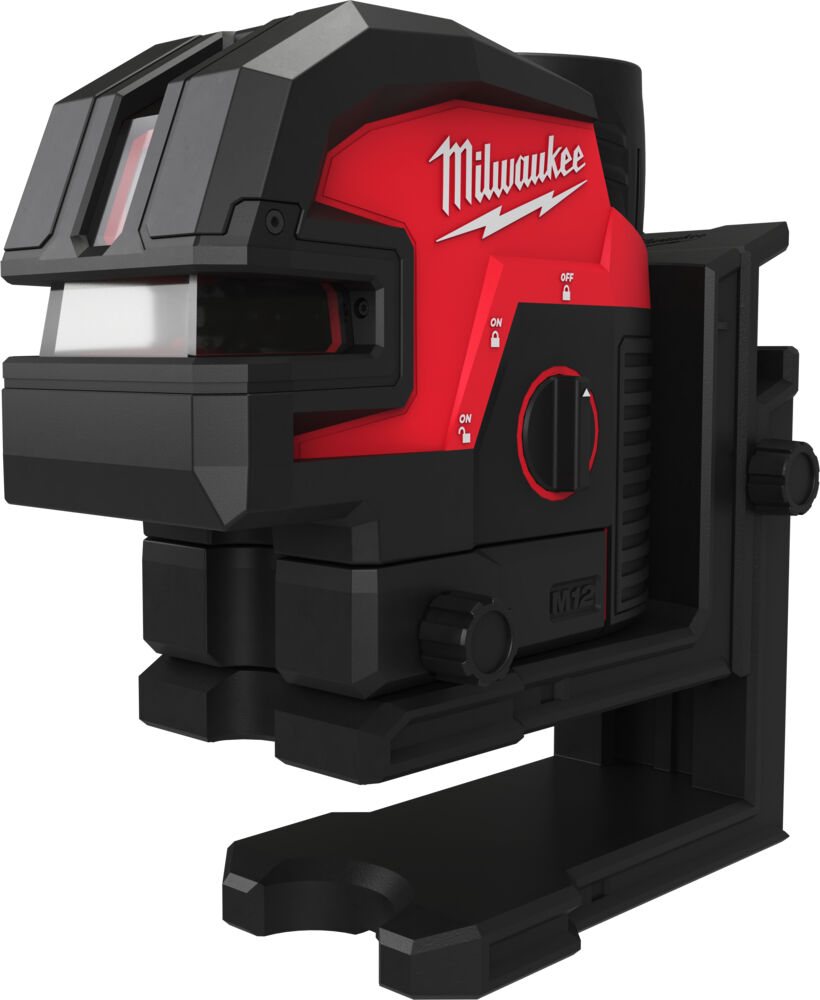

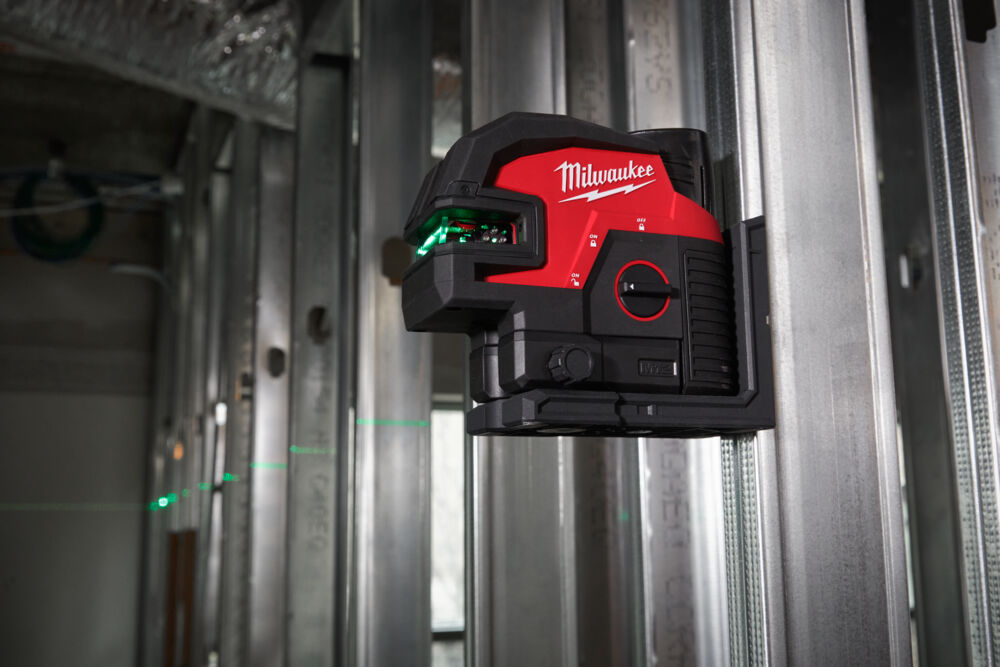

Integrated magnetic bracket with rear mounted amplified rare earth magnets, tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod.
The bracket also provides the laser 360° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment.
Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops.
Flexible battery system: works with all MILWAUKEE® M12™ batteries.
Includes 1x high visibility target plate and 1x track clip.
Technical Data
| Parameter | Value |
|---|
| Max. measurement range | 38
m |
| Laser classification | 2
|
| Accuracy | 0.3 mm/m
|
| Colour of laser line | зелен
|
| Working range detector | 50/10
m |
| Self-levelling range | 4
° |
| Self-levelling time | 3
s |
| Weight | 1.3 (M12B3)
kg |
| IP Protection Class | 54
|
