Percussion drill 18 V, 135 Nm
Common Characteristics
- Higher power efficiency under load - outstanding torque of 135 Nm;

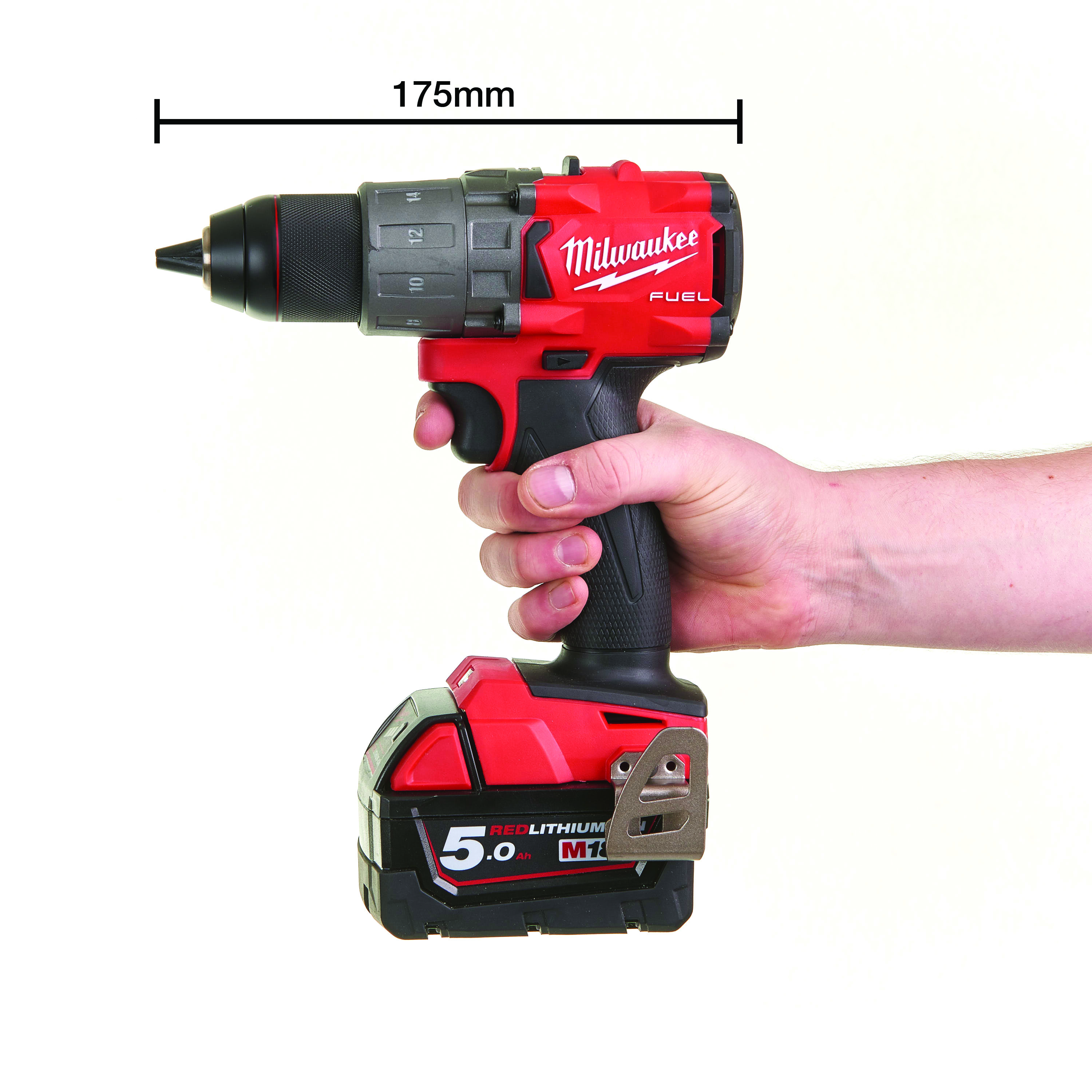

- Extreme compact design of 175 mm length for access into tight spaces;
- Advanced heavy duty chuck providing increased bit grip;
- Milwaukee designed and built brushless POWERSTATE motor for heavy application under load;
- REDLINK PLUS intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load;
- REDLITHIUM-ION battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life;
- Individual battery cell monitoring optimises tool run time and ensures long term pack durability;
- Battery fuel gauge displays remaining charge;
- 40 percent brighter LED workspace illumination - vs previous model;
- All metal reversible belt clip to hang your tool quickly and easily;
- Flexible battery system: works with all Milwaukee M18 batteries.
Technical Data
| Parameter | Value |
|---|
| Voltage | 18
V |
| Battery capacity | Li-Ion,5.0 Ah
|
| Torque | 135
Nm |
| No load speed | 0-550/0-2000
rpm |
| Percussion rate | 0-32000
bpm |
| Max.drilling capacity metal | 16
mm |
| Max.drilling capacity wood | 89
mm |
| Max.drilling capacity masonry | 16
mm |
| Torque adjustment | 2
|
| Weight | 2.2
kg |
