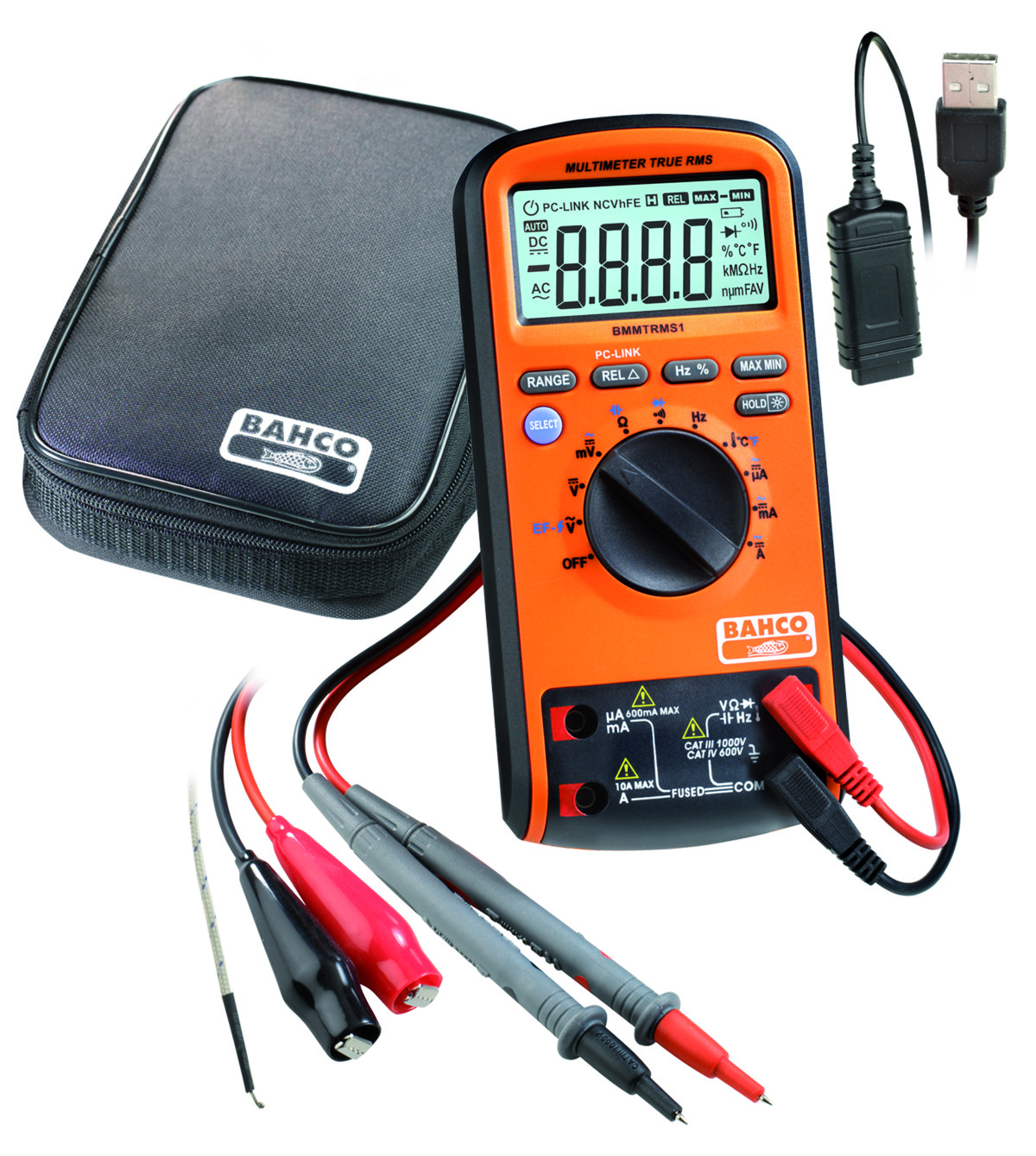

Precise and reliable the Bahco BMMTRMS1 Digital Multimeter is the perfect solution for users looking for a tester easy and safe to use when measuring AC/DC voltage, amperage, frequency, resistance, capacitance, continuity, polarity as well as temperature
Common Characteristics
- Precise and reliable the Bahco BMMTRMS1 Digital Multimeter is the perfect solution for users looking for a tester easy and safe to use when measuring AC/DC voltage, amperage, frequency, resistance, capacitance, continuity, polarity as well as temperature
It includes:
- Multimeter bag with multimeter strap holder
- Needle test silicon probe leads set 1m long : Cat III 1000V, 10A
- Alligator Clips test probe leads sets spring-loaded copper clips with a wide 12.7 mm (0.5 inch) jaw opening and serrated teeth 1m long: Cat III 1000V, 10A
- T° sensor probe lead 1m long
- Multimeter PC Connectivity USB Cable 1.2m long
- USB Memory stick loaded with PC Link connectivity software and user manual in the following 12 languages: English-French-Spanish-Swedish-Turkish-Russian-Portugese-Italian-Greek-Sloven-Czek-Polish
- Calibration report
- 1 battery 6F22(9V) included
Specifications:
- True RMS measurement
- Non Contact Voltage feature
- Relative measurement
- Auto power-off
- Data hold
- Backlight function
- Auto/manual range
- Polarity indication
- Diode test
- Continuity test
- Low battery power indication
- DC Voltage range : 600mV ±0.5%, 6V/60V/600V ±0,8%, 1000V ±1,0%
- AC Voltage range: 600mV/6V/600V ±1,0%, 1000V ±1,5%
- DC Current: 600uA/6mA/60mA/600mA6A/10A ±1,5%
- CAT Rating: CATIII 1,000V CATIV 600V
- Resistance: 600?/6K?/60K?/600K?/6M? ±0,5%, 60M? ±1,5%
- Capacitance: 6nF ±3,0%, 600nF/6uF/60uF/300uF ±5,0%
- Logic Frequency: 10Hz~1MHz ±(0,1%+3)
- Linear Frequency: 10Hz~10KHz ±(0,05%+8)
- Duty cycle: 1%~99%
- Temperature: -55°c~1000°c ±(2%+2)
- Fuses protection: 0,63A/1000Vx1 for µA and mA ranges & 10A/1000Vx1 for 10A range
