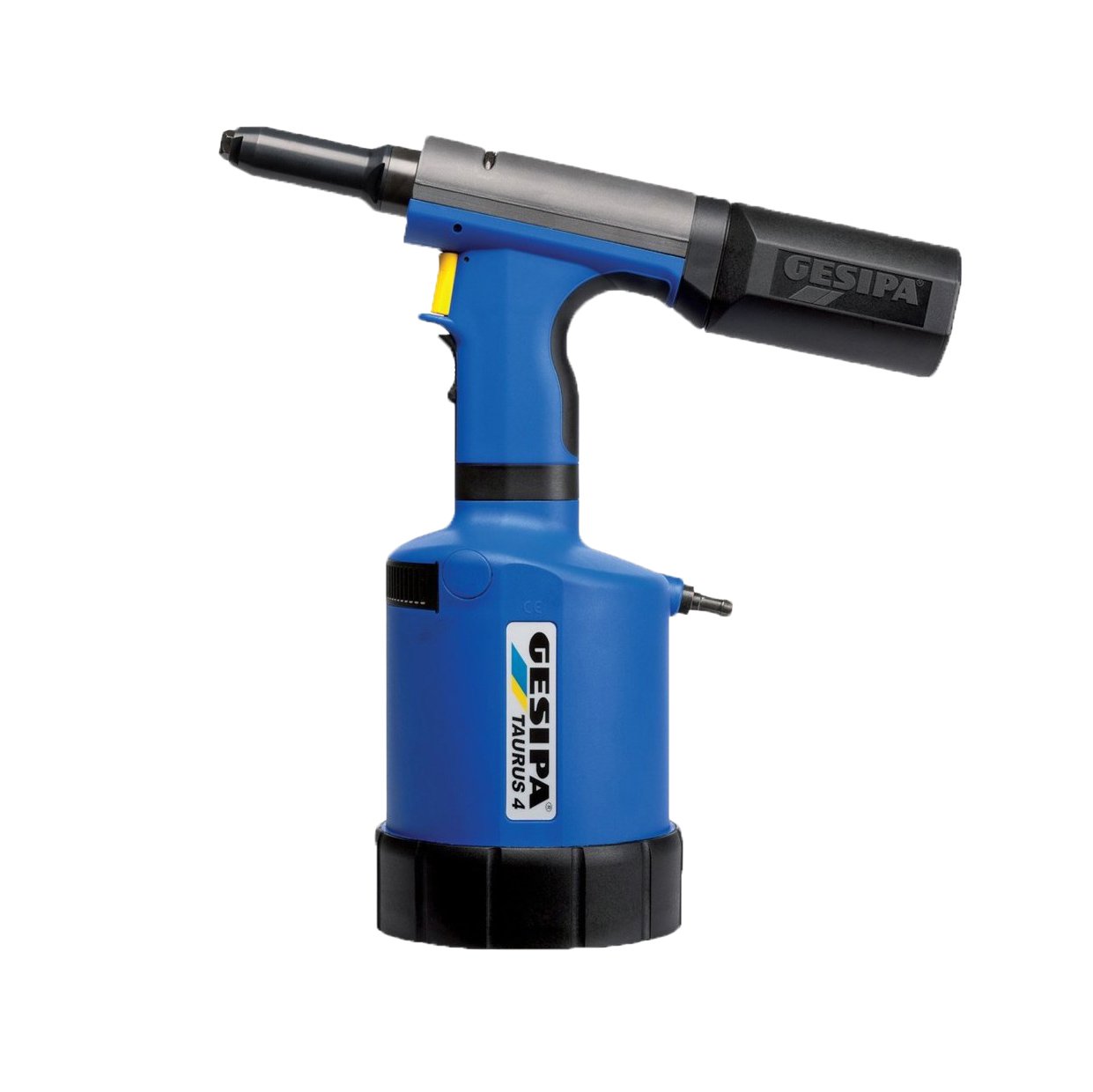

Blind rivet setting tool TAURUS 4 for blind rivets up to 6.4 mm diameter for all materials and up to 8 mm diameter for aluminium.
Common Characteristics
The TAURUS tool series features the unique modular system developed by GESIPA, which keeps the need for stocks of spare parts to a minimum and enables stress-free maintenance, while also providing high setting force in a lightweight tool. Users can therefore customise their TAURUS riveting tools to suit the requirements of each application. The wide range of variants offers users a great deal of flexibility. Compressed air is used twice in the TAURUS series – once for installing the rivet and again for evacuating the spent mandrel. The riveting tools are also equipped with a switchable suction unit by means of a lockable slide switch. The compressed-air-driven TAURUS riveting tools maximise cost-effectiveness while keeping environmental impact to a minimum – a true all-rounder for industry and traders.
Equipment
Nosepieces:17/36, 17/40 and 17/45
maintenance wrench SW12/14, SW14/17
1 hydraulic oil bottle 100 ml
1 oil refill can
Operating instructions with spare parts list
Warranty: 2 years
Technical Data
| Parameter | Value |
|---|
| Weight | 2.0
kg |
| Working range for all materials | 4.8-6.4
mm |
| Working range alu | 4.8-8.0
mm |
| Working range steel | 4.8-6.4
mm |
| Air consumption | 4.8
l за гайка/нит |
| Air hose connection | 6
mm |
| Setting stroke | 23 000
N при 6 bar |
| Stroke | 19
mm |
| Operating pressure (min) | 5
bar |
| Operating pressure (max) | 7
bar |
