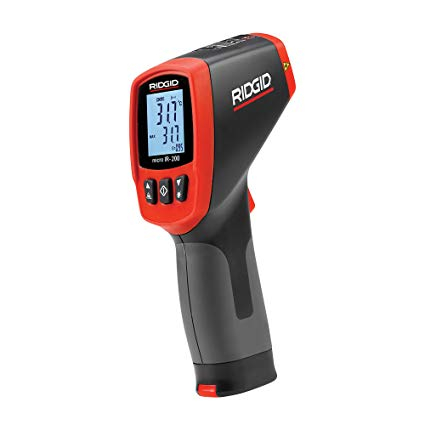

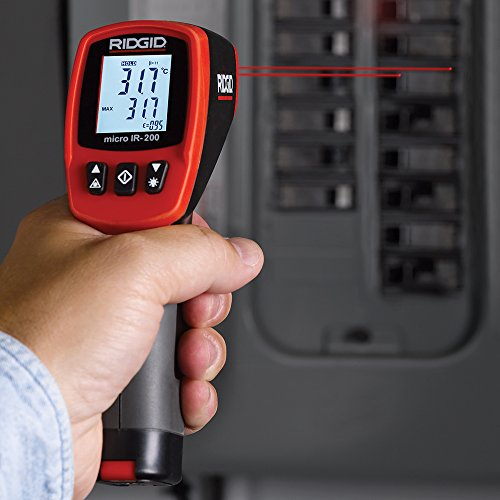

The RIDGID® micro IR-200 Non-Contact Infrared Thermometer provides simple, quick and accurate surface temperature readings at the push of a button. Simply squeeze the trigger and point the ultra-sharp dual class II lasers at the surface being measured. The micro IR-100 provides an immediate temperature measurement on a clear, easy-to-read backlit LCD display. In addition to numerous other uses, this rugged and compact instrument enables professional tradesman to diagnose heating and ventilation problems, perform preventative monitoring of electrical motors and systems, troubleshoot steam traps and quickly check fuses or circuit breakers for overheating – all without contact.
Common Characteristics
Temperature Range -58° to 2192°F (-50° to 1200°C)
Measurement Accuracy 58°F to 68°F (-50°C to 20°C) ±4.5°F (2.5°C); 68°F ~2192°F (20°C ~1200°C); ±1.0% or ±1.8°F (1.0°C)
Distance To Spot Ratio 30 to 1
Response Time <150ms
Emissivity Adjustable, 0.10 - 1.00
Temperature Display Current Temperature, MAX Temperature
Measurement Units Fahrenheit, Celsius
Power Source Battery (1 x “9V”) Included
Technical Data
Parameter | Value |
---|
Temperature Range | -50 - 1200
градуси C |
Measurement Accuracy | ± 2,5
градуси C |
Distance To Spot Ratio | 30 : 1
|
Response Time | <150ms
|
Emissivity | 0,10 - 1,00
|
Measurement Units | Фаренхайт, Целзий
|
Power Source | 9 V
batteries |
