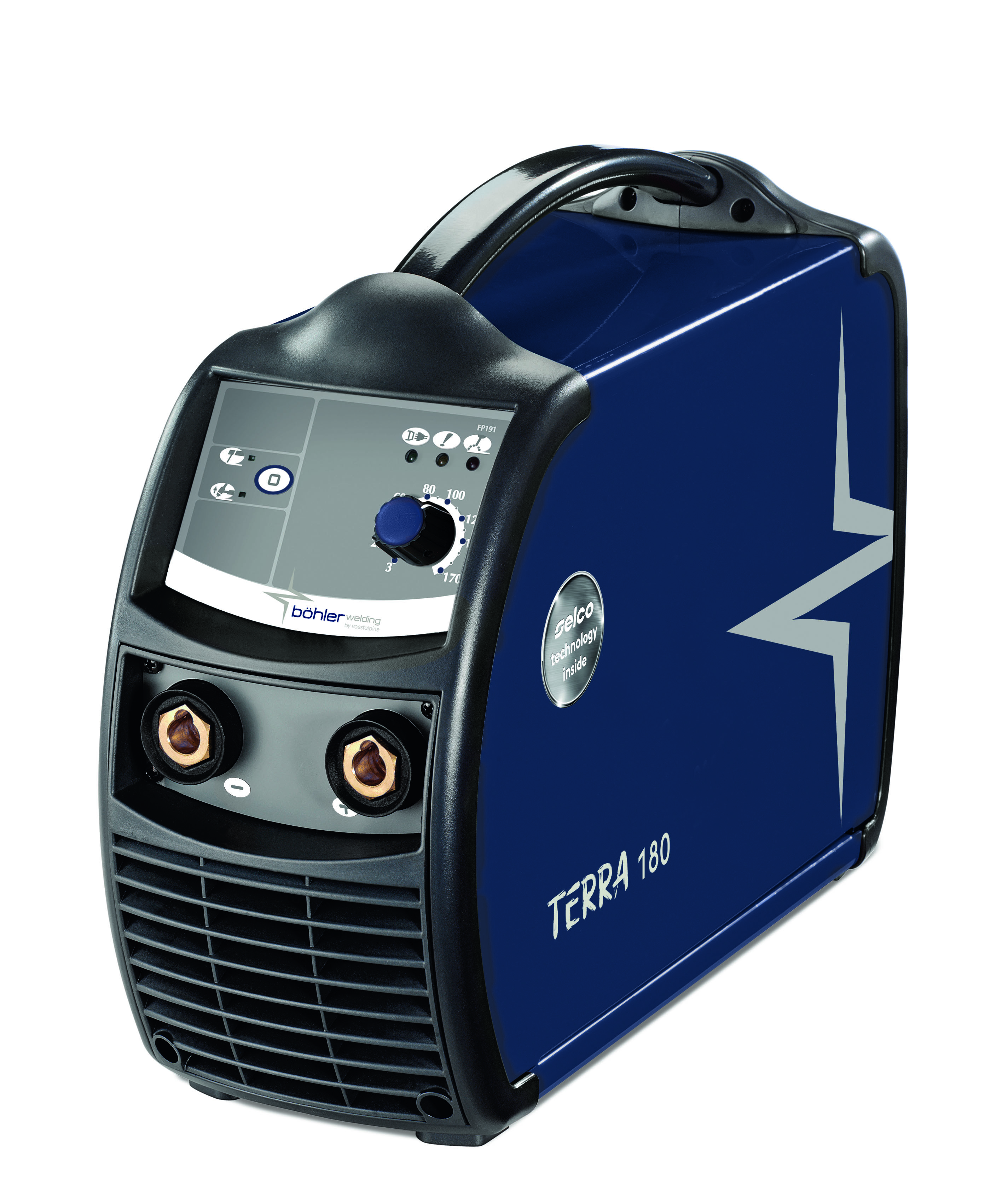

TERRA 180 MMA monophas Inverter
Common Characteristics
New generation advanced inverter technology power source for high speed dynamic arc control and superior welding performance
Heavy duty and enviromental conditions, high service life
Reduced dimensions and compact construction
High temperature, shockproof, abrasion resistant plastic case
Air flow ducting and fully encapsulated PC board to avoid dust contamination
Linear controlled fan on demand
Excellent performances also with long power supply extension cables
Ideal for stick welding with multiple types of popular electrodes
Built-in adjustable arc control features (hot start, arc force, antisticking)
Reduced electromagnetic interference with lift start TIG welding
Current socket (panel) 50/70mm
Technical Data
| Parameter | Value |
|---|
| Voltage (50/60 Hz) | 1х230
V |
| Slow blow line fuse | 16
A |
| Adjustment range MMA | 3-170
A |
| Duty cycle MMA - 35 % | 170
A |
| Duty cycle MMA - 60 % | 150
A |
| Duty cycle MMA - 100 % | 120
A |
| IP protection rate | 23
S |
| Dimensions | 410х150х330
mm |
| Weight | 8.0
kg |
