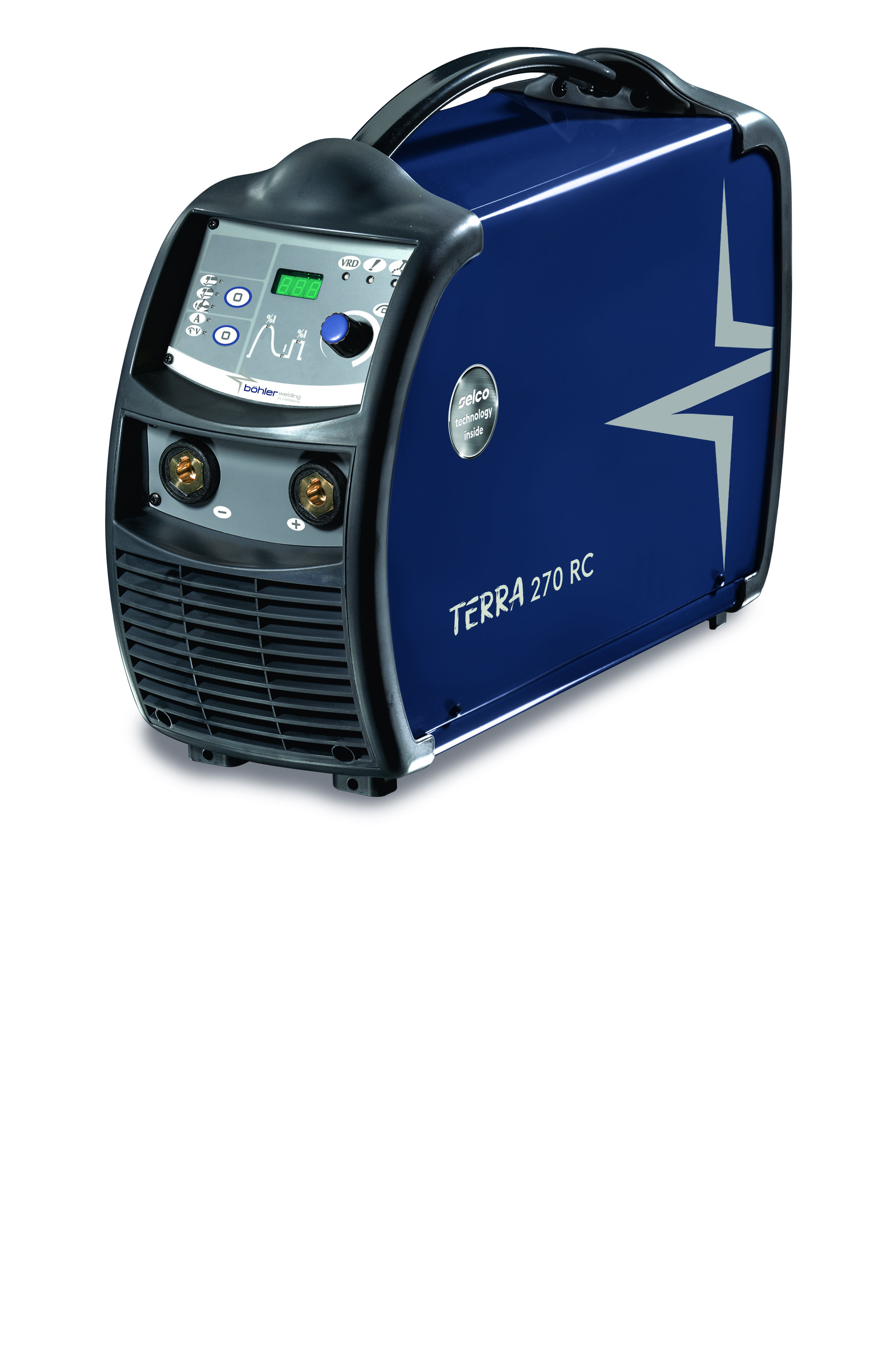

Inverter TERRA 270 RC compatible with remote control
Common Characteristics
New generation inverter technology power source: superiore dinamica d'arco e migliori prestazioni in saldatura
High power at 100% of duty cycle
Heavy duty and enviromental conditions, high service life
Selco CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
Software based controls can be upgraded as new features become available (TERRA 270 RC)
High temperature, shockproof, abrasion resistant plastic case
Air flow ducting and fully encapsulated PC board to avoid dust contamination
Excellent performances also with long power supply extension cables
Pannello comandi digitale full optional e di facile regolazione (TERRA 270 RC)
Lettura digitale dei parametri di saldatura (TERRA 270 RC)
Memorizzazione allo spegnimento delle ultime impostazioni di lavoro (TERRA 270 RC)
Ideal for stick welding with multiple types of popular electrodes
Built-in adjustable arc control features (hot start, arc force, antisticking)
Reduced electromagnetic interference with lift start TIG welding
Remote control compatible (TERRA 270 RC)
Current socket (panel) 50/70mm?
Technical Data
| Parameter | Value |
|---|
| Voltage (50/60 Hz) | 3х400
V |
| Slow blow line fuse | 16
A |
| Adjustment range MMA | 3-270
A |
| Duty cycle MMA - 40 % | 270
A |
| Duty cycle MMA - 60 % | 255
A |
| Duty cycle MMA - 100 % | 240
A |
| IP protection rate | 23
S |
| Dimensions | 500х190х400
mm |
| Weight | 16.1
kg |
