Inverter power source for MMA and TIG LIFT welding.Stong and robust construction. Portable everywhere.
Common Characteristics

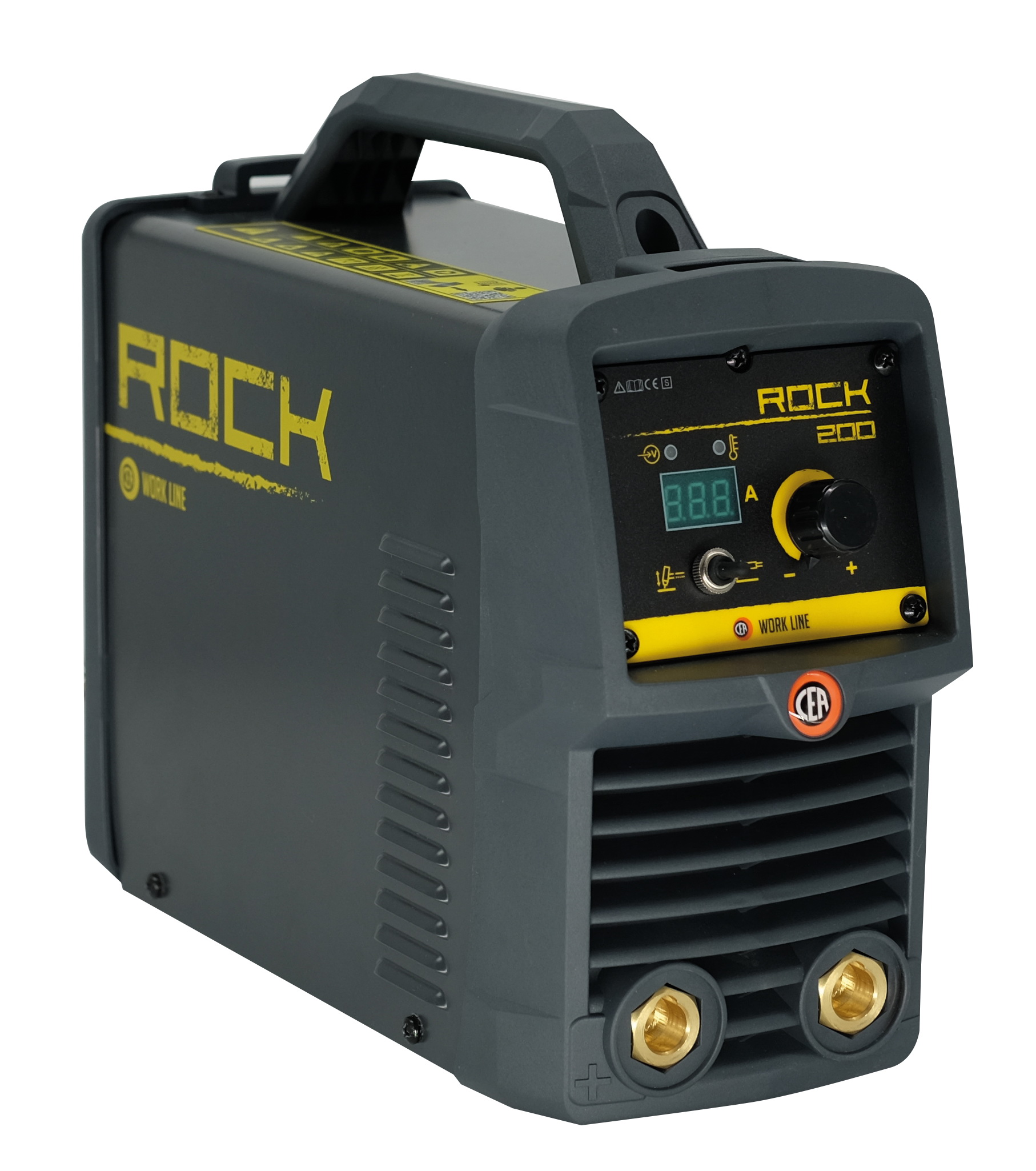

ROCK 160 and 200 are the latest generation of inverter power sources, built in a strong and robust chassis.
They are perfect for any professional use with any type of basic and rutile electrodes for maintenance and light fabrication works.
The high welding characteristics in MMA and TIG welding with “Lift” mode arc striking, coupled with IP 23 protection class, enable their use in any work environment.
ROCK’s are equipped with ergonomic handle, carrying belt for easy transportation and standard supplied with electrode-holder and ground clamp cables.
Excellent welding characteristics with any type of basic and rutile electrode 2 available welding processes: MMA - TIG lift
Possibility to work with adequate size power generator sets
Shock-proof fibre compound main structure
Control panel protected against accidental impact
Easy-to-carry thanks to their reduced weight and dimension
Carrying belt and ergonomic handle for easy transportation ? Input Voltage fluctuation compensation for high arc stability ? Low energy consumption and high electrical efficiency
Automatic Hot Start to improve the arc striking with the most difficult electrodes
Built-in Arc Force to automatically select the best welding arc dynamics
Electrode Anti-sticking function

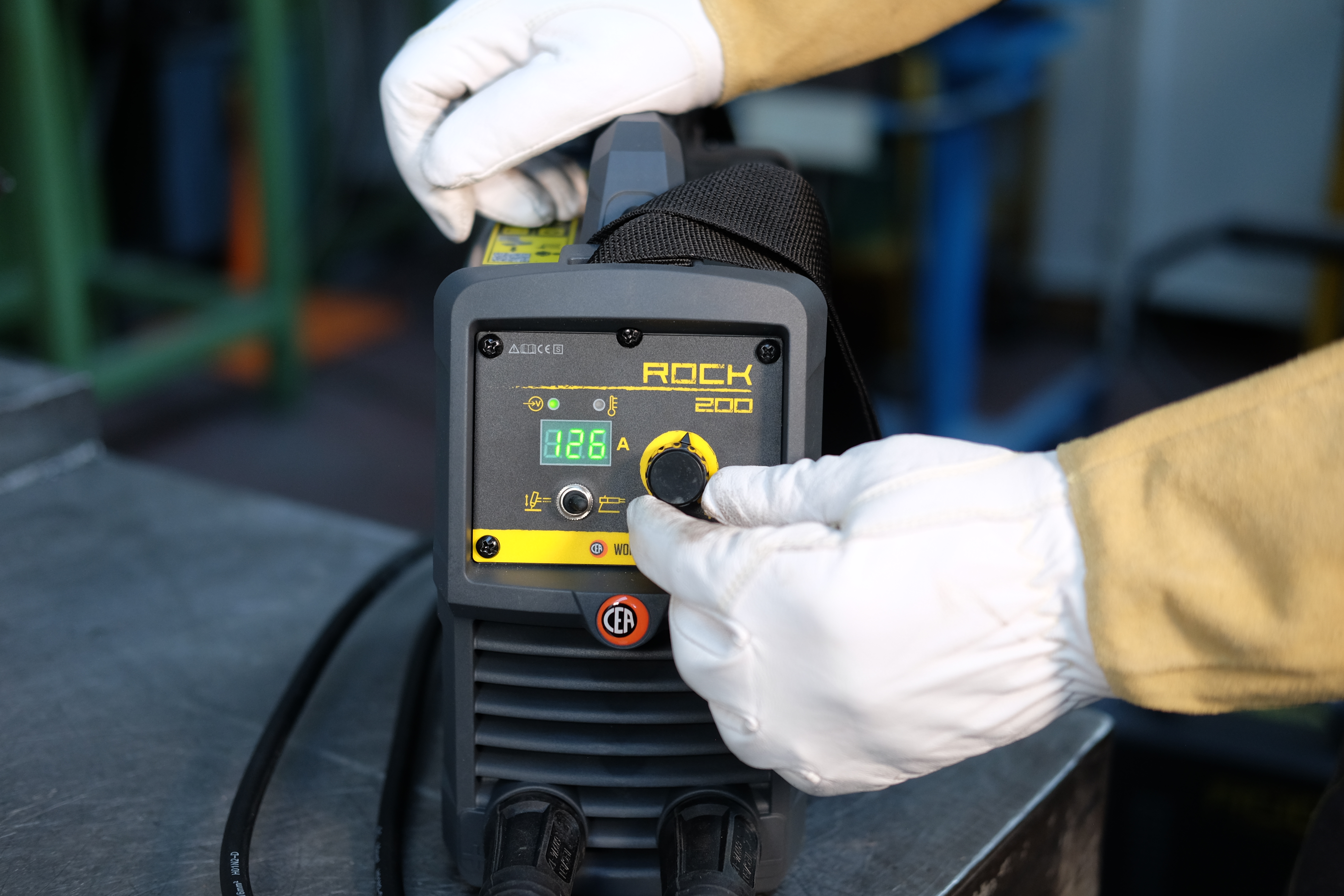

Welding current electronic adjustment
Display for a clear identification of the set values
Mains voltage LED
Thermostatic protection LED

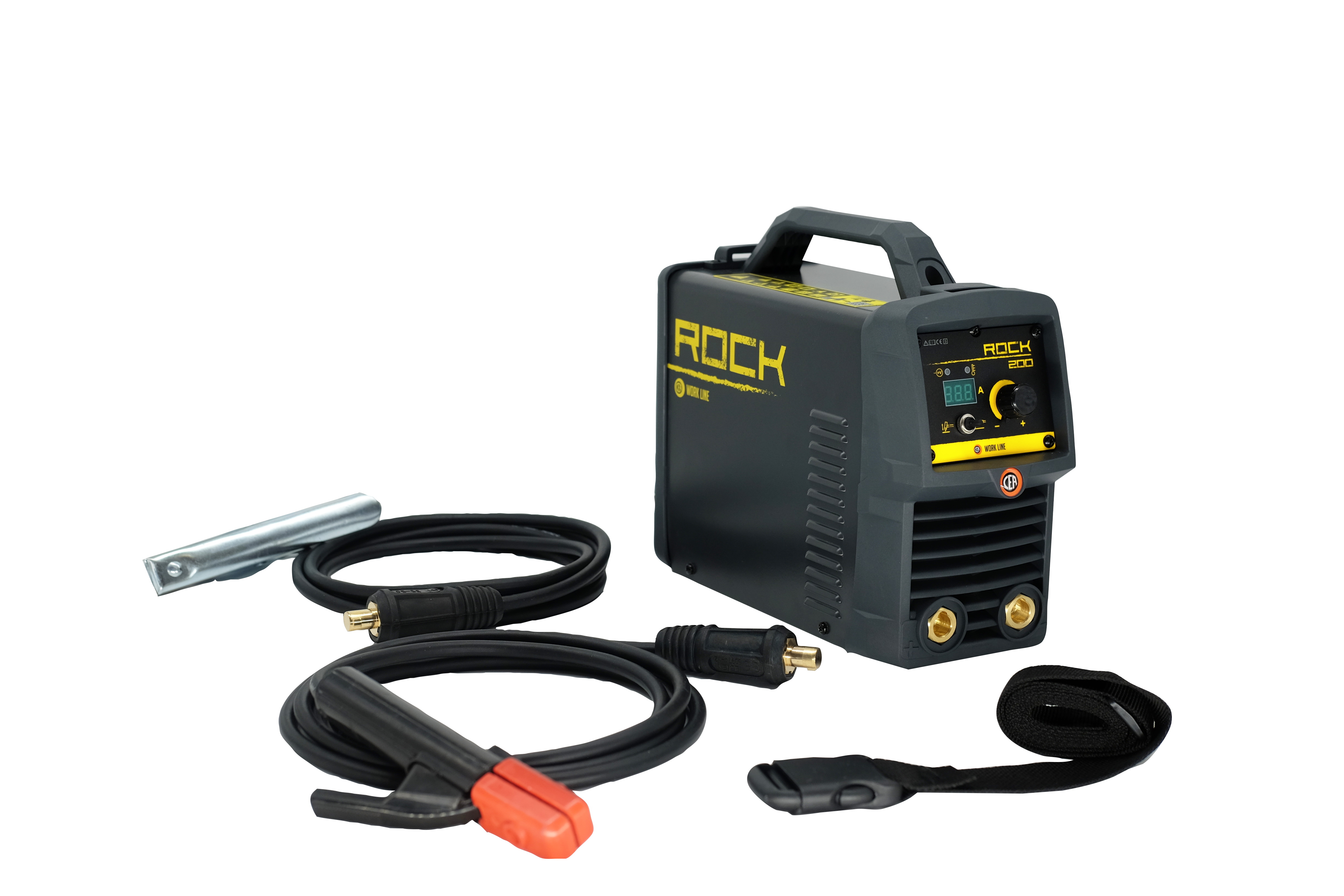

* Standard supplied with cables with electrode-holder pincer, ground clamp and carrying belt.
ACCESSORIES:
Bag for power source and accessories
RTX TIG Torch with built-in gas valve
Technical Data
Parameter | Value |
---|
Single phase input 50/60 Hz | 230
V |
Input Power @ I2 Max | 10.4
kVA |
Delayed Fuse (l eff) | 16
A |
Power Factor / cos ? | 0.67/0.99
|
Efficiency Degree | 0.81
|
Open circuit voltage | 72
V |
Current range | 10-200
A |
Duty cycle at (40°C) 100% | 105
A |
Duty cycle at (40°C) 60% | 110
A |
Duty cycle at (40°C) 20% | 200
A |
Protection Class | 23 S
IP |
Dimensions | 315x135x260
mm |
Weight | 4.6
kg |
