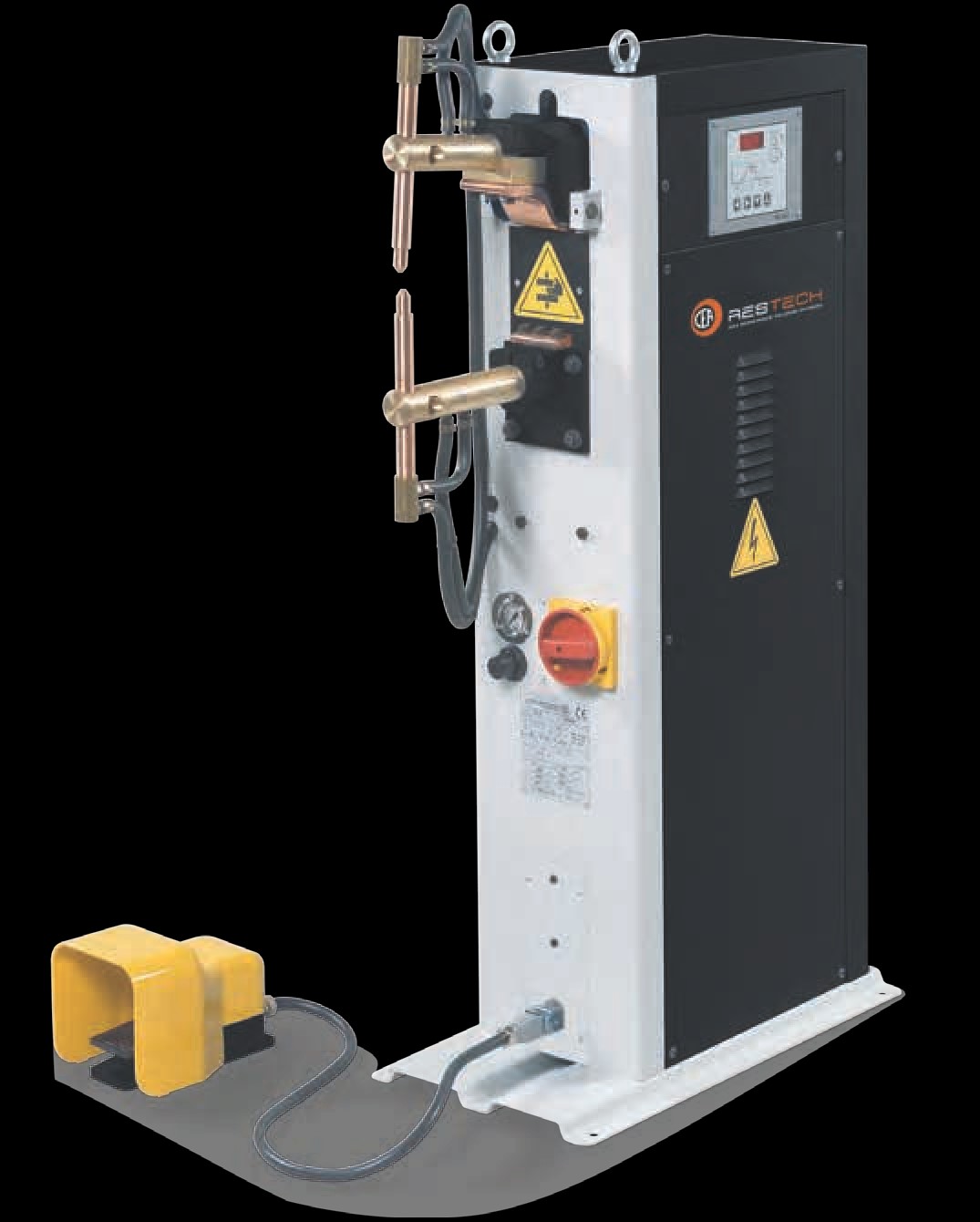

ROCKER ARM SPOT WELDERS WITH ADJUSTABLE ARM LENGTH.
Common Characteristics
Z and ZP series resistance spot welders, versatile, robust and easy-to-use, ensure best welding results on any weldable metal and are the most ideal solution for all spot welding applications.
ZP are pneumatically operated by electric pedal.
Features:
Excellent welding on all weldable metals
Welding current and time electronic adjustments
Synchronous ignition SCR group with phase shift welding current adjustment to eliminate initial transient
Reduced consumption
Water cooled arms
Water cooled copper electrodeholders with adjustable height
Self-lubricated pneumatic components to eliminate oil deposits and to safeguard the
environment from contaminants.
High versatility thanks to all different possible work configurations
Technical Data
| Parameter | Value |
|---|
| Single phase input50/60 Hz | 400
V |
| Nominal maximum power | 25
kVA |
| Max. welding power | 41.6
kVA |
| Installed power | 14
kVA |
| Cross section connecting cables | 10
mm2 |
| Fuse(delayed action) | 40
A |
| Secondary voltage | 3.5
V |
| Secondary short circuit current | 13.8
kA |
| Max.welding current | 11
kA |
| Electrode force at 600kPa (6bar) | 13.8
kA |
| Electrode force at 600kPa (6bar) | 300
daN |
| Water consumption at 300kPa(3bar) | 3.8
l/min |
| Uspetting force | 760х330х1200
daN |
| Max. capacity on mild steel | 118
mm2 |
