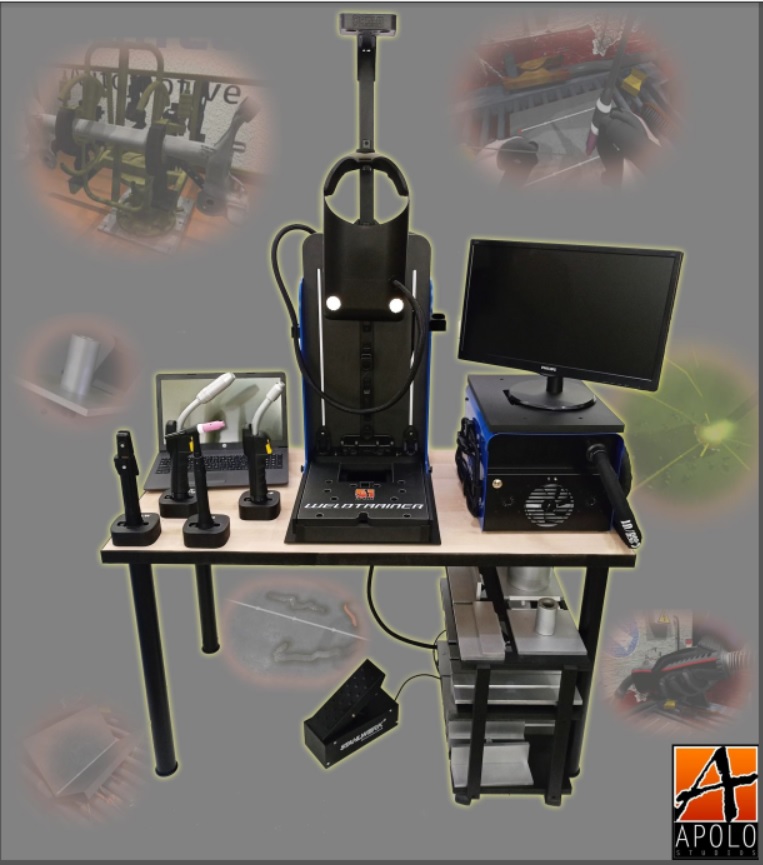

Weldtrainer Compact version is a welding simulator designed to both train inexperienced welders and improve the skills of experienced welders.
Common Characteristics

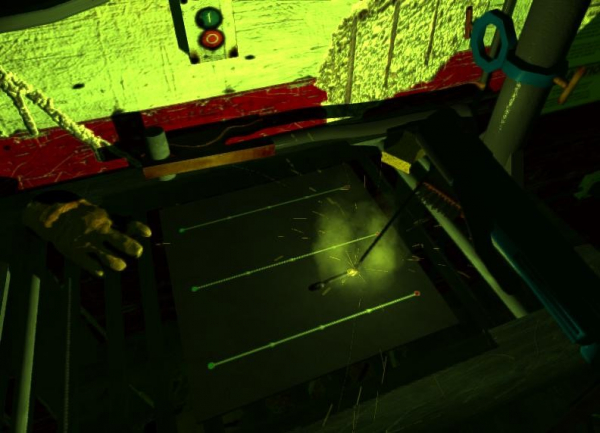

The system is based on virtual reality with a very high precision and realism, recreating a virtual workplace that you control using the mask and tools in real time. It is effective for various types of welding processes MMA, MIG/MAG, TIG
Equipment:
- Аuxiliary table for storing the special welding samples.
- 14 welding samples
- Sensor system - developed on the basis of magnetic technology. It allows the positioning to be controlled with a high accuracy.
- Audiovisual system (Welding mask) with integrated full HD display. Clear visibility with no color or image distortion. Volume control. The mask design with 100% eye strain free visualization. Integrated audion with volume control. Usable for users wearing glasses.
- Replaceable torches - welding torches for different types of welding (MMA, MIG/MAG, TIG).
- Haptic system on error.
- Infrared system for positioning the mask.
- Main unit.
- PC for the instructor. Connects via Ethernet.
Software features – the system simulates MMA, MIG/MAG, TIG welding.
Depending on the process, parameters such as intensity, polarity, electrode orientation, voltage, wire feed speed, gas flow rate, wire diameter, 2-4-stroke operation can be changed.
Control of the welding parameters - they are controlled by displaying an error message, as well as with the corresponding vibration
Analysis of the results - after completing the exercise, the system generate a report on the individual welding parameters.
The system can work with a left or right hand, it has integrated theoretical tests that can be used in the learning process.
