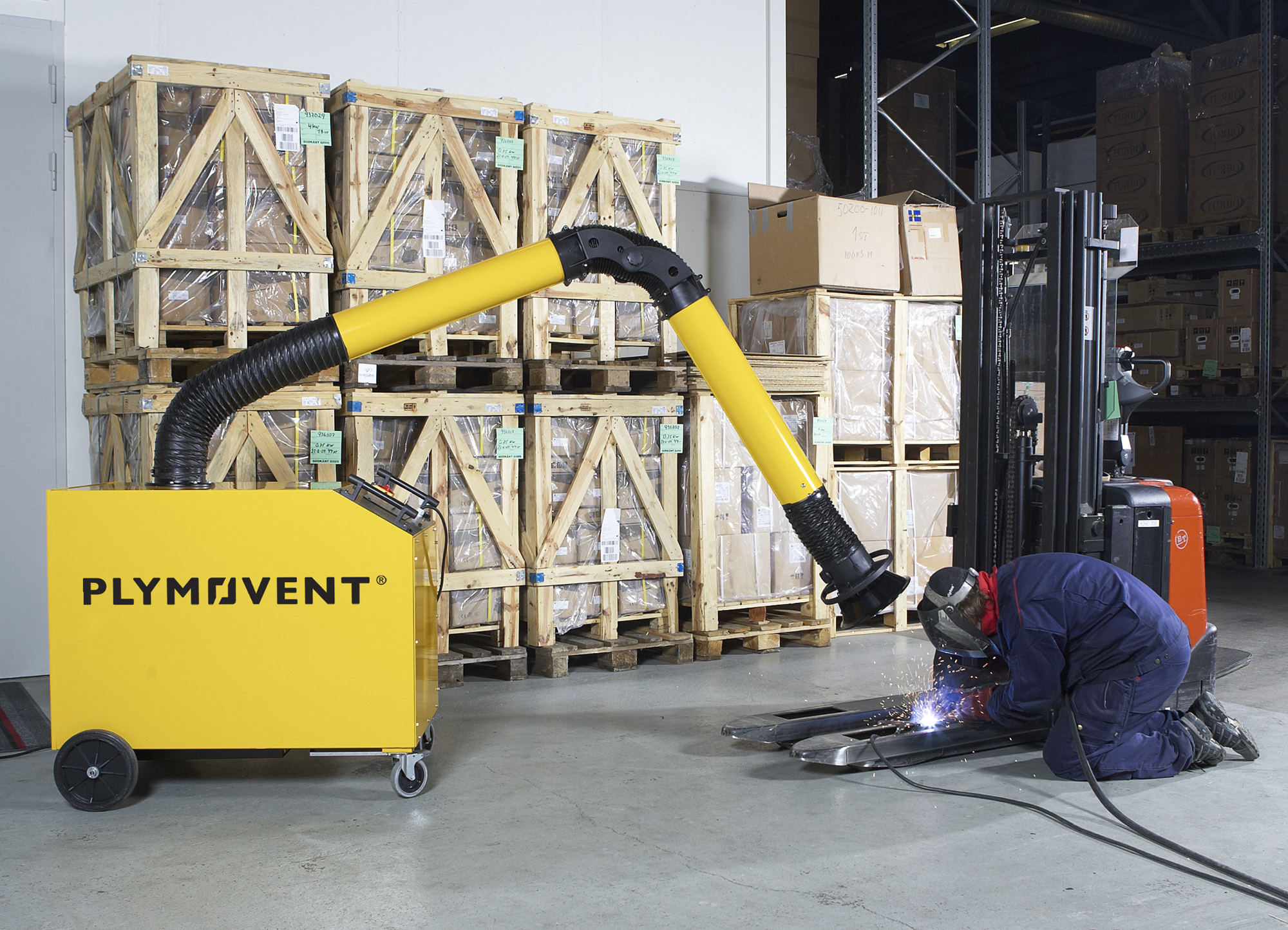

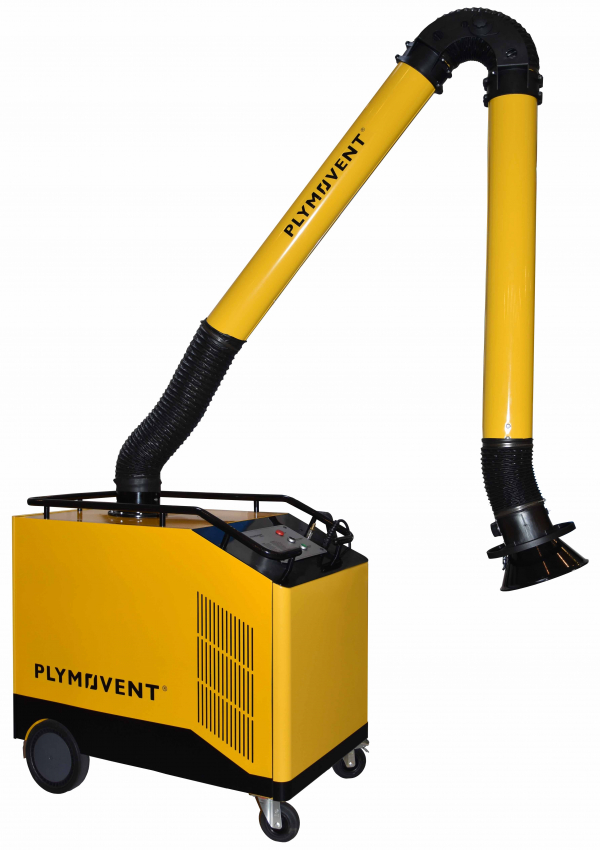

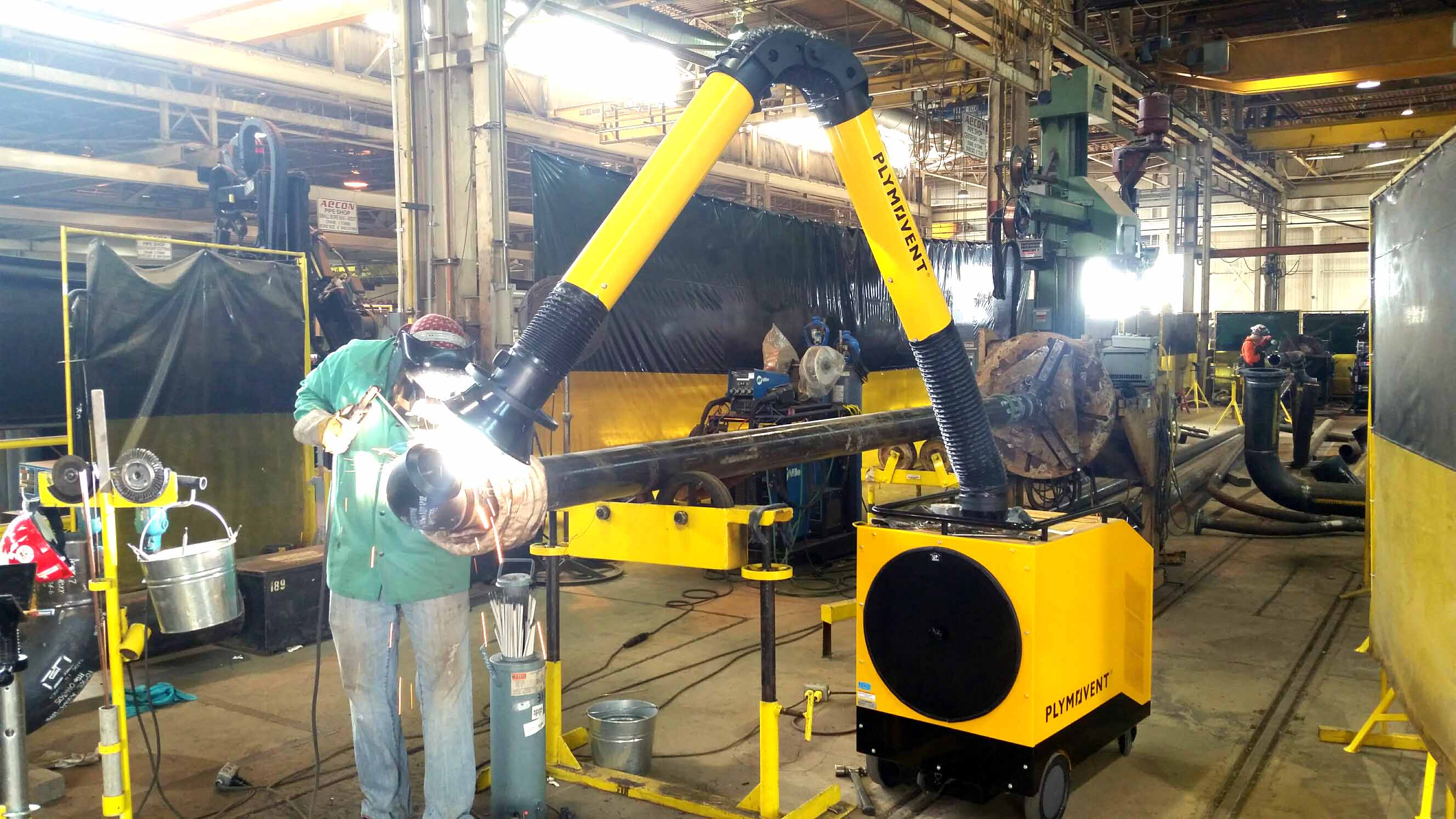

The MobilePro is a welding fume extractor for professional welders that need a flexible solution
Common Characteristics
The MobilePro is a mobile welding fume filter with built-in
fan. The highly efficient filter cartridge is self-cleaning by
the integrated RamAir™ pulse amplifier, based on
external compressed air supply. Dust collection in the
dust tray at the bottom of the unit. Thanks to the four
transport wheels (two of which are swivel casters), the
MobilePro is suitable for use in relatively small facilities or
near sources of pollution without a fixed location.
The filter cleaning system can be activated in two ways:
• automatically (pressure controlled)
• manually by a push button on the control panel
The MobilePro is available with two types of extraction
arm:
• EA (EconomyArm) | Hose tube arm
• KUA | Metal tube arm
Technical Data
Parameter | Value |
---|
Dimensions(LxWxH) | 1024x646x1150
mm |
Weight | 185
kg |
Filter surface area | 20
m2 |
Connection voltage | 230/50
V/Hz |
Power consumption: | 1.1
kW |
Noise level | 72
dB |
Air volume | 1200
m3/h |
